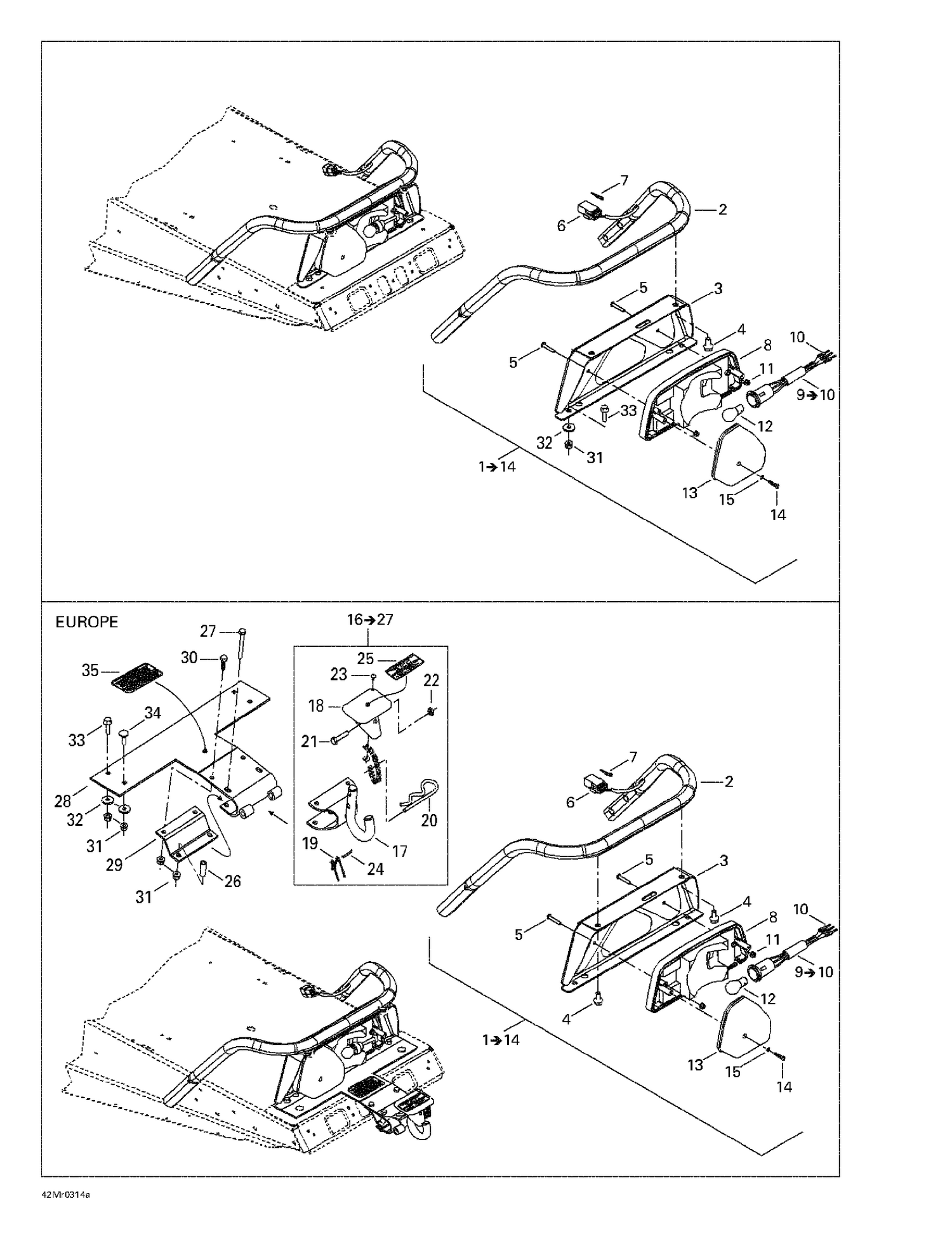

09- Luggage Rack
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 511000186 | Rack |
| 3 | 511000187 | REAR LIGHT SUPPORT - Call your local BRP dealership |
| 4 | 207681644 | Hex. Flange Screw M8 X 16 |
| 5 | 205453046 | SCREW M5 X 30 - Call your local BRP dealership |
| 6 | 515175494 | Male Housing, 3 Circuits |
| 7 | 515175232 | Male Terminal |
| 8 | 515175397 | LAMP HOUSING - Call your local BRP dealership |
| 10 | 515175232 | Male Terminal |
| 11 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 12 | 520000758 | Bulb This part replaces 410504100. |
| 13 | 414513700 | Lens |
| 14 | 209632540 | Phillips Tapping Screw M3.9 X 25 |
| 15 | 414516400 | Washer - Call your local BRP dealership |
| 17 | 517199300 | Hitch |
| 18 | 517152700 | Hitch Protector |
| 19 | 517152800 | SPRING - Call your local BRP dealership |
| 20 | 114045200 | Hair Pin |
| 21 | 207063044 | Hex. Screw M6 X 30 |
| 22 | 232561414 | Elastic Stop Nut M6 |
| 23 | 390409400 | RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 24 | 732804000 | SPRING PIN M3 X 24 - Call your local BRP dealership |
| 25 | 516001243 | Security Label, Hitch |
| 33 | 207662544 | Hex. Flange Screw M6 X 25 |
| 515175234 | Cosse | Male 515175234 |
