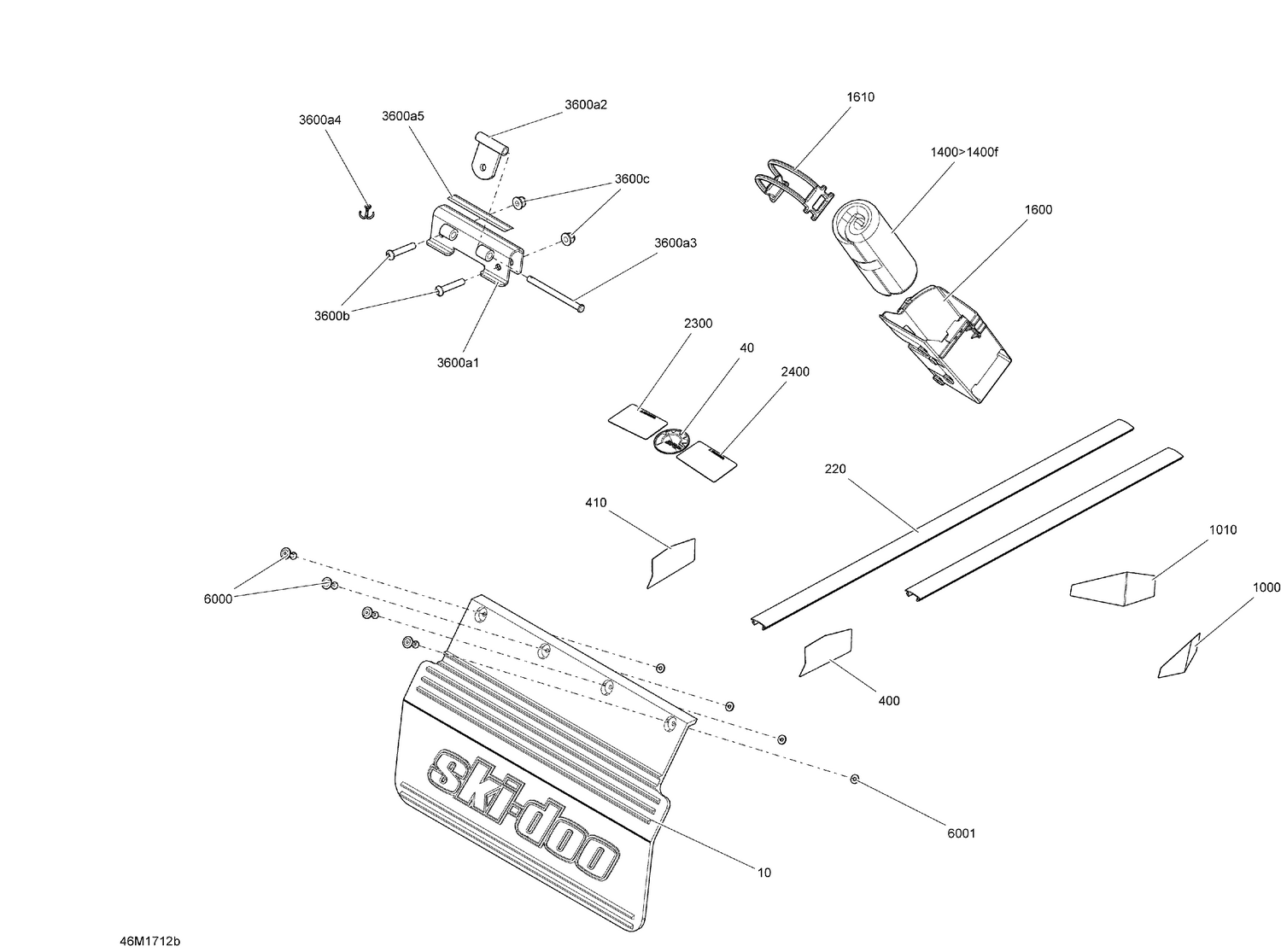

09- Utilities - All Models
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520000949 | Snow Guard |
| 40 | 516008738 | BRP Logo 48mm This part replaces 516006887. |
| 220 | 520000829 | Radiator Trim |
| 400 | 520000881 | Red, RH Rear Reflector |
| 410 | 520000880 | Red, LH Rear Reflector |
| 1000 | 520000718 | Yellow, RH Front Reflector |
| 1010 | 520000719 | Yellow, LH Front Reflector |
| 1400a | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 1400b | 529000046 | Set Key, 16/21 mm |
| 1400c | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 1400d | 219704403 | Was 412500100 Rope-Starter |
| 1400e | 529000060 | Starter Grip |
| 1400f | 520001499 | Wrench |
| 1600 | 520000894 | Tool Kit Rack |
| 1610 | 520000528 | Latch |
| 2300 | 516006908 | Warning Decal |
| 2400 | 516005587 | RH Warning Decal, Safety |
| 3600a1 | 511000768 | Support |
| 3600a2 | 511000521 | Hitch Plate Welded |
| 3600a3 | 511001451 | Lock Pin This part replaces 511000520. |
| 3600a4 | 371800200 | Cotter Pin |
| 3600a5 | 516004568 | WARNING DECAL, SECURITY - Call your local BRP dealership |
| 3600b | 205484546 | Socket Head Screw M8 X 45 |
| 3600c | 233281466 | Elastic Flange Nut M8 |
| 6000 | 293150101 | Pop Rivet 3/16” This part replaces 293150101. |
| 6000 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
