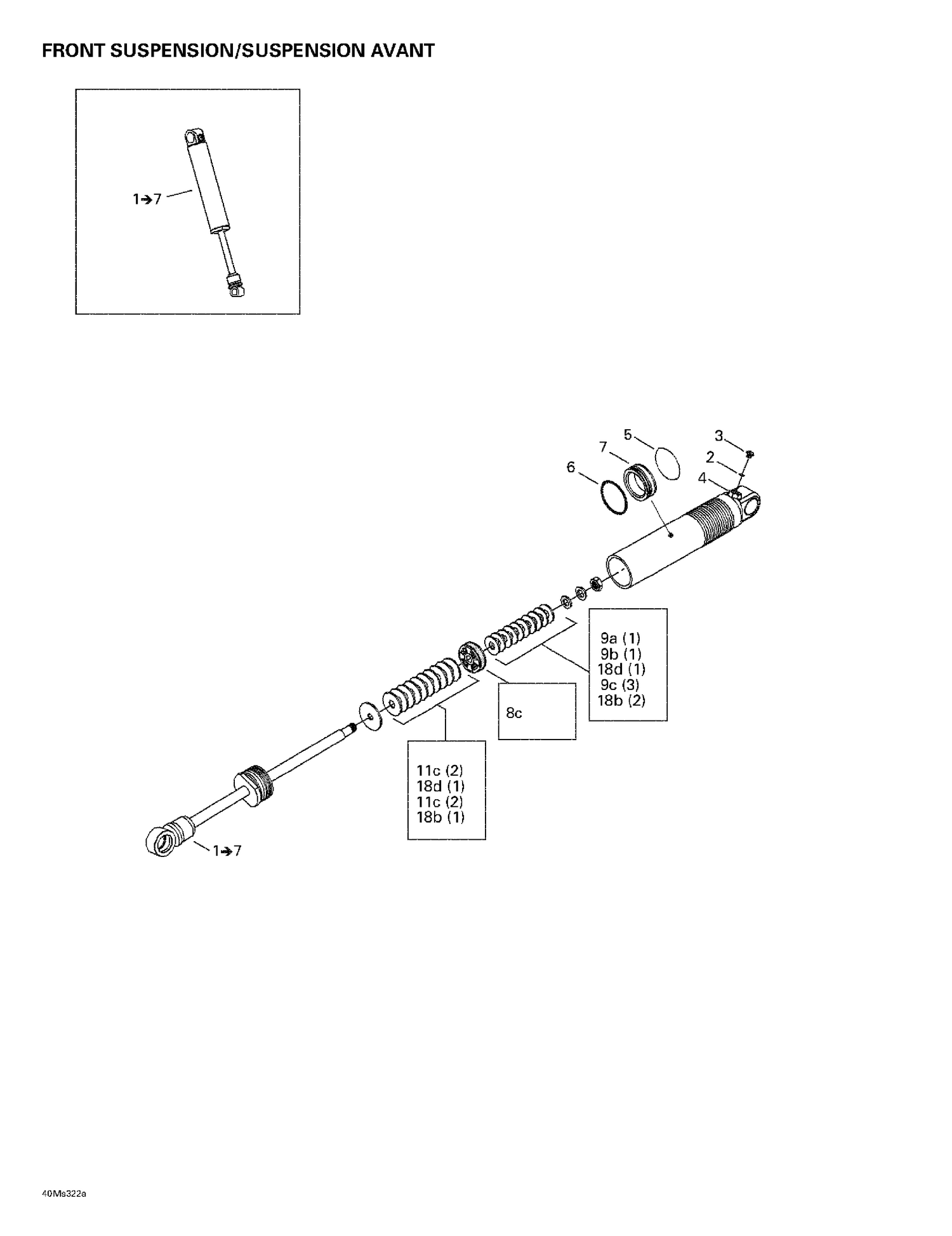

07- Front Take Apart Shocks
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 505070400 | O-Ring |
| 3 | 505070399 | Screw |
| 4 | 505070398 | Air Valve |
| 5 | 503189308 | Piston Ring |
| 6 | 414888312 | O-Ring |
| 7 | 503189309 | FREE PISTON - Call your local BRP dealership |
| 8A | 414888307 | Piston (2 X 0.3-6) (C36) |
| 8B | 414888306 | Piston (2 X 0.3-4) (C36) |
| 8C | 414888305 | Piston (2 X 0.3-2) (C36) |
| 8D | 414888304 | Piston (C36) |
| 9A | 415039100 | Leaf Valve Ø30 X 0.254 (C36) |
| 9B | 414888318 | Leaf Valve Ø30 X 0.203 (C36) |
| 9C | 414888319 | Leaf Valve Ø30 X 0.152 (C36) |
| 10A | 414888320 | Leaf Valve Ø28 X 0.203 (C36) |
| 10B | 414888321 | Leaf Valve Ø28 X 0.152 (C36) |
| 11A | 415039000 | Leaf Valve Ø26 X 0.254 (C36) |
| 11B | 414888322 | Leaf Valve Ø26 X 0.203 (C36) |
| 11C | 414888323 | Leaf Valve Ø26 X 0.152 (C36) |
| 12A | 414888324 | Leaf Valve Ø22 X 0.203 (C36) |
| 12B | 414888325 | Leaf Valve Ø22 X 0.152 (C36) |
| 13A | 414888340 | Leaf Valve Ø21 X 0.114 (C36) |
| 14A | 414888326 | Leaf Valve Ø20 X 0.203 (C36) |
| 14B | 414888327 | Leaf Valve Ø20 X 0.152 (C36) |
| 14C | 414888328 | Leaf Valve Ø20 X 0.114 (C36) |
| 15A | 414888329 | Leaf Valve Ø18 X 0.203 (C36) |
| 15B | 414888330 | Leaf Valve Ø18 X 0.152 (C36) |
| 16A | 414888331 | Leaf Valve Ø16 X 0.254 (C36) |
| 16B | 414888332 | Leaf Valve Ø16 X 0.203 (C36) |
| 16C | 414888333 | Leaf Valve Ø16 X 0.152 (C36) |
| 16D | 415083900 | Leaf Valve Ø16 X 0.114 (C36) |
| 17A | 414888334 | Leaf Valve Ø15 X 0.254 (C36) |
| 17B | 414888335 | Leaf Valve Ø15 X 0.203 (C36) |
| 17C | 414888336 | Leaf Valve Ø15 X 0.152 (C36) |
| 17D | 414888337 | Leaf Valve Ø15 X 0.114 (C36) |
| 18A | 503189538 | Leaf Valve Ø12 X 0.254 (C36) |
| 18B | 414888338 | Leaf Valve Ø12 X 0.203 (C36) |
| 18C | 414888339 | Leaf Valve Ø12 X 0.152 (C36) |
| 18D | 415038800 | Leaf Valve Ø12 X 0.114 (C36) |
