Home / BRP / 2019 / SKI-DOO - BACKCOUNTRY Series / 002 - BACKCOUNTRY 850 E-TEC, 2019 000UGKA00 000UGKB00 000UXKA00 000UXKB00 000UXKC00 000UXKD00 000UXKE00 000UXKF00 000UXKG00 000UXKH00 000UXKJ00 000UXKK00 000UXKL00 000UXKM00 000UXKN00 000UYKA00 000UYKB00 000UYKC00 000UYKD00 000UYKE00 000UYKF00 000UYKG00 000UYKH00 000UYKJ00 000UYKK00 000UYKL00 000UYKM00 / 08- Rear Shocks - X - North America

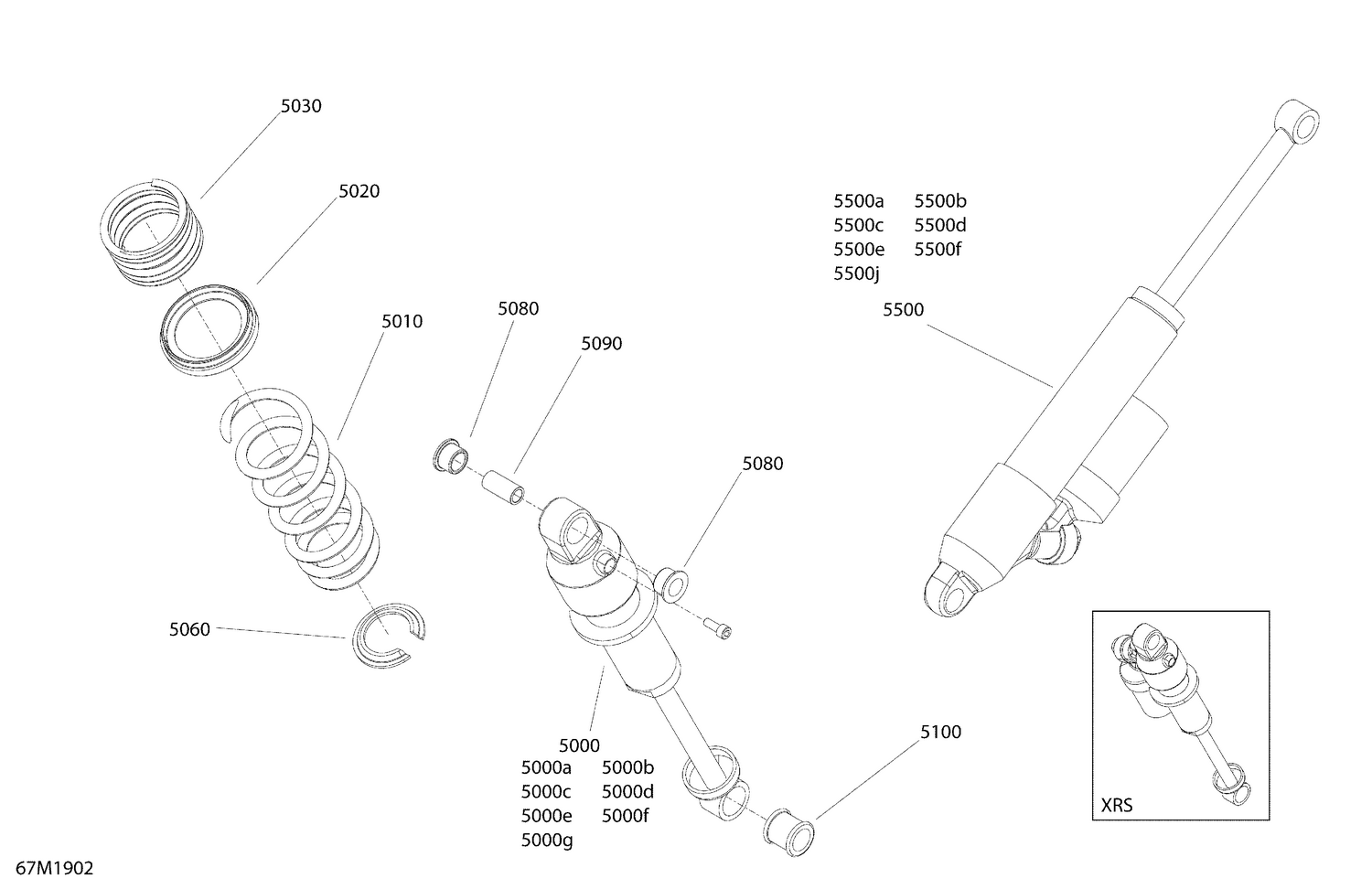

08- Rear Shocks - X - North America

08- Rear Shocks - X - North America

Parts (8)

RefPart NumberDescription
5000 503194749 Central Shock
5010 503193067 Black, Spring (189mm) Long
5020 503191281 Spring Spacer
5030 503193837 Black, Spring (51mm) Short
5060 503194270 Spring Stopper
5080 503189117 Urethane Bushing
5090 503189282 Bushing
5100 503189271 Bushing
