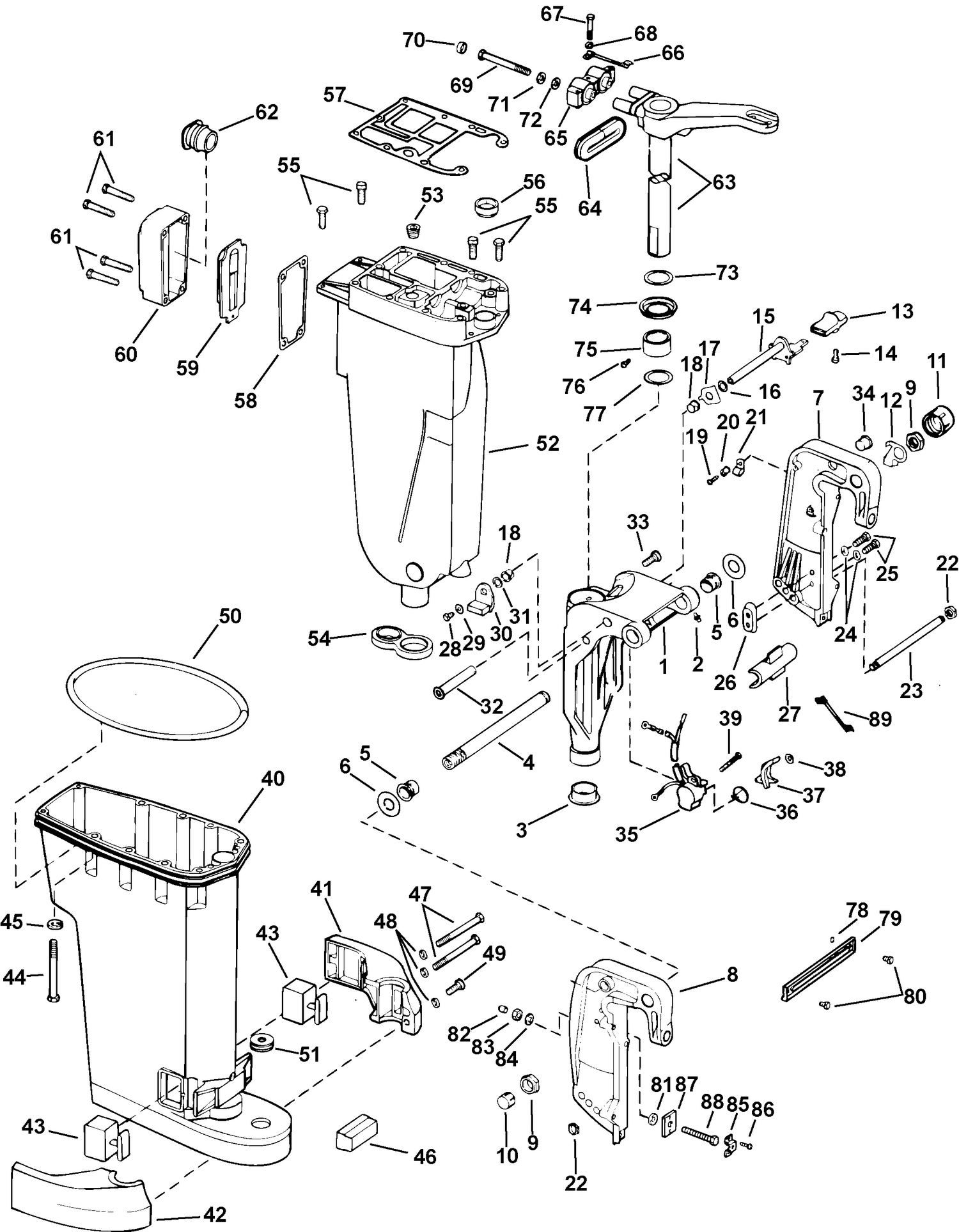

| Ref | Part Number | Description |
|---|
| 1 |
0350642 |
SWIVEL BRACKET |
| 3 |
0332453 |
THRUST WASHER |
| 4 |
0351896 |
TILT TUBE This part replaces 0321511. |
| 5 |
0319787 |
BUSHING |
| 6 |
0317782 |
THRUST WASHER |
| 7 |
0344104 |
STERN BRACKET, Port |
| 8 |
0333624 |
STERN BRACKET, Starboard |
| 9 |
0335554 |
CROU, tube de relevage |
| 10 |
0317894 |
CACHE, tube de relevage |
| 12 |
0352105 |
CLAMP, Cable This part replaces 0327264. |
| 13 |
0334438 |
KNOB |
| 14 |
0318238 |
SCREW |
| 15 |
0398875 |
LEVER & SHAFT |
| 17 |
0333765 |
SPRING |
| 18 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 23 |
0332447 |
PIN,TILT |
| 25 |
0333674 |
SCREW, Anode |
| 26 |
0173029 |
ANODE |
| 27 |
0341549 |
SHIELD, Tilt tube |
| 30 |
0432293 |
LEVER Assembly, Trail lock |
| 31 |
0314390 |
RETAINER |
| 32 |
0332435 |
PIN |
| 40 |
0332427 |
EXH. HSG., Outer, long |
| 41 |
0332419 |
LWR MT BRKT |
| 42 |
0332420 |
LWR MT BRKT |
| 43 |
0333764 |
MOUNT, Lower |
| 44 |
0133022 |
SCREW |
| 46 |
0332421 |
MOUNT, Bracket front |
| 47 |
0339822 |
SCREW, Mount bracket |
| 50 |
0332414 |
SEAL |
| 51 |
0321452 |
GROMMET |
| 52 |
0433031 |
EXH. HOUSING, Inner, long |
| 54 |
0332429 |
GROMMET |
| 55 |
0309705 |
SCREW |
| 56 |
0332407 |
SEAL |
| 58 |
0334281 |
GASKET |
| 59 |
0334879 |
PLATE, Baffle |
| 60 |
0334343 |
BAFFLE, Exhaust relief |
| 61 |
0335221 |
SCREW, Throttle body to reed plate |
| 62 |
0334883 |
GROMMET |
| 63 |
0433585 |
ARM & SHAFT Assy |
| 64 |
0344332 |
SEAL, Steering arm |
| 65 |
0436470 |
MOUNT, Upper |
| 66 |
0582494 |
GROUND STRAP |
| 67 |
0306423 |
BOLT |
| 69 |
0333868 |
SCREW |
| 70 |
0313581 |
BUMBER, Mount screw |
| 71 |
0321232 |
RETAINER WASHER |
| 72 |
0313580 |
WASHER |
| 73 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 74 |
0332452 |
SEAL, Upper |
| 75 |
0334337 |
BUSHING |
| 76 |
0334682 |
SCREW |
| 77 |
0333821 |
WASHER |
| 79 |
0357240 |
TIE BAR, Stern bracket This part replaces 0334247. |
| 81 |
0307238 |
RONDELLE |
| 82 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 83 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 84 |
0320248 |
RONDELLE, écrou |
| 85 |
0318273 |
Bolt hex retainer 1/2 in. |
| 86 |
0319886 |
SCREW |
| 87 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 88 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 88 |
0331578 |
Engine mount bolt 5 x 1/2 in. |
| 88 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 88 |
0363012 |
SCREW, Bracket mounting This part replaces 0336676. |
