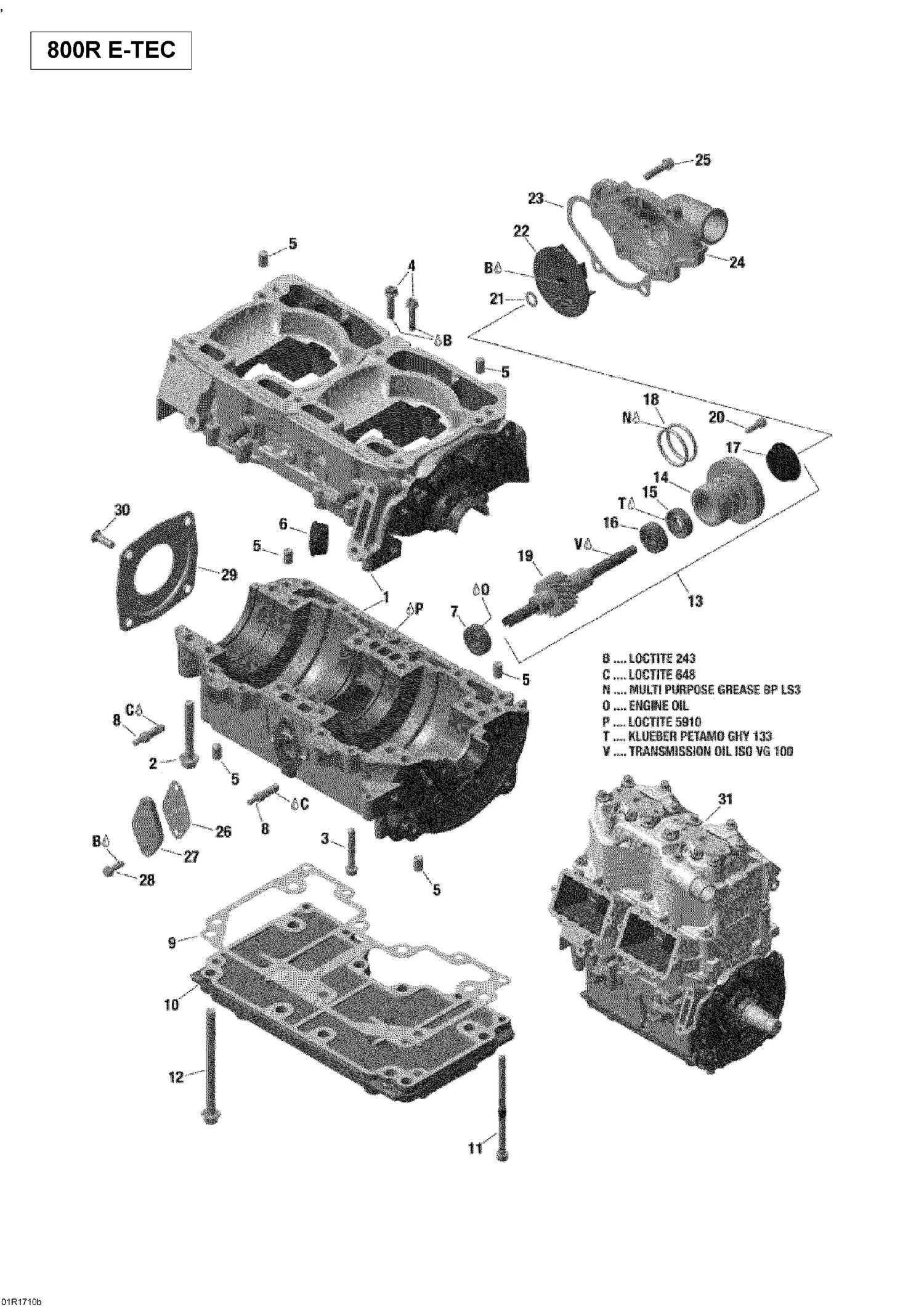

01- Crankcase And Water Pump - 800R E-TEC
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420941627 | Hex. Screw M8 X 56.5 |
| 3 | 420440282 | Torx Flange Screw M6 X 40 |
| 4 | 420440234 | Torx Flange Screw M6 X 25 |
| 5 | 420632010 | Center Pin 8 X 12 |
| 6 | 420660890 | Cable Grommet |
| 7 | 420232100 | Ball Bearing |
| 8 | 420956071 | Check Valve This part replaces 420956070. |
| 10 | 420812683 | ENGINE SUPPORT - Call your local BRP dealership |
| 11 | 420241607 | Socket HD Screw M6 x 100 |
| 12 | 420941518 | Screw M8x105 This part replaces 420941517. |
| 14 | Not | Available As Spare Part - Step Collar |
| 16 | 420232100 | Ball Bearing |
| 17 | 420650371 | Rotary Seal This part replaces 420650370. |
| 19 | Not | Available As Spare Part - Water Pump Shaft |
| 20 | 420840514 | Allen Screw M5 x 16 |
| 21 | 420944033 | Washer 8.4 |
| 22 | 420922805 | Water Impeller |
| 24 | 420822280 | Water Pump Housing |
| 25 | 420440234 | Torx Flange Screw M6 X 25 |
| 27 | 420810827 | Cover Plate |
| 28 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 29 | 420812422 | Oil Seal Cover This part replaces 420812420. |
| 30 | 420941436 | Screw M6 X 20 |
| 31 | 420079755 | Short Block 800R E-TEC |
