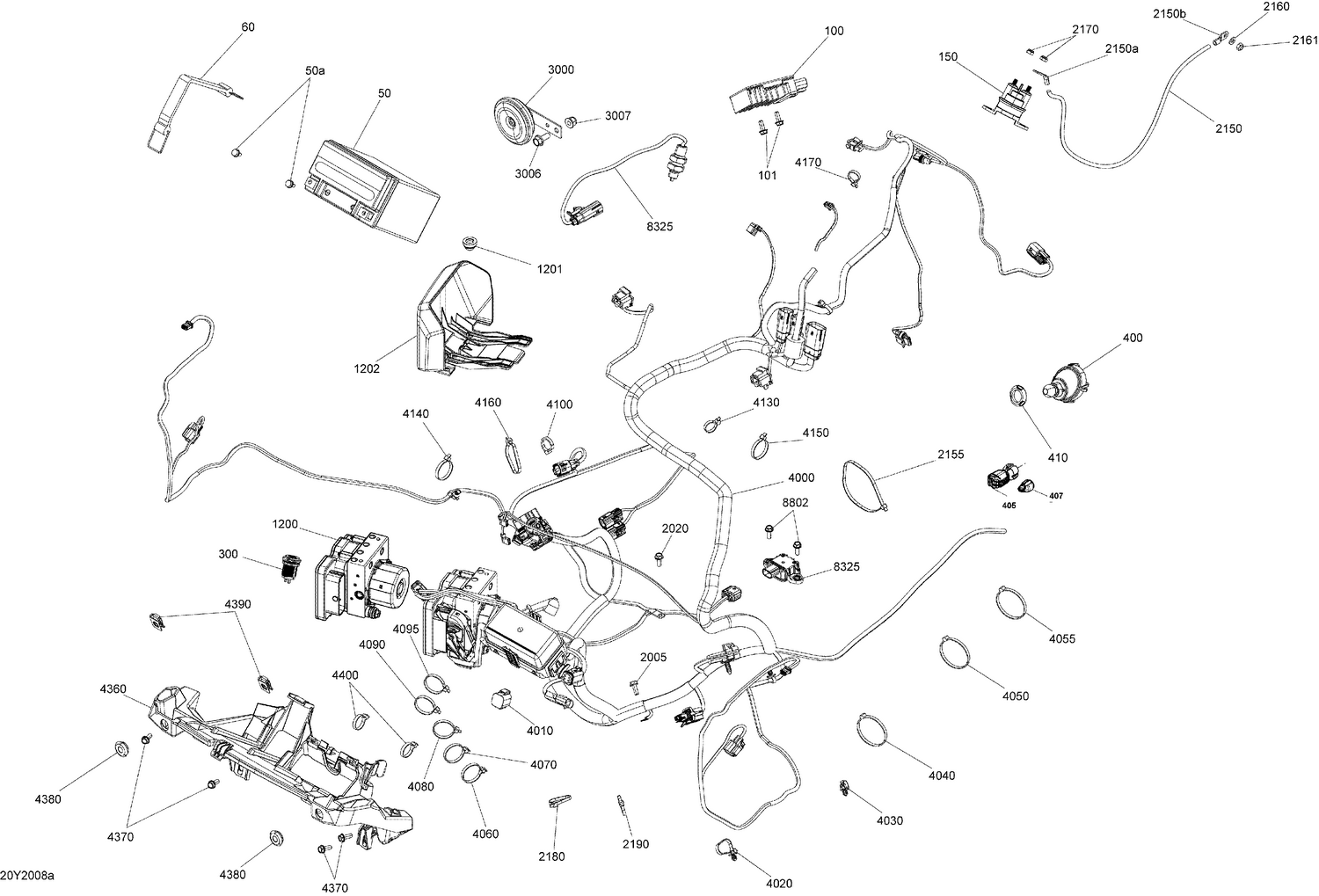

10- Electrical System
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 50a | 219800485 | Battery Bolt Kit |
| 60 | 293850112 | Holding Strap |
| 100 | 710006002 | Voltage Regulator |
| 101 | 210261650 | Hex. Flange Screw M6 X 16 |
| 150 | 278003012 | Starter Relay |
| 300 | 219400510 | USB Outlet |
| 400 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 405 | 710006336 | Dess Key, RF Type |
| 407 | 705013894 | Receptacle |
| 410 | 278002963 | Safety Nut (DESS Switch) |
| 1201 | 710003279 | Shock Damper |
| 1202 | 710005542 | VCM Module Protector |
| 2005 | 210261640 | Hex. Flange Screw M6 X 16 |
| 2020 | 210261640 | Hex. Flange Screw M6 X 16 |
| 2155 | 293750008 | Tie Wrap 368 mm |
| 2160 | 234061600 | Stainless Flat Washer M6 |
| 2161 | 232561434 | Elastic Stop Nut M6 |
| 2170 | 232561600 | Hex. Elastic Stop Nut M6 |
| 2180 | 293750008 | Tie Wrap 368 mm |
| 2190 | 293750008 | Tie Wrap 368 mm |
| 3000 | 710006157 | Horn |
| 3006 | 207682046 | Hex. Flange Screw M8 X 20 |
| 3007 | 233281416 | Hex. Elastic Flange Nut M8 |
| 4010 | 710004904 | Connector Plug |
| 4020 | 710003168 | Dart Tie Rap 200MM |
| 4030 | 710003168 | Dart Tie Rap 200MM |
| 4040 | 293750008 | Tie Wrap 368 mm |
| 4050 | 293750008 | Tie Wrap 368 mm |
| 4055 | 293750008 | Tie Wrap 368 mm |
| 4060 | 293750008 | Tie Wrap 368 mm |
| 4070 | 293750008 | Tie Wrap 368 mm |
| 4080 | 293750008 | Tie Wrap 368 mm |
| 4090 | 293750008 | Tie Wrap 368 mm |
| 4095 | 293750008 | Tie Wrap 368 mm |
| 4100 | 293750008 | Tie Wrap 368 mm |
| 4130 | 293750008 | Tie Wrap 368 mm |
| 4140 | 293750008 | Tie Wrap 368 mm |
| 4150 | 293750008 | Tie Wrap 368 mm |
| 4160 | 293750008 | Tie Wrap 368 mm |
| 4170 | 293750008 | Tie Wrap 368 mm |
| 4360 | 710007891 | Front Electronic Component Support This part replaces 710005523. |
| 4370 | 210261650 | Hex. Flange Screw M6 X 16 |
| 4380 | 705003264 | Grommet |
| 4390 | 250100208 | Panel Nut M6 X 1.0 |
| 4400 | 293750008 | Tie Wrap 368 mm |
| 8325 | 219800558 | Switch Brake Kit This part replaces 710005480. |
| 8800 | 710005658 | Yaw Rate Sensor |
