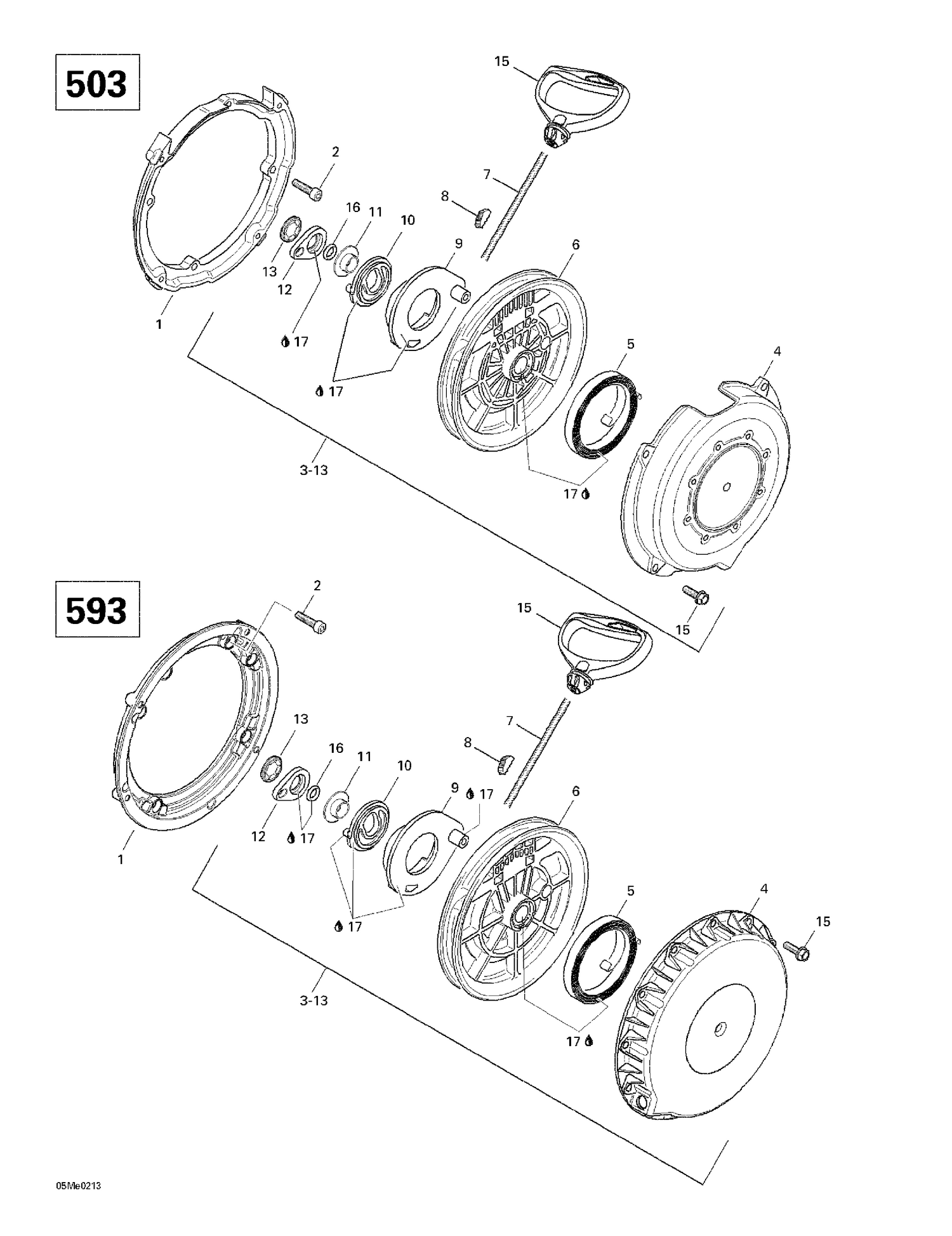

04- Rewind Starter (503)
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 420939115 | Rewind Spring |
| 7 | 219704403 | Was 412500100 Rope-Starter |
| 8 | 420852070 | Key Clamp |
| 10 | 420852305 | PAWL LOCK - Call your local BRP dealership This part replaces 420852303. |
| 11 | 420847926 | Stage Sleeve This part replaces 420847925. |
| 12 | 420852520 | Lock Ring |
| 13 | 420845560 | Locking Element |
| 15 | 572084400 | Starter Grip |
| 16 | 420250400 | O-Ring |
