Home / BRP / 2005 / MX Z / MX Z 500SS Trail & Adrenaline, 2005 / 10- Electrical System B

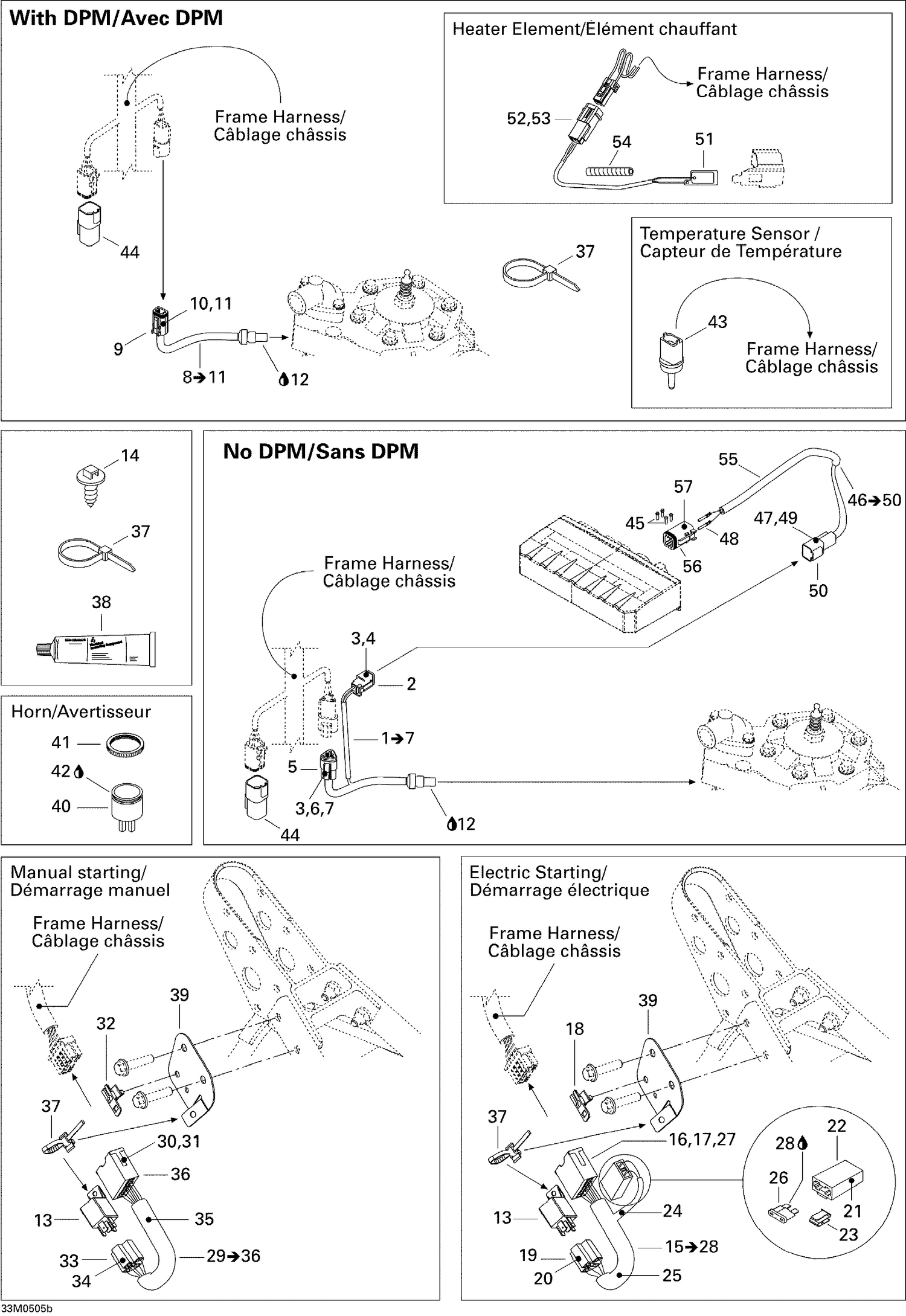

10- Electrical System B

10- Electrical System B

Parts (44)

RefPart NumberDescription
2 515175670 Female Terminal Housing, 2 Circuits
3 278000632 Female Terminal
4 515175675 Female Lock, 2 Circuits
5 515175671 FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
6 515175676 Female Lock, 3 Circuits
7 293000052 Sealing Cap
9 278000739 Male Connector, 4 Circuits
10 278000632 Female Terminal
11 515175677 MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
12 219704455 Was 293800018 Loctite 592, 50 ml
13 710010053 Relay This part replaces 410113200.
14 293730040 Mount Dart This part replaces 293730018.
16 515175232 Male Terminal
17 515175273 MALE TERMINAL - Call your local BRP dealership
18 515175283 Housing Support
19 409209900 Female Housing, 5 Circuits
20 561503100 FEMALE TERMINAL - Call your local BRP dealership
21 409011600 Female Terminal
22 409004000 Fuse Holder
23 409014200 CLIP - Call your local BRP dealership
24 219704425 Tubing 6 Mm 3000Mm Long
25 219704400 Was 409901800 Tubing (13 mm)
26 278000344 Fuse, 5 Amperes
27 515175720 MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
28 219704453 Was 293550004 Dielectric Grease, 150 g
30 515175232 Male Terminal
31 515175273 MALE TERMINAL - Call your local BRP dealership
32 515175283 Housing Support
33 409209900 Female Housing, 5 Circuits
34 561503100 FEMALE TERMINAL - Call your local BRP dealership
35 219704400 Was 409901800 Tubing (13 mm)
36 515175720 MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
37 293750009 Tie-Rap 173 mm
37 414115200 Tie-Rap 180 mm
38 219704453 Was 293550004 Dielectric Grease, 150 g
39 515176020 HARNESS SUPPORT - Call your local BRP dealership
40 515176035 HORN - Call your local BRP dealership
41 414805101 PLASTIC NUT - Call your local BRP dealership
42 296000309 Silicone Sealant 51388, 300 ml
44 515176234 FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership
47 278000631 Male Terminal
48 278000632 Female Terminal
49 409207500 Male Lock, 2 Circuits
50 515175665 Male Terminal Housing, 2 Circuits
