Home / BRP / ELECTRIC / Forest, 2004 / 08- Rear Suspension

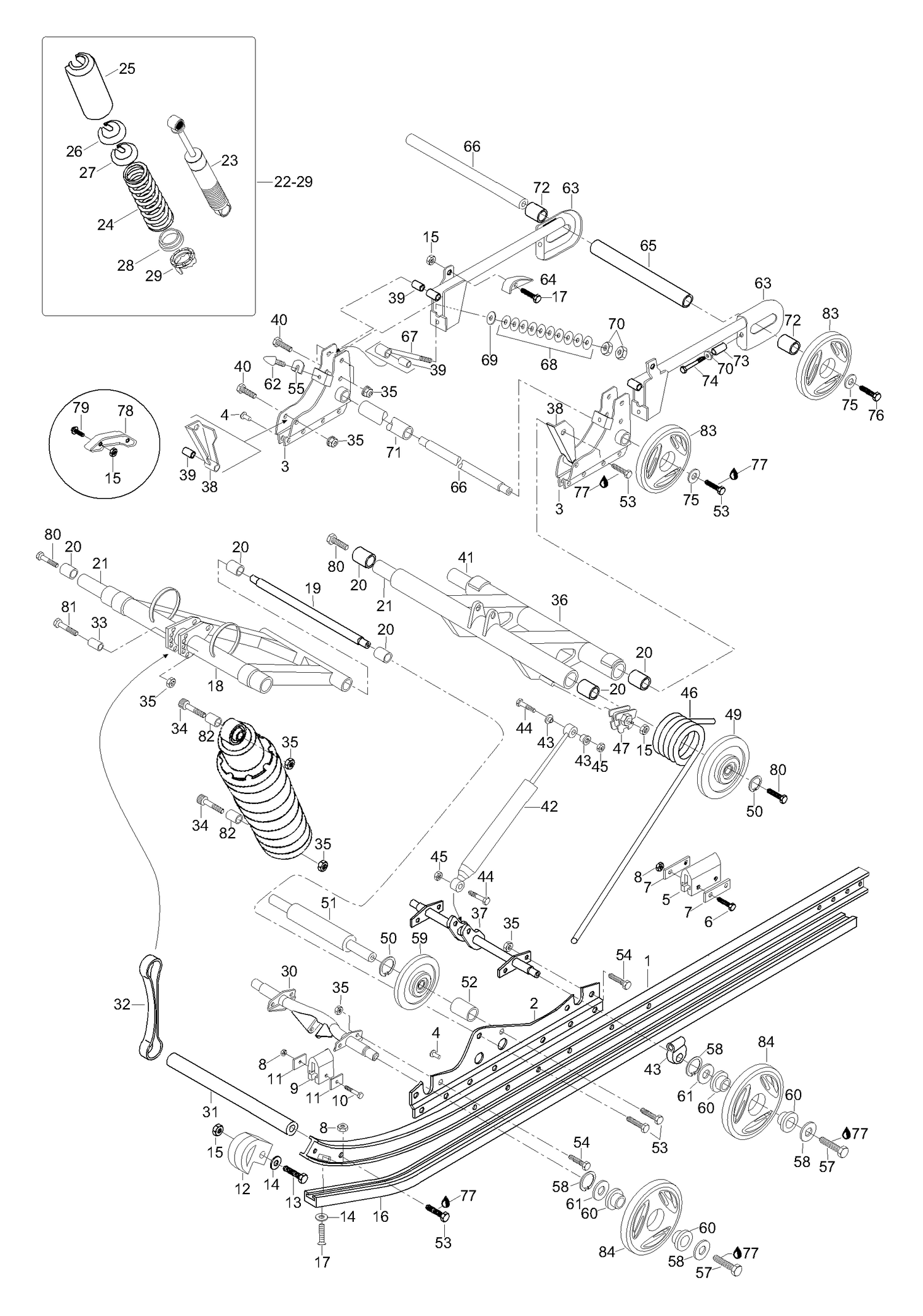

08- Rear Suspension

08- Rear Suspension

Parts (88)

RefPart NumberDescription
1 5142864 RUNNER - Call your local BRP dealership
2 605350392 PLATE LH - Call your local BRP dealership
2 605350393 PLATE RH - Call your local BRP dealership
3 539672 L.H. Extension plate
3 539673 R.H. Extension plate
4 544212 Rivet - Call your local BRP dealership
5 570023100 Rubber damper
6 40002 Screw M6 x 40
7 548387 Support plate - Call your local BRP dealership
8 33010 Lock Nut M6 (1=10Pcs)
9 5442328 STOPPER-RUBBER - Call your local BRP dealership
10 40032 Screw M6 x 30
11 548470 Washer
12 605348954 Slide piece
13 40031 Screw M6 x 25
14 20003 Washer
15 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
16 549582 Slide surface
17 40030 Screw M6 x 20
18 605350283 FRONT ARM WELDING - Call your local BRP dealership
19 548944 Arm Shaft - Call your local BRP dealership
20 31046 Slide Bearing
21 538945 Shaft
23 23226 Shock
24 25068 SPRING - Call your local BRP dealership
25 503193663 Protector This part replaces 503188930.
26 706200881 Spring Stopper This part replaces 503140600.
27 706200785 Cap This part replaces 503141600.
28 23177001 Spring guide
29 23176001 Cam
30 605350287 Support wheel shaft
31 546599 Axle - Call your local BRP dealership
32 5445988 Stopper Strap - Call your local BRP dealership
33 546065 Sleeve
34 40851 Allen screw M8 x 50
35 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
36 605350729 REAR ARM WELDING - Call your local BRP dealership
37 605350285 Shaft
38 5440349 L.H. Lever
38 5440350 R.H. Lever
39 545758 Sleeve
40 207084544 Hex. Screw M8 X 45 This part replaces 40008.
41 548946 Shaft
42 23133 SHOCK - Call your local BRP dealership This part replaces 23016.
43 544417 Shock Spacer - Call your local BRP dealership
44 40017 Screw M10 x 50
45 33012 Nut elastic M10
46 538805 L.H. Spring, d=10.5
46 538806 R.H. Spring, d=10.5
47 548804 Spring crank block
48 503190022 RH CAM ADJUSTER - Call your local BRP dealership
48 503190023 LH CAM ADJUSTER - Call your local BRP dealership
49 503194127 Wheel 165mm This part replaces 503189568.
50 31001 Circlip
51 5445985 SHAFT-SUPPORT - Call your local BRP dealership
52 5444098 Spacer - Call your local BRP dealership
53 40335 Allen screw M10 x 30
54 40035 Screw M8 x 16
55 5440645 Adjusting plate
56 503183100 Washer
57 40337 Screw M8x16
58 293370056 Circlip 20X1.75 DIN471 This part replaces 31007.
59 503191029 Support wheel, 135mm This part replaces 503190216.
60 503189534 Insert
61 31091 Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership
62 535455 Rubber Stopper - Call your local BRP dealership
63 5243222 R.H. Extension.
63 5243223 L.H. Extension
64 548262 Track guard
65 5346739 Sleeve
66 5445986 Rear Shaft - Call your local BRP dealership
67 5440377 BOLT-EYE ADJUSTER - Call your local BRP dealership
68 25004 Cup Spring
69 234002410 Flat Washer 10 mm This part replaces 20011.
70 232006414 Hex. Nut M10 This part replaces 33004.
71 542105 Sleeve
72 5444098 Spacer - Call your local BRP dealership
73 546668 Spacer - Call your local BRP dealership
74 40239 Screw M10 x 100
75 503183300 Washer
76 40050 Locking screw M10 x 35
77 293800060 Loctite 243
78 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
79 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
80 40314 Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership
81 40122 Screw M8 x 50
82 605450783 BUSHING - Call your local BRP dealership
83 503190856 Support wheel, 165mm/Full Moon This part replaces 503189374.
