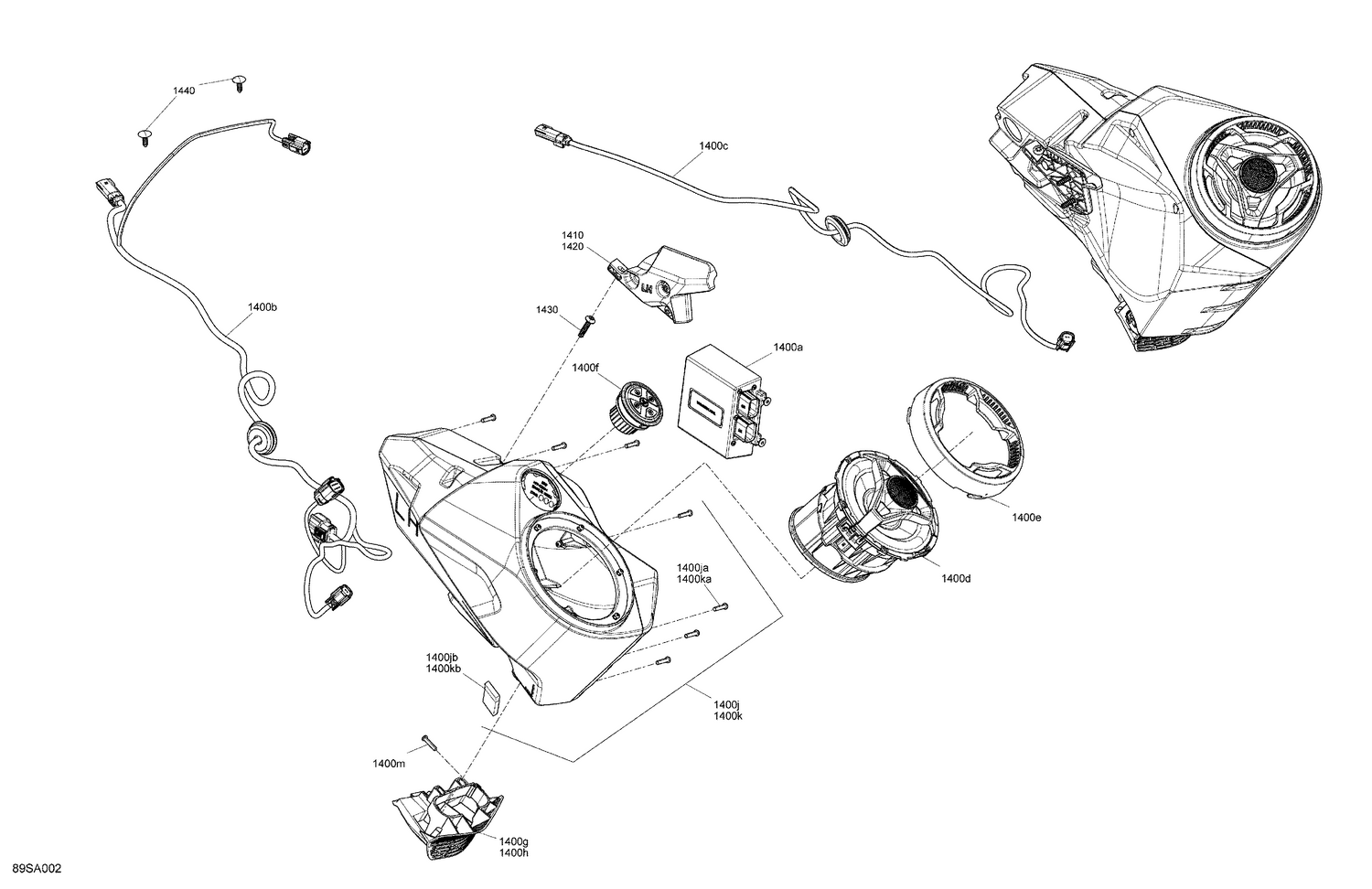

08- Electric - Audio System - Medium VIP Cluster
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1400a | 278003464 | Amplifier |
| 1400b | 278003497 | Amplifier Harness |
| 1400c | 278003462 | Speaker Harness |
| 1400d | 278003463 | Speaker |
| 1400e | 278003466 | Speaker Grille |
| 1400f | 278003465 | Audio Control |
| 1400g | 278003616 | Deep Black, LH Protective Grille |
| 1400h | 278003617 | Deep Black, RH Protective Grille |
| 1400j | 278003735 | LH Speaker Enclosure Ass'y |
| 1400ja | 250000207 | Plastite Torx Screw #10 X 7/8" |
| 1400jb | 278003860 | Stopper |
| 1400k | 278003736 | RH Speaker Enclosure Ass'y |
| 1400ka | 250000207 | Plastite Torx Screw #10 X 7/8" |
| 1400kb | 278003860 | Stopper |
| 1400m | 250000207 | Plastite Torx Screw #10 X 7/8" |
| 1410 | 278003489 | LH Bracket |
| 1420 | 278003518 | RH Bracket |
| 1430 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 1440 | 293730011 | Black, Dart |
