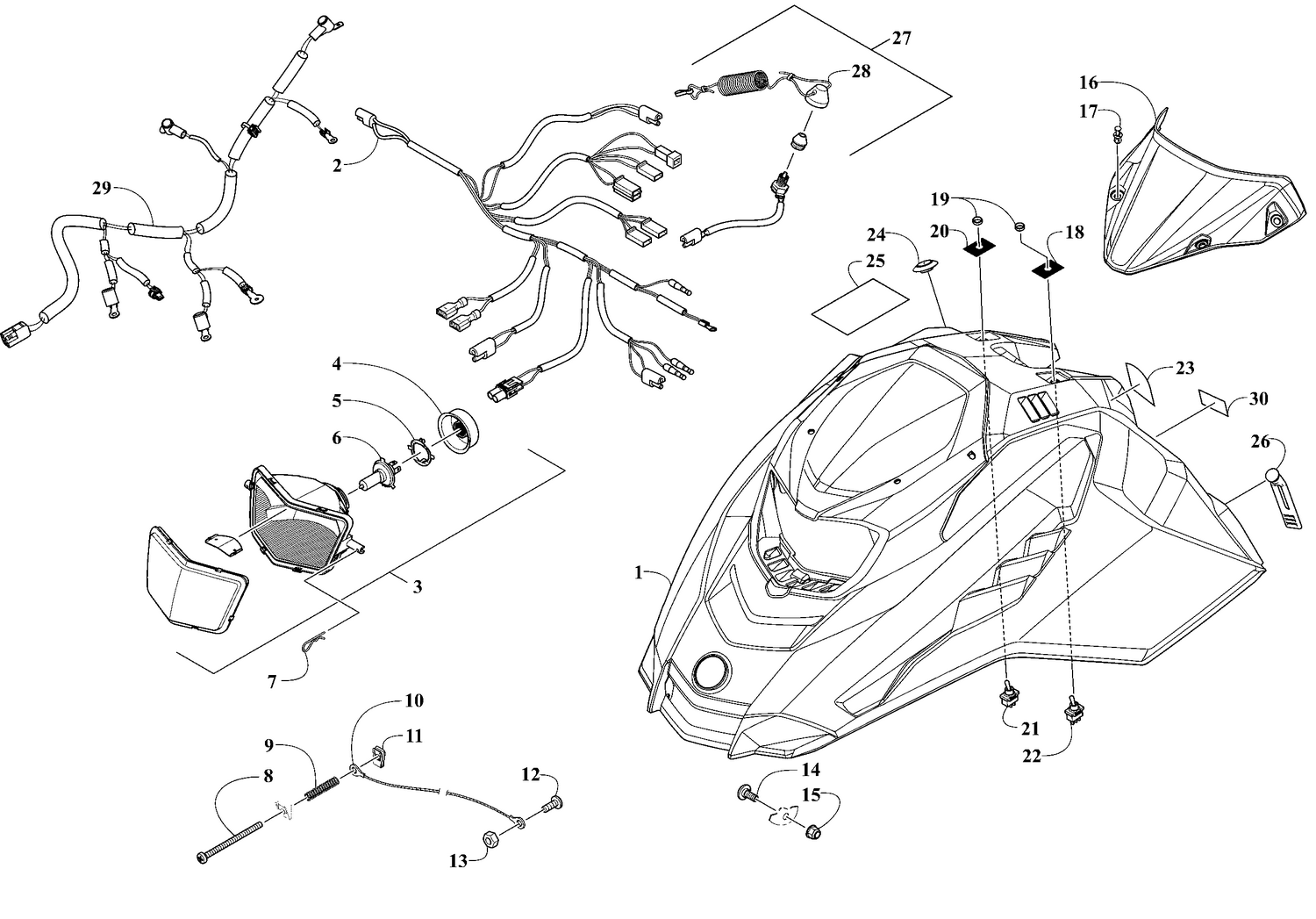

Hood, Headlight and Windshield
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 7718-167 | Red, Hood |
| 2 | 1686-863 | Main Wiring Harness |
| 3 | 0609-964 | Headlight Ass'y |
| 4 | 0609-992 | Boot |
| 5 | 0409-097 | Retainer H/L |
| 6 | 0609-956 | Bulb H4 60/55 LL |
| 7 | 0623-847 | Hairpin Clip |
| 8 | 2623-256 | Screw With Nylon Patch M6X90 |
| 9 | 0623-466 | Adjuster Spring |
| 10 | 7606-964 | Hood Cable |
| 11 | 0423-577 | Nut Type U |
| 12 | 0623-420 | Hex Screw Washer Head #10-24X5 |
| 13 | 8041-246 | Hex Lock Nut #10-24 |
| 14 | 2623-042 | Shoudler Screw M6-1.0 |
| 15 | 8427-603 | Hex Lock Nut M6X1.0 |
| 16 | 1616-352 | Windshield |
| 17 | H667790 | Removable Rivet |
| 18 | 4621-652 | Headlight Control |
| 19 | 0609-905 | Black, Knurled Nut |
| 20 | 4621-653 | Decal Handwarmer |
| 21 | 0609-904 | Toggle Switch SPST |
| 22 | 0609-920 | Headlight Switch |
| 23 | 8621-366 | Decal Caution Battery |
| 23 | 8621-367 | Decal Passenger Warning |
| 24 | 2623-277 | Blanking Plug 1.25" |
| 25 | 8621-365 | Warning Decal Hood |
| 26 | 1606-930 | Hold-Down Strap |
| 27 | 0630-173 | Tether Switch Ass'y |
| 28 | 0609-046 | Tether Cord |
| 29 | 1686-864 | Electric Start Harness |
