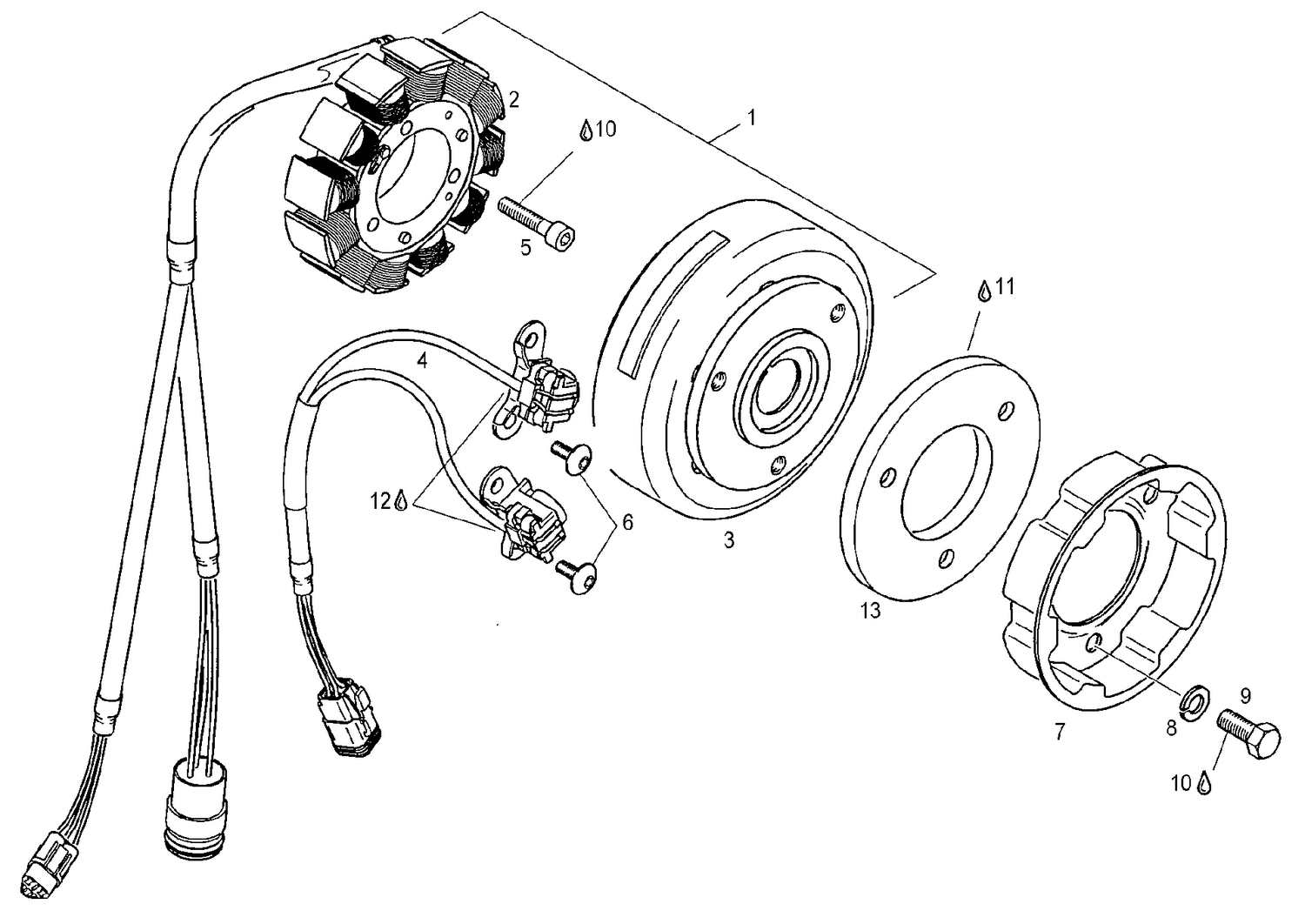

| Ref | Part Number | Description |
|---|
| 2 |
420888615 |
Stator assy |
| 3 |
420888626 |
Magneto flywheel |
| 4 |
420966802 |
Pick up assy |
| 5 |
205063044 |
Allen screw M6x30 This part replaces 420840880. |
| 6 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 7 |
420852533 |
Starting Pulley This part replaces 420852532. |
| 8 |
20014 |
Lock washer |
| 9 |
207182044 |
Hex. Cap Screw M8 x 20 This part replaces 420940591. |
| 10 |
293800060 |
Loctite 243, 10 ml This part replaces 420899785. |
| 11 |
293800060 |
Loctite 243, 10 ml This part replaces 420897651. |
| 12 |
420297710 |
PU-glue, sikaflex 255 |
