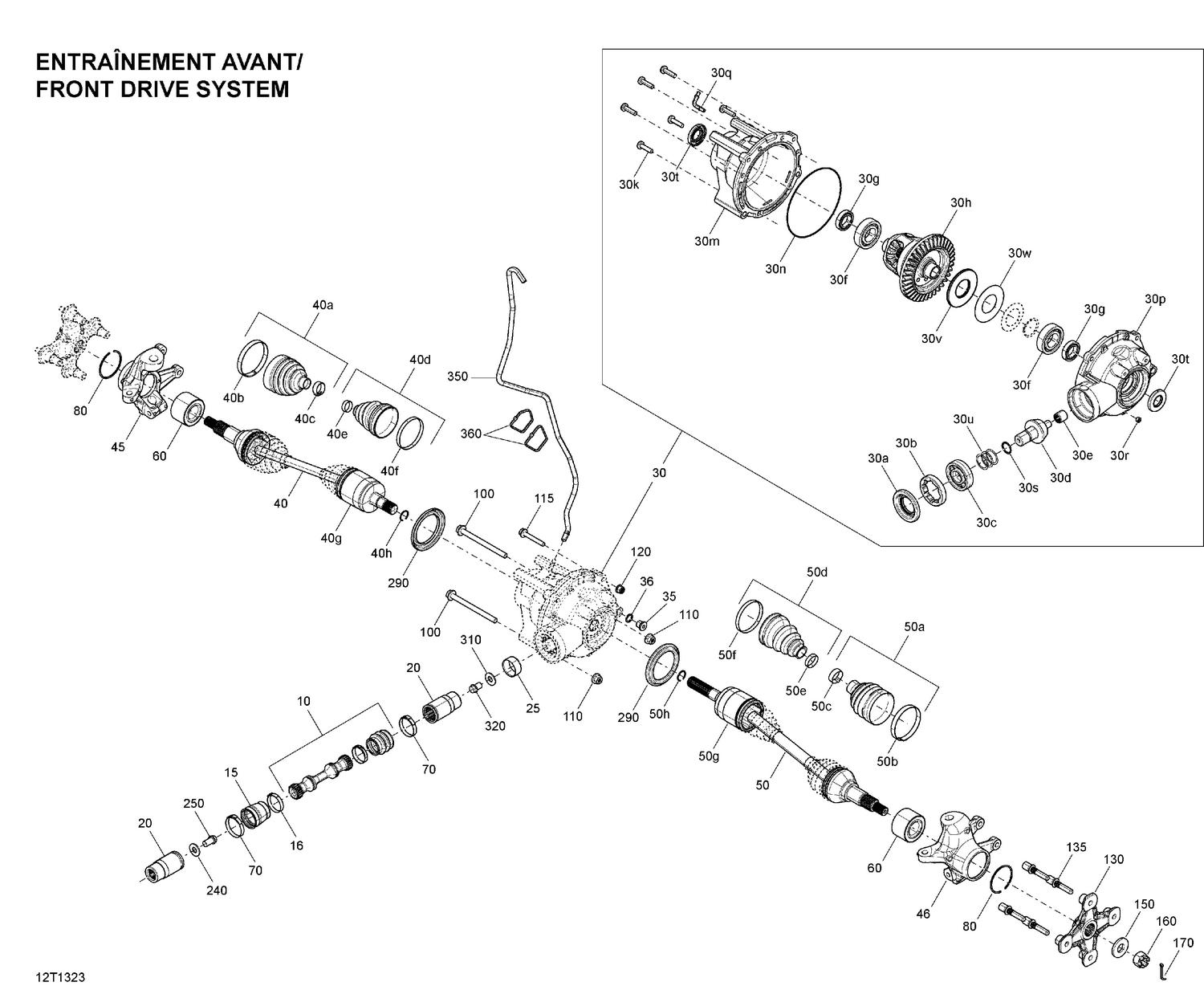

| Ref | Part Number | Description |
|---|
| 10a |
715900118 |
Rubber Boot |
| 10b |
509000045 |
Oetiker Gear Clamp 36.1MM |
| 10c |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 15 |
705401093 |
Rubber Boot |
| 16 |
293650199 |
Oetiker Gear Clamp |
| 20 |
703500678 |
Front Bushing Shaft Kit |
| 25 |
705400036 |
Wear Ring |
| 30a |
705401481 |
Oil Seal |
| 30b |
705401603 |
Nut This part replaces 705400661. |
| 30c |
705500260 |
Ball Bearing |
| 30d |
705501588 |
Engrenage 10 Dents - Appelez votre concessionnaire BRP local |
| 30e |
705500261 |
Needle Bearing |
| 30f |
705401606 |
Ball Bearing This part replaces 705500259. |
| 30g |
293350044 |
Ball Bearing |
| 30h |
703500872 |
DIFFERENTIAL KIT - Call your local BRP dealership This part replaces 705400822. |
| 30k |
705401601 |
Screw This part replaces 705500892. |
| 30m |
705400762 |
FRONT COVER - Call your local BRP dealership |
| 30n |
705500265 |
Seal |
| 30p |
705400761 |
FRONT COVER - Call your local BRP dealership |
| 30q |
705500893 |
VENT VALVE - Call your local BRP dealership |
| 30r |
705500894 |
Drain Plug |
| 30s |
705500267 |
O-Ring |
| 30t |
705401618 |
Gasket This part replaces 705500255. |
| 30u |
705500075 |
Pinion Gear Shim .022" |
| 30u |
705501162 |
Pinion Gear Shim |
| 30u |
705502061 |
Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 30v |
705401604 |
Shim This part replaces 703500288. |
| 30w |
705401604 |
Shim This part replaces 703500050. |
| 35 |
705500504 |
Fill Level Plug |
| 36 |
705500506 |
Copper Washer |
| 40a |
705401354 |
Boot Kit, Wheel Side |
| 40b |
715900260 |
Oetiker Clamp, Large |
| 40c |
715900261 |
Oetiker Clamp, Small |
| 40d |
705401355 |
Boot Kit, Différential Side |
| 40e |
715900261 |
Oetiker Clamp, Small |
| 40f |
715900262 |
Oetiker Clamp, Large |
| 40g |
715900396 |
LH Plunging CV Joint This part replaces 705401359. |
| 40h |
705401349 |
Circlip Joint |
| 45 |
705403307 |
LH Knuckle This part replaces 705401290. |
| 46 |
705403308 |
RH Knuckle This part replaces 705401291. |
| 50a |
705401354 |
Boot Kit, Wheel Side |
| 50b |
715900260 |
Oetiker Clamp, Large |
| 50c |
715900261 |
Oetiker Clamp, Small |
| 50d |
705401355 |
Boot Kit, Différential Side |
| 50e |
715900261 |
Oetiker Clamp, Small |
| 50f |
715900262 |
Oetiker Clamp, Large |
| 50g |
715900395 |
RH Plunging CV Joint This part replaces 705401357. |
| 50h |
705401349 |
Circlip Joint |
| 60 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 70 |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 80 |
293370019 |
Circlip |
| 100 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 110 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 115 |
207685544 |
Hex. Flange Screw M8 X 55 |
| 120 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 130 |
705501716 |
Wheel Hub Ass'y |
| 150 |
250200171 |
Conical Spring Washer M18 This part replaces 250200049. |
| 160 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 170 |
250400036 |
Cotter Pin |
| 240 |
250200102 |
Flat Washer M12 |
| 250 |
250001042 |
Hex Flange Screw M12 X 20 This part replaces 250000540. |
| 290 |
705400780 |
Wear Sleeve |
| 310 |
250200102 |
Flat Washer M12 |
| 320 |
250000378 |
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
| 350 |
219704410 |
Polyurethane Hose 10000Mm Long |
