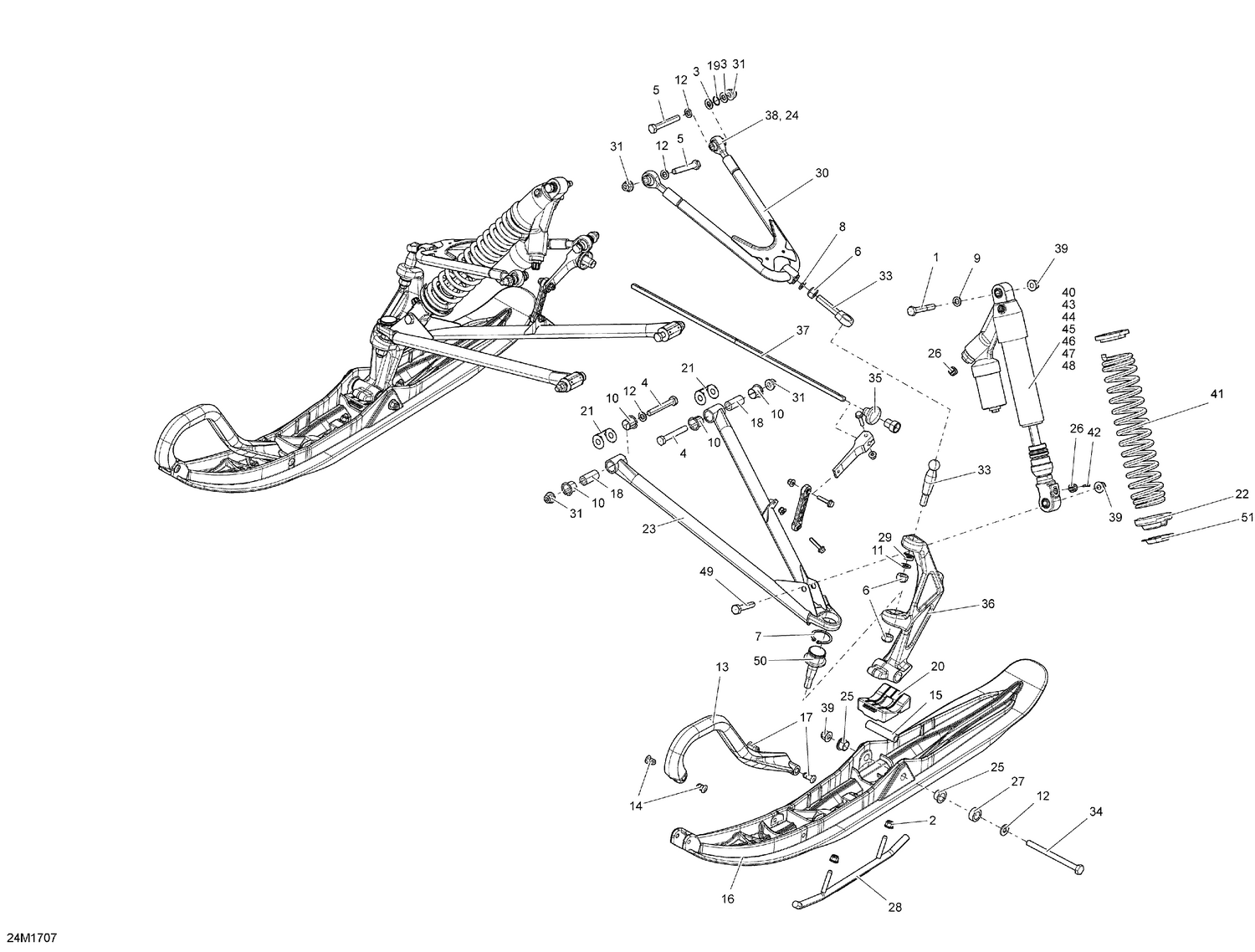

07- Front Suspension And Ski
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3 | 234001410 | Flat Washer 10 mm |
| 4 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 5 | 250000387 | SCREW HEX. M10 X 65 - Call your local BRP dealership |
| 6 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 6 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 7 | 293370035 | Circlip |
| 8 | 503189276 | Washer |
| 9 | 503189564 | Washer |
| 10 | 503191766 | Cushion |
| 11 | 503192491 | Washer |
| 12 | 503192496 | Washer |
| 13 | 505073138 | Black Handle |
| 14 | 505071812 | Retainer 17mm long |
| 15 | 506133300 | Spacer |
| 16 | 505072205 | Black Pilot Ski 5.7X |
| 17 | 505072133 | Retainer 23mm Long |
| 18 | 505072401 | Aluminum Bushing |
| 19 | 505072448 | O-Ring |
| 20 | 505072594 | Ski Stopper |
| 21 | 505072634 | Wear Plate |
| 22 | 505072635 | Spring Stopper |
| 23 | 505072654 | RH LOWER ARM - Call your local BRP dealership |
| 23 | 505072655 | LH LOWER ARM - Call your local BRP dealership |
| 24 | 232026414 | RH Hex. Nut |
| 25 | 505072690 | Leg Bushing |
| 26 | 505072753 | Adjustment Knob |
| 27 | 505072807 | Spacer |
| 28 | 860201043 | Round Carbide Runner |
| 29 | 505073506 | SPACER - Call your local BRP dealership |
| 30 | 505073527 | LH UPPER ARM - Call your local BRP dealership |
| 30 | 505073528 | RH UPPER ARM - Call your local BRP dealership |
| 31 | 250100165 | Hex. Flange Elastic Nut M10 |
| 33 | 505073561 | Upper Ball Joint |
| 34 | 250000703 | Hex. Screw M10 X 130 |
| 35 | 572091300 | Cap |
| 36 | 505074010 | LEG-SKI MACH. - Call your local BRP dealership |
| 36 | 505074011 | LEG-SKI MACH. - Call your local BRP dealership |
| 37 | 505072602 | Stabilisator |
| 38 | 505073532 | BALL JOINT - Call your local BRP dealership |
| 39 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 40 | 505073694 | LH FRONT SHOCK - Call your local BRP dealership |
| 40 | 505073695 | RH FRONT SHOCK - Call your local BRP dealership |
| 41 | 505073537 | Deep Black, Spring |
| 42 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 43 | 415093807 | O-Ring |
| 44 | 415093806 | Piston Ring |
| 45 | 505070398 | Air Valve |
| 46 | 505070399 | Screw |
| 47 | 505070400 | O-Ring |
| 48 | 415093804 | O-Ring |
| 49 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 50 | 505073636 | Ball Joint |
