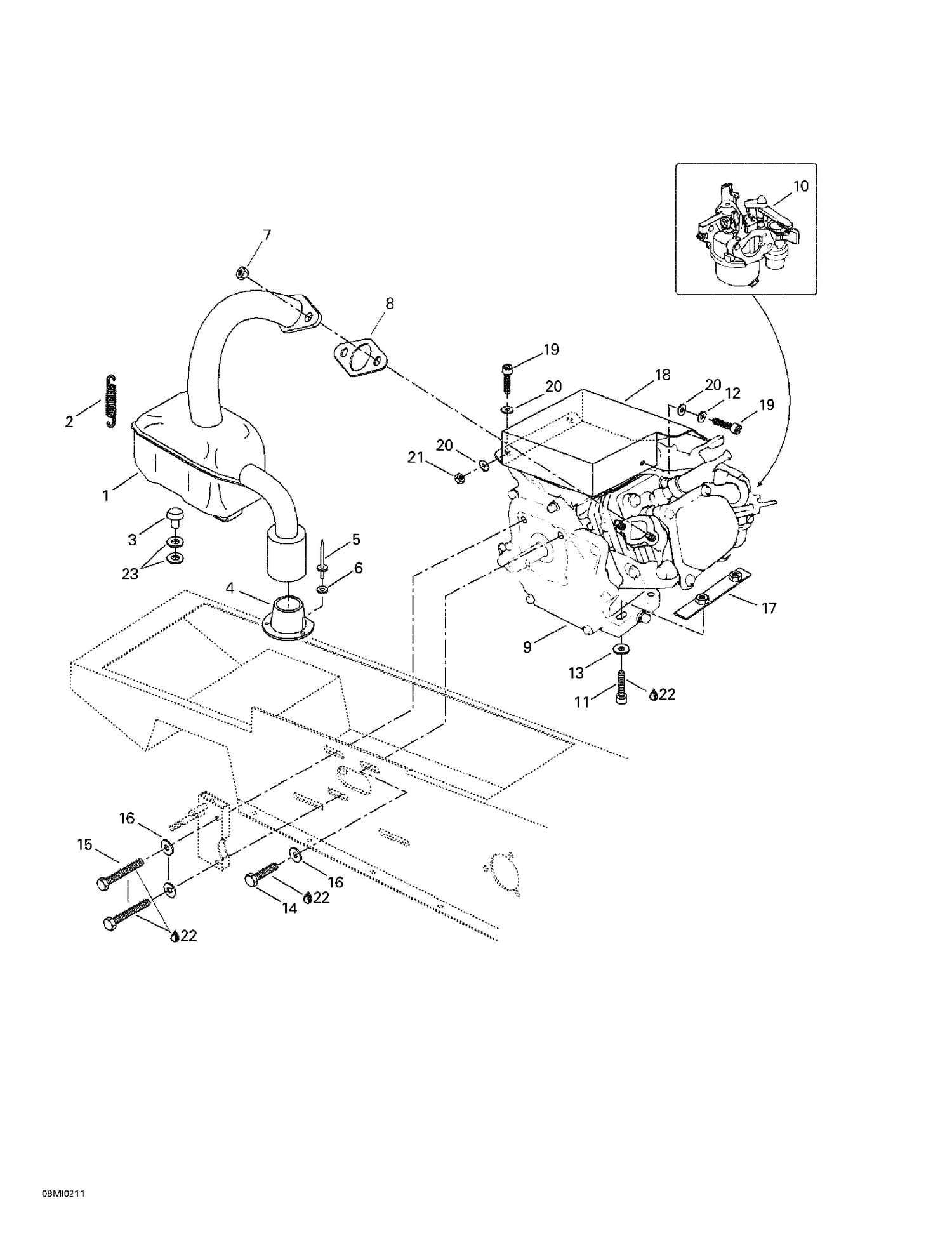

01- Engine Support And Muffler
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514098700 | MUFFLER - Call your local BRP dealership |
| 2 | 415104800 | SPRING - Call your local BRP dealership |
| 3 | 570044700 | Rubber Bumper |
| 4 | 570028700 | Exhaust Grommet |
| 5 | 390407200 | Pop Rivet 3/16” |
| 6 | 234051410 | Flat Washer M5 |
| 7 | H94001080000S | Hexagonal Nut M8 |
| 8 | H18381ZH8800 | Gasket |
| 9 | 400101103 | ENGINE ASS'Y (YELLOW) - Call your local BRP dealership |
| 10 | H16100ZK7U51 | Carburetor Ass'y |
| 11 | 207083544 | Hex. Screw M8 X 35 |
| 12 | 234161471 | Lock Washer M6, Black |
| 13 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 14 | Not | Available As Spare Part - Hex. Screw 5/16 x 3/4 |
| 15 | Not | Available As Spare Part - Hex. Screw 5/16 x 1 1/4 |
| 16 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 17 | 512057400 | STOPPER PLATE - Call your local BRP dealership |
| 18 | 512059187 | ENGINE PROTECTOR - Call your local BRP dealership |
| 19 | 207063044 | Hex. Screw M6 X 30 |
| 20 | 234061410 | Flat Washer 6 mm |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 22 | 293800060 | Loctite 243, 10 ml |
