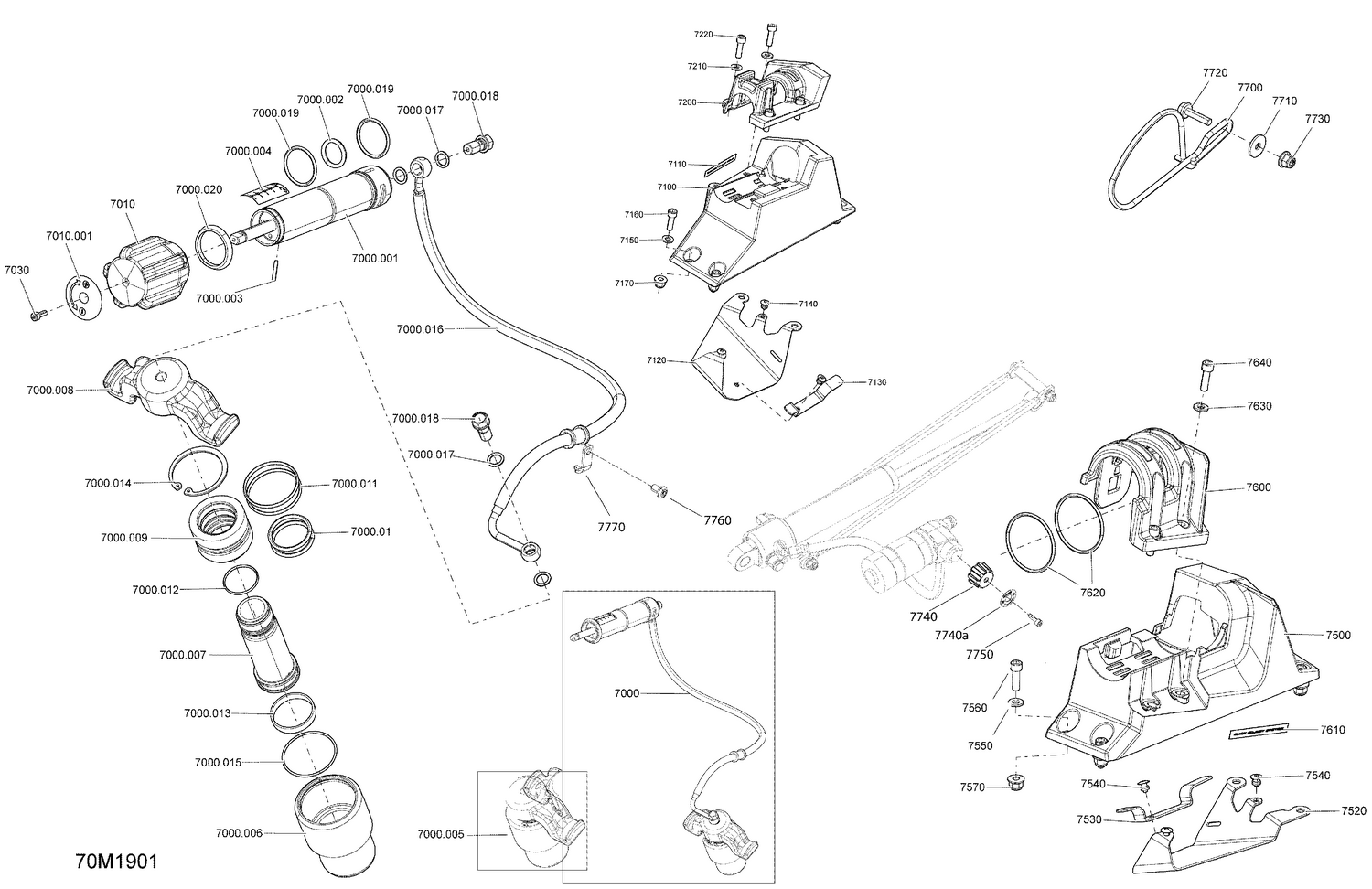

08- Quick Ajust System
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 7030 | 205541660 | Socket Screw M4 X 16 (Scotch Grip) |
| 7120 | 503196022 | LH Hose Guard This part replaces 503194524. |
| 7130 | 503196020 | Retaining Plate This part replaces 503193413. |
| 7140 | 293150144 | Stavex Rivet |
| 7150 | 234061600 | Stainless Flat Washer M6 |
| 7160 | 205062560 | Socket Head Screw M6 X 25 |
| 7170 | 233261466 | Hex. Flange Elastic Nut M6 |
| 7200 | 503192956 | LH Half Housing |
| 7210 | 234061600 | Stainless Flat Washer M6 |
| 7220 | 205062060 | Socket Head Screw M6 X 20 |
| 7500 | 503194685 | RH Support |
| 7520 | 503196023 | RH Hose Guard This part replaces 503194525. |
| 7530 | 503196020 | Retaining Plate This part replaces 503193413. |
| 7540 | 293150144 | Stavex Rivet |
| 7550 | 234061600 | Stainless Flat Washer M6 |
| 7560 | 205062560 | Socket Head Screw M6 X 25 |
| 7570 | 233261466 | Hex. Flange Elastic Nut M6 |
| 7600 | 503192957 | RH Half-Housing |
| 7610 | 516006369 | Decal |
| 7620 | 293250085 | O-Ring |
| 7630 | 234061600 | Stainless Flat Washer M6 |
| 7640 | 205062060 | Socket Head Screw M6 X 20 |
| 7700 | 503194113 | Protector |
| 7710 | 224061201 | Flat Washer |
| 7720 | 207662556 | Hex. Flange Screw M6 X 25 |
| 7730 | 233261466 | Hex. Flange Elastic Nut M6 |
| 7740a | 516004752 | Shock Knob Adjustment Decal |
| 7750 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 7760 | 503193166 | Plate |
