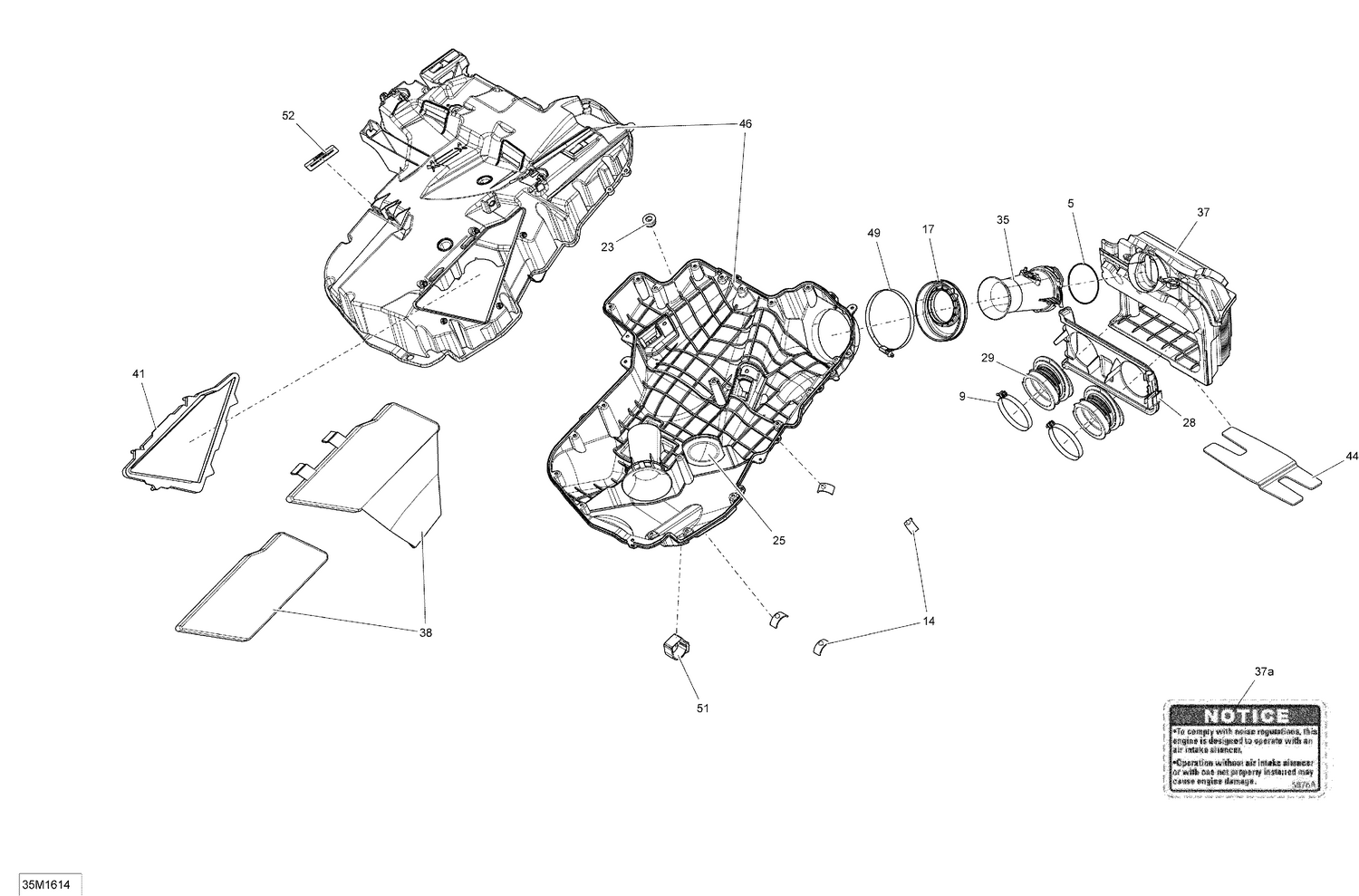

02- Air Intake System
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 293300115 | O-Ring |
| 9 | 508000346 | Gemi Clamp |
| 14 | 508000537 | Stopper |
| 17 | 508000548 | Boot |
| 23 | 508000574 | Grommet |
| 25 | 508000590 | Cap |
| 28 | 508000613 | Plate Adapter |
| 29 | 508000614 | Air Intake Adapter |
| 35 | 508000662 | Flute |
| 37 | 508000660 | Primary Chamber Ass'y |
| 37a | 516005876 | Notice Decal, Air Intake Silencer |
| 38 | 508000698 | FILTER - Call your local BRP dealership |
| 41 | 508000546 | Air Filter |
| 41 | 508000700 | Air Filter |
| 44 | 508000739 | Insulated Foam |
| 46 | 508000780 | Secondary Chamber Ass'y |
| 49 | 514052983 | Norma Gear Clamp |
| 51 | 508000820 | Velcro Strip |
