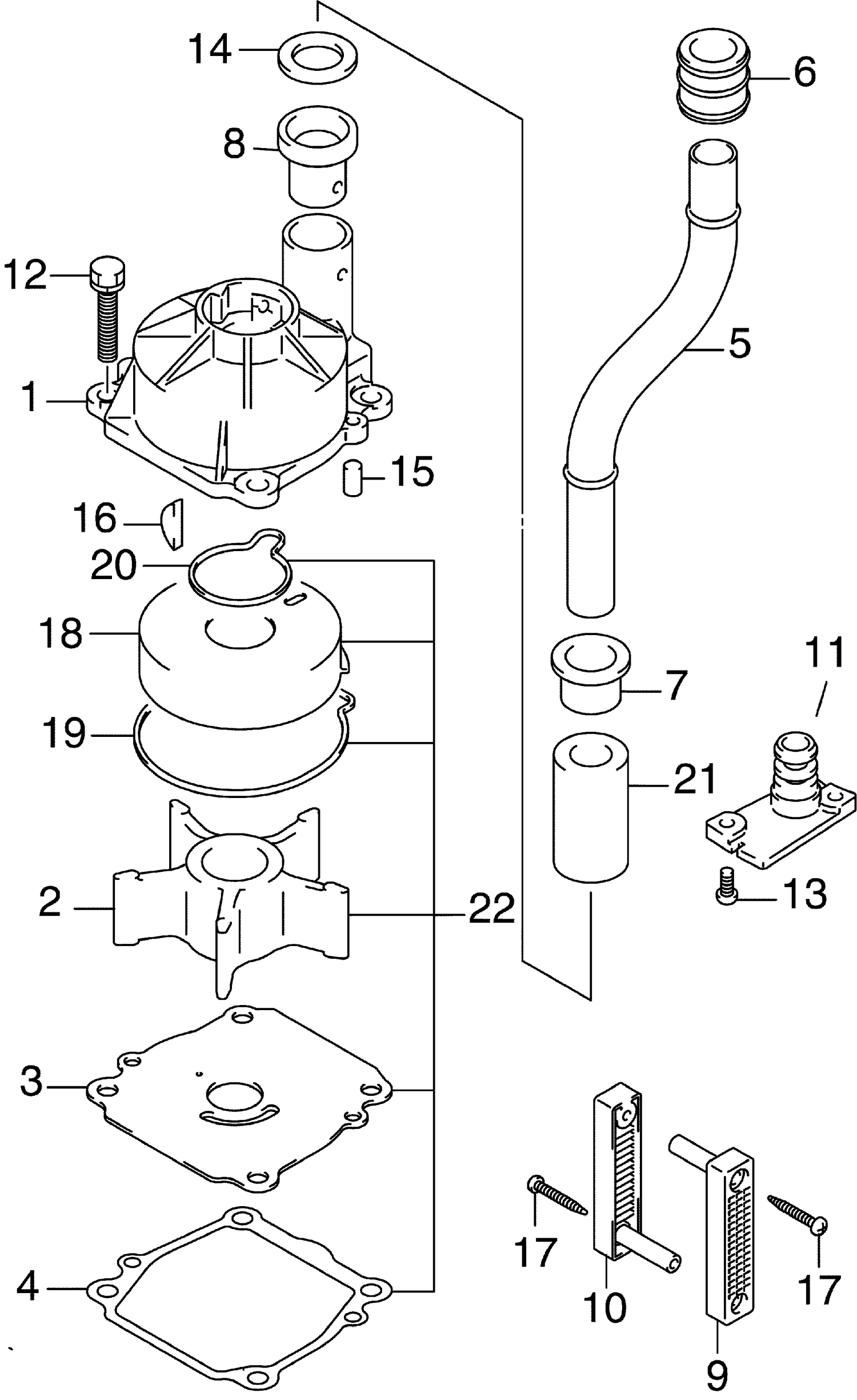

WATER PUMP SN 032267 & Later
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5037169 | CASE, WATER PUMP |
| 5 | 5033544 | TUBE, WATER - 25 IN. MODELS This part replaces 5037172. |
| 5 | 5037171 | TUBE, WATER - 20 IN. MODELS |
| 6 | 5033717 | BUSHING, WATER TUBE |
| 7 | 5030728 | BUSHING |
| 8 | 5030729 | BUSHING |
| 9 | 5032594 | FILTER, Water - Port |
| 10 | 5032595 | FILTER, Water - Stbd |
| 11 | 5034509 | PLUG |
| 12 | 5036712 | BOLT (8X45mm) |
| 13 | 5030406 | SCREW |
| 14 | 5030461 | WASHER |
| 15 | 5030508 | PIN |
| 16 | 5034842 | KEY |
| 17 | 5034510 | SCREW |
| 18 | 5037173 | SLEEVE, Water pump case |
| 19 | 5037174 | SEAL, Water pump case |
| 20 | 5037175 | SEAL, Water pump case |
