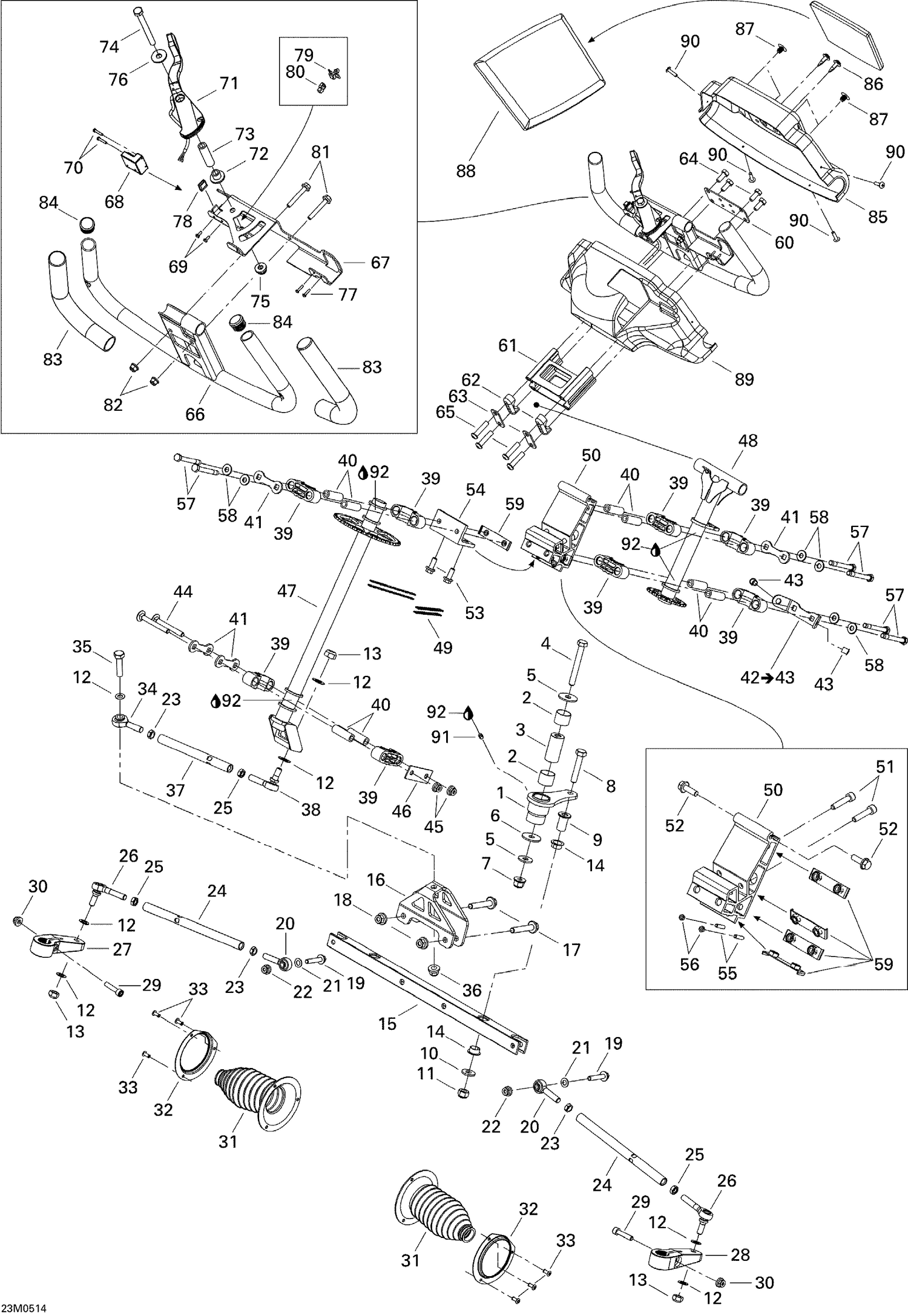

07- Steering System
Parts (90)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506151623 | LH SWIVEL ARM - Call your local BRP dealership |
| 2 | 506149900 | BUSHING SWIVEL - Call your local BRP dealership |
| 3 | 506150100 | PIVOT SWIVEL - Call your local BRP dealership |
| 4 | 207008086 | Hex. Screw M10 X 80 |
| 5 | 506150000 | Washer 10 mm |
| 6 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 7 | 250100105 | Flange Nut M10 This part replaces 732610084. |
| 8 | 207005544 | Hex. Screw M10 X 55 |
| 9 | 506147300 | BAR PIVOT - Call your local BRP dealership |
| 10 | 224002251 | FLAT WASHER - Call your local BRP dealership |
| 11 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 12 | 503175800 | Washer |
| 13 | 232501416 | Elastic Flange Nut M10 |
| 14 | 503191555 | Swivel Bushing This part replaces 506150200. |
| 15 | 506151842 | Swivel Bar |
| 16 | 506151750 | Swivel Bar Plate |
| 17 | 207605544 | Hex. Flange Screw M10 X 55 |
| 18 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 19 | 207684044 | Hex. Flange Screw M8 X 40 |
| 20 | 506151496 | LH BALL JOINT - Call your local BRP dealership |
| 21 | 506151252 | Washer |
| 22 | 233281414 | Hex. Flange Elastic Nut M8 |
| 23 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 24 | 506151374 | Tie-Rod |
| 25 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 26 | 506151491 | Ball Joint |
| 27 | 506145800 | RH STEERING ARM - Call your local BRP dealership |
| 28 | 506145900 | LH STEERING ARM - Call your local BRP dealership |
| 29 | 205083544 | SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership |
| 30 | 233281414 | Hex. Flange Elastic Nut M8 |
| 31 | 570070500 | TIE-ROD CAP - Call your local BRP dealership |
| 32 | 506151100 | RETAINER RING - Call your local BRP dealership |
| 33 | 390402300 | Pop Rivet 3/16" |
| 34 | 506151810 | LH Ball Joint |
| 35 | 207004544 | Hex. Screw M10 X 45 |
| 36 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 37 | 506151585 | Inside Tie-Rod |
| 38 | 506151492 | RH BALL JOINT - Call your local BRP dealership |
| 39 | 506150400 | Housing Half |
| 40 | 506150500 | Housing Bushing |
| 41 | 506150600 | Stopper Plate |
| 43 | 293450275 | Insert This part replaces 415107300. |
| 44 | 207787044 | Carriage Bolt M8 X 70 |
| 45 | 233281414 | Hex. Flange Elastic Nut M8 |
| 46 | 506151934 | Reinforcement Plate |
| 47 | 506151586 | Inferior Main Tube |
| 48 | 506151744 | Superior Main Tube |
| 49 | 506151755 | Chain #35 |
| 50 | 506151734 | Superior Bracket |
| 51 | 205583544 | Socket Head Screw M8 X 35, Scotch Grip |
| 52 | 210282540 | Hex. Forming Screw M8 X 25 |
| 53 | 207682044 | Hex. Flange Screw M8 X 20 |
| 54 | 506151749 | Tensionner |
| 55 | 206252044 | Socket Set Screw M5 X 20 |
| 56 | 232051600 | Hex. Nut M5 |
| 57 | 207286544 | Hex. Screw M8 X 65, Scotch Grip |
| 58 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 59 | 506151841 | Bracket |
| 60 | 506151757 | Plate |
| 61 | 506151756 | Extension |
| 62 | 709400919 | Steering Support This part replaces 506151622. |
| 63 | 709400509 | Stiffner This part replaces 506151196. |
| 64 | 250000118 | Hex. Screw With Nylon |
| 65 | 205483546 | SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership |
| 66 | 506151589 | Steering |
| 67 | 506151965 | Control Support |
| 68 | 506151850 | Switch Holder |
| 69 | 207130860 | HEX. SCREW M3 X 08 - Call your local BRP dealership |
| 70 | 205431660 | Socket Head Screw M3 X 16 |
| 71 | 512060021 | Lever Ass'y |
| 72 | 506151763 | Pivot Bushing |
| 73 | 506151762 | Bushing |
| 74 | 207088044 | Hex. Screw M8 X 80 |
| 75 | 233281414 | Hex. Flange Elastic Nut M8 |
| 76 | 234082410 | Flat Washer 8 mm |
| 77 | 250000022 | SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 78 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 79 | 293750010 | Tie-rap Mount |
| 80 | 293750002 | Tie Wrap 142 mm |
| 81 | 207664044 | Hex. Flange Screw M6 X 40 |
| 82 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 83 | 506151914 | Grip |
| 84 | 572110800 | CAP, BLACK - Call your local BRP dealership |
| 85 | 506151865 | Front Pad |
| 86 | 211000088 | SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership |
| 87 | 293730010 | Black Dart |
| 88 | 506151592 | Steering Pad |
| 89 | 506151962 | Back Envelope |
