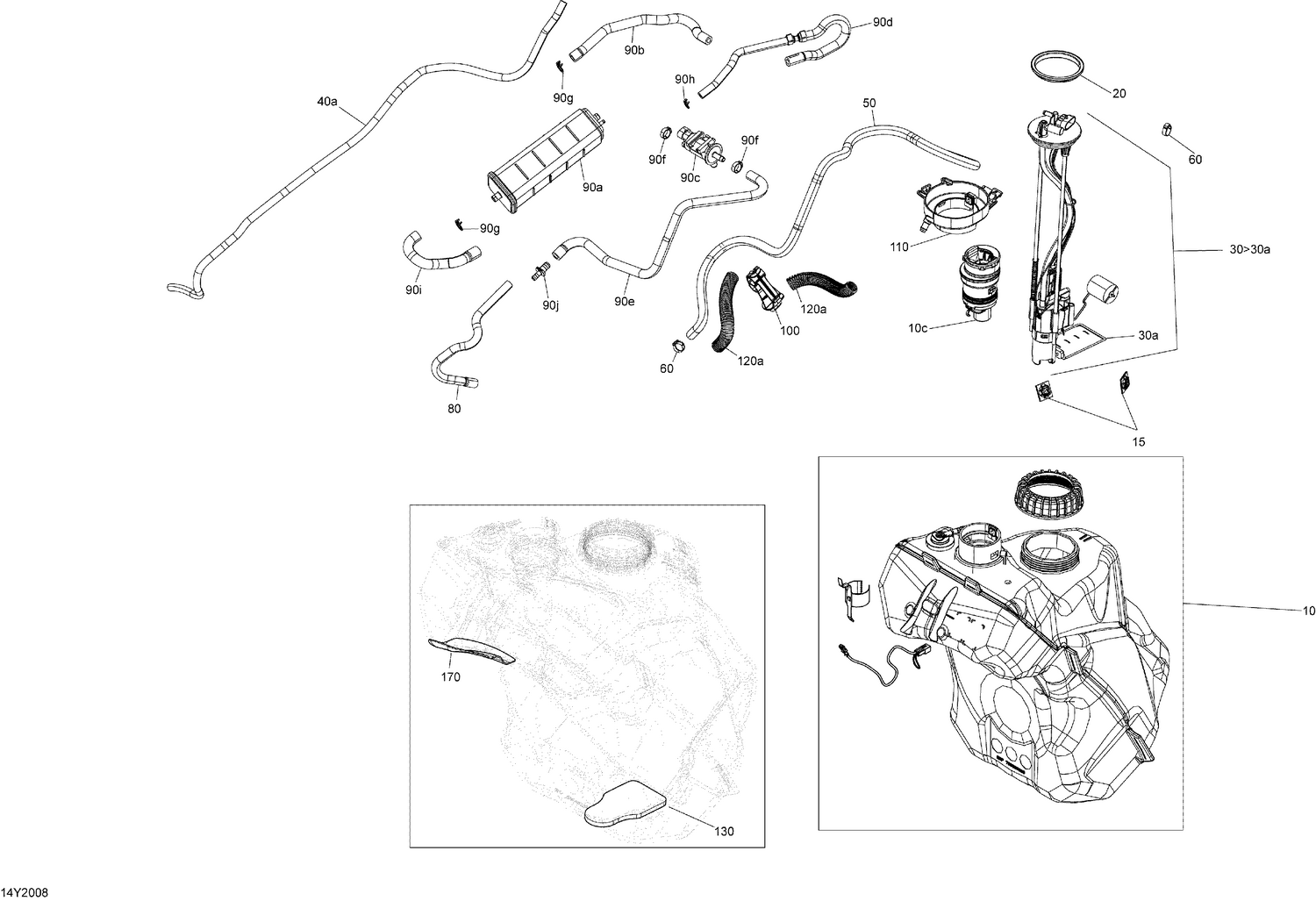

02- Fuel System
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715007296 | TANK_FUEL - Call your local BRP dealership This part replaces 709001194. |
| 15 | 293750040 | Tie-rap Mount (square - self-adhsive) |
| 20 | 709000208 | Seal |
| 30a | 715900322 | Prefilter Fuel Pump Kit 86mm Long |
| 50 | 709001052 | Hose Fuel |
| 60 | 293650047 | Crimp Clamp, 15.3-706R |
| 80 | 709001053 | Hose Fuel Vapor |
| 90a | 709000931 | Fuel Vapor Canister Carbon Activated |
| 90b | 709001582 | Charcoal Canister Hose This part replaces 709000861. |
| 90c | 709000991 | Bleed Selenoid Valve |
| 90d | 709001584 | Charcoal Canister Hose Ass'y This part replaces 709001006. |
| 90e | 709000863 | Hose Fuel Vapor |
| 90f | 293650047 | Crimp Clamp, 15.3-706R |
| 90g | 293650294 | Hose Clamp 15.5mm-17.5mm (Spring Type) |
| 90h | 293650295 | Hose Clamp 9.8mm-11.5mm (Spring Type) |
| 90i | 709000959 | Hose Fuel Vapor |
| 90j | 709000705 | Flow Reducer |
| 100 | 709001051 | Hose Holder |
| 110 | 709001036 | Anchorage Support |
| 130 | 709001087 | Rubber Pad |
