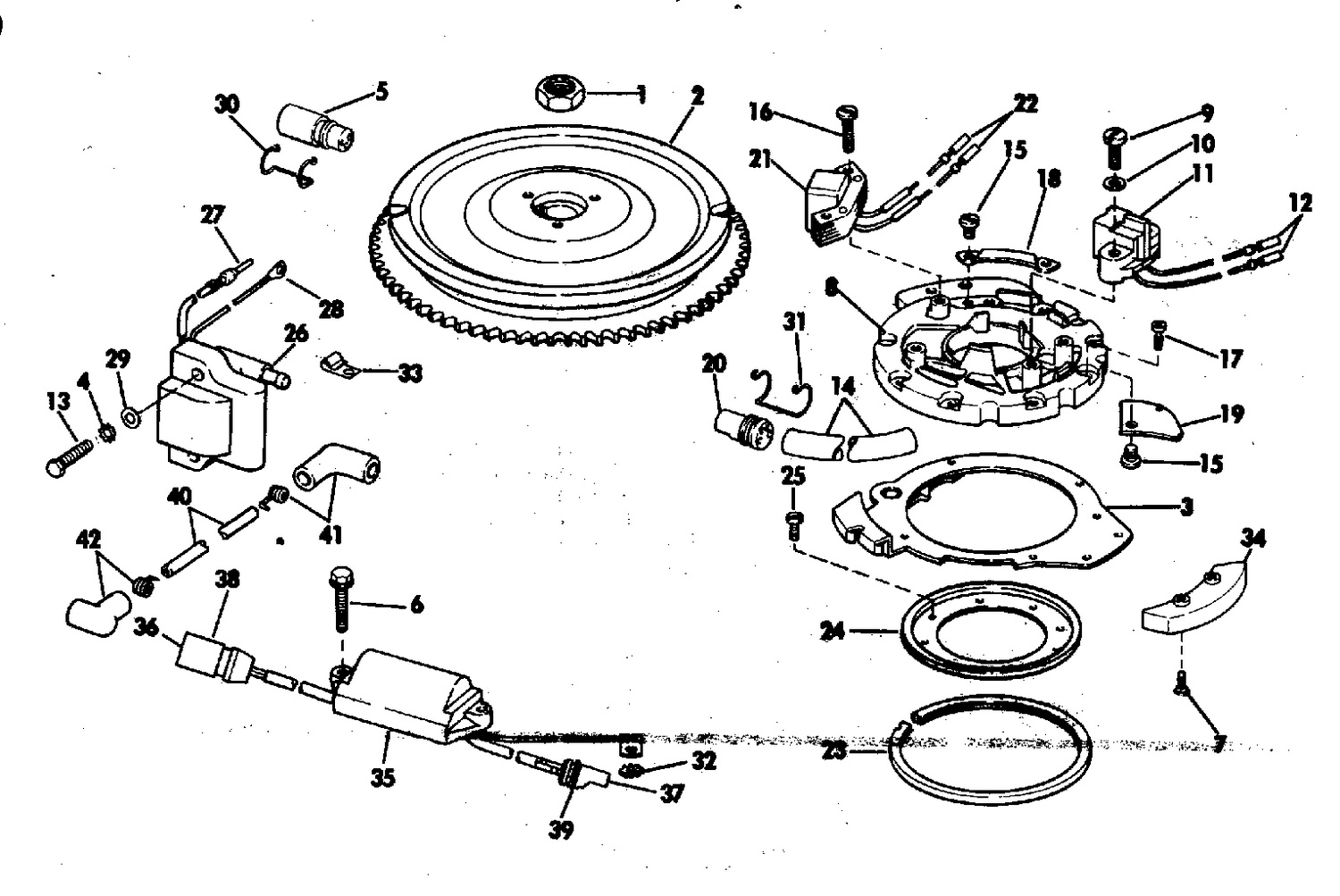

| Ref | Part Number | Description |
|---|
| 3 |
0396031 |
RETAINER & LINK ASSEMBLY This part replaces 0390256. |
| 6 |
0328726 |
SCREW (Use existing coil screw) This part replaces 0323796. |
| 7 |
0331036 |
VIS, attache de palier This part replaces 0320468. |
| 11 |
0583387 |
SENSOR ASSEMBLY This part replaces 0581655. |
| 14 |
0511482 |
SLEEVE |
| 17 |
0511460 |
VIS, dispositif de retenue |
| 18 |
0511458 |
COLLIER, fils |
| 19 |
0511459 |
CACHE, fils |
| 21 |
0581670 |
CHARGE COIL This part replaces 0581635. |
| 23 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 24 |
0322102 |
PLATE, Support |
| 25 |
0319547 |
SCREW, Clamp & ground lead |
| 26 |
0582106 |
COIL ASSY |
| 29 |
0306407 |
LOCCKWASHER,Cover latch |
| 31 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 34 |
0326876 |
CAM, Throttle control |
| 35 |
0581927 |
POER PACK ASSY |
| 38 |
0511449 |
COMMECTOR, Coil to power pack |
| 40 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
