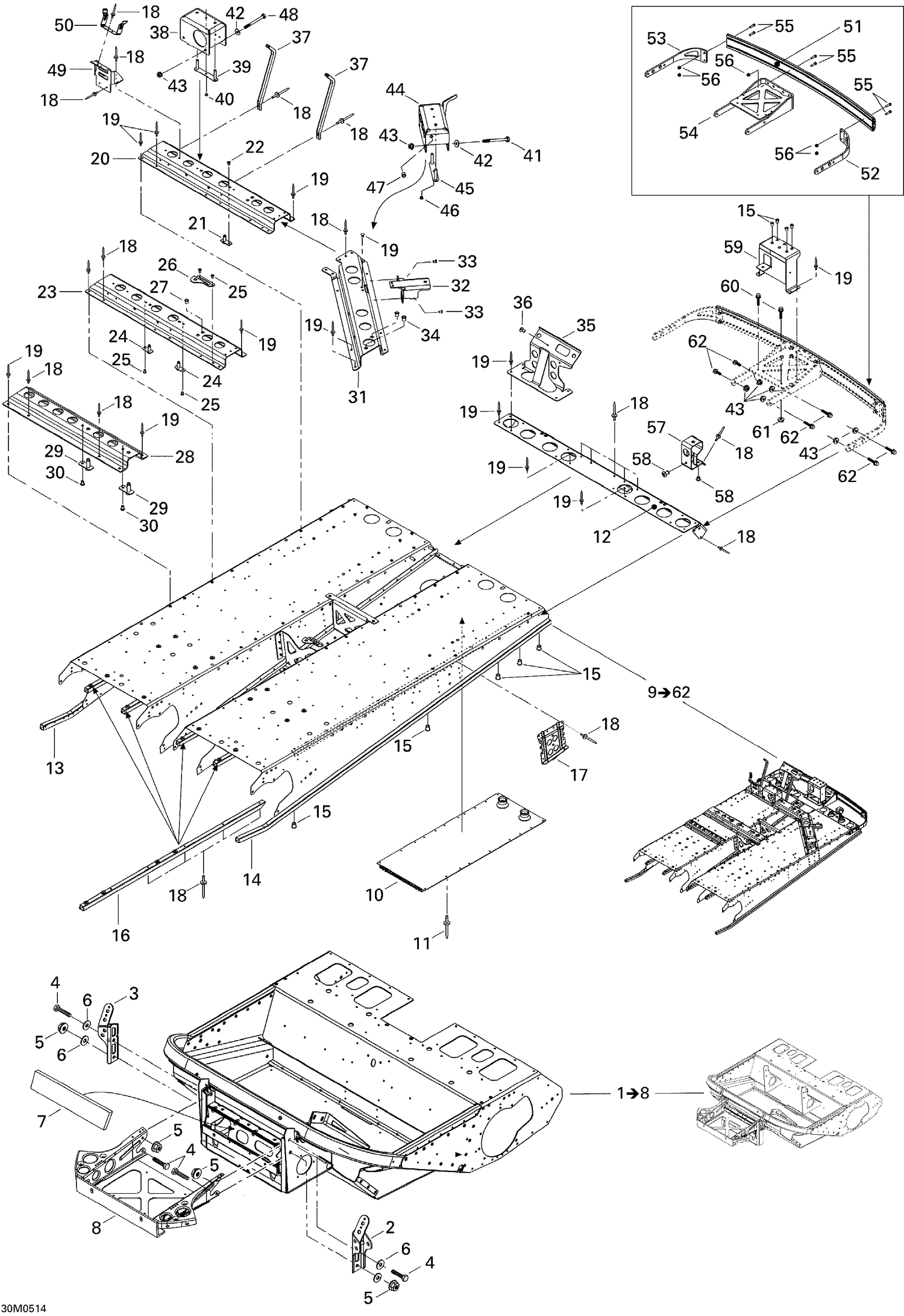

09- Frame
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 518323072 | Shock Bracket LH |
| 3 | 518323071 | Shock Bracket RH |
| 4 | 207085044 | Hex. Screw M8 X 50 |
| 5 | 233281414 | Hex. Flange Elastic Nut M8 |
| 6 | 506151245 | Washer |
| 7 | Not | Available As Spare Part - Seal |
| 8 | 518323839 | Front Bumper Attachment |
| 10 | 518324722 | Rear Radiator Ass'y |
| 11 | 390402200 | Pop Rivet 3/16" |
| 12 | 518322984 | Rear Cap |
| 13 | 518323076 | Tunnel Reinforcement RH |
| 14 | 518323077 | Tunnel Reinforcement LH |
| 15 | 293450275 | Insert This part replaces 415107300. |
| 16 | 518323866 | Tunnel Protector |
| 17 | 518323109 | Rear Bracket RH |
| 17 | 518323111 | Rear Bracket LH |
| 18 | 390402200 | Pop Rivet 3/16" |
| 19 | 390402300 | Pop Rivet 3/16" |
| 20 | 518323116 | Frame Tunnel Rear Member |
| 21 | 518323321 | Seat Bracket |
| 22 | 390402200 | Pop Rivet 3/16" |
| 23 | 518323116 | Frame Tunnel Rear Member |
| 24 | 518323321 | Seat Bracket |
| 25 | 390402200 | Pop Rivet 3/16" |
| 26 | 518323680 | Welded Plate |
| 27 | 293450275 | Insert This part replaces 415107300. |
| 28 | 518323641 | Frame Tunnel Front Member |
| 29 | 518323321 | Seat Bracket |
| 30 | 390402200 | Pop Rivet 3/16" |
| 31 | 518323562 | Frame Tunnel Angle Member |
| 32 | 518323702 | Exhaust Support |
| 33 | 390402200 | Pop Rivet 3/16" |
| 34 | 293450275 | Insert This part replaces 415107300. |
| 35 | 518323859 | Radiator Lower Support |
| 36 | 390402200 | Pop Rivet 3/16" |
| 37 | 518323864 | Radiator Upper Support |
| 38 | 518323287 | Engine Support RH |
| 39 | 518323288 | Fixation Plate |
| 40 | 390402200 | Pop Rivet 3/16" |
| 41 | 207089044 | Hex. Screw M8 X 90 |
| 42 | 234082410 | Flat Washer 8 mm |
| 43 | 233281414 | Hex. Flange Elastic Nut M8 |
| 44 | 518323305 | Engine Support LH |
| 45 | 518323288 | Fixation Plate |
| 46 | 390402200 | Pop Rivet 3/16" |
| 47 | 293450275 | Insert This part replaces 415107300. |
| 48 | 230080044 | SCREW-HEX. M8 X 100 - Call your local BRP dealership |
| 49 | 518323662 | Belt Guard Rear Support |
| 50 | 518202100 | Belt Guard Bracket |
| 51 | 518323118 | Rear Bumper |
| 52 | 518323119 | Plate Bracket LH |
| 53 | 518323496 | Plate Bracket RH |
| 54 | 518324342 | Center Bracket |
| 55 | 207162548 | Hex. Screw M6 X 25 |
| 56 | 233261494 | Hex. Flange Elastic Nut M6 |
| 57 | 518323872 | Muffler Support LH |
| 58 | 390402200 | Pop Rivet 3/16" |
| 59 | 518324343 | Muffler Support |
| 60 | 207662044 | Hex. Flange Screw M6 X 20 |
