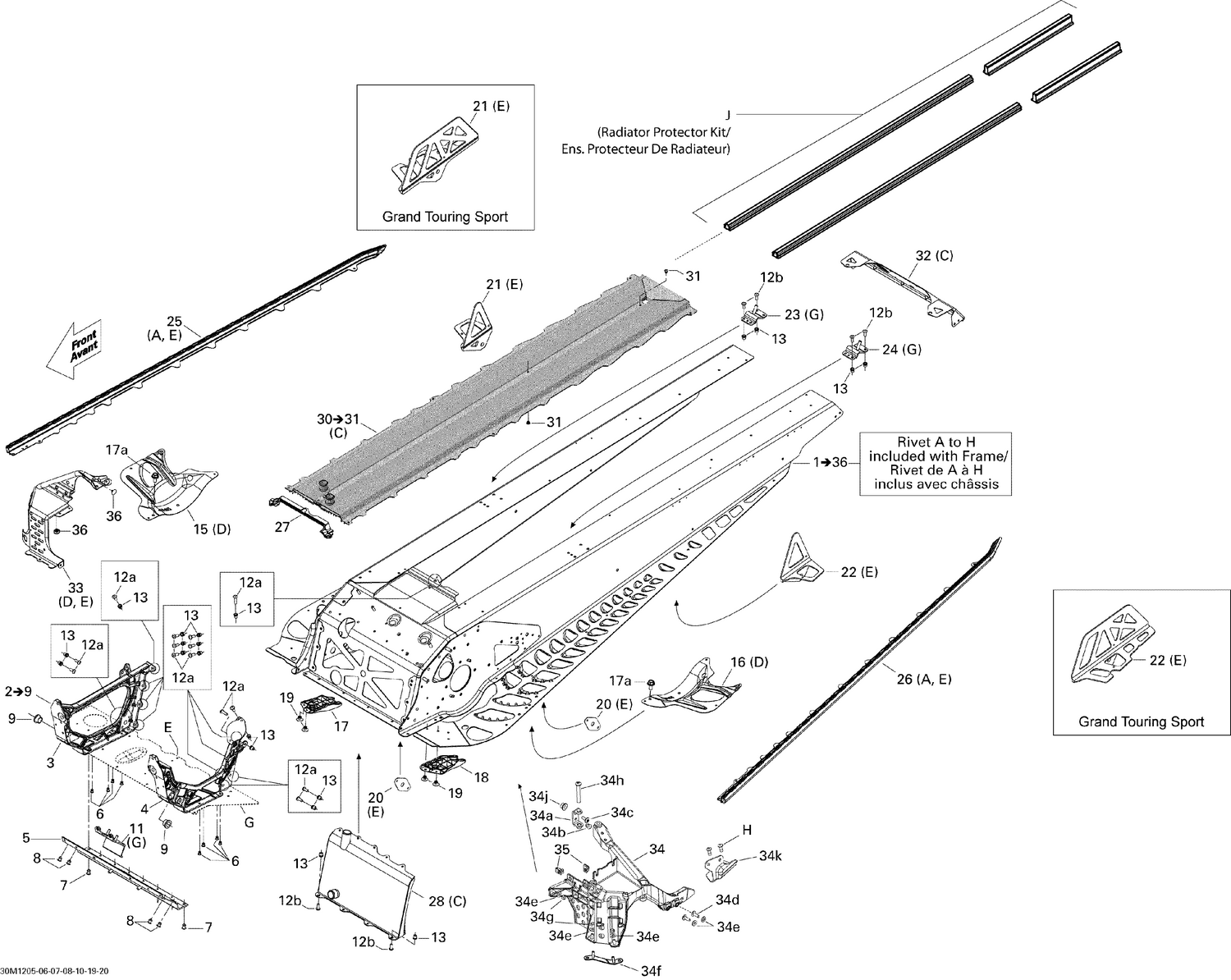

09- Frame — Parts Catalog

Parts (49)

Ref	Part Number	Description
A	390402300	Pop Rivet 3/16"
C	390909200	Avex Rivet
D	390909100	Avex Rivet
E	293150144	Stavex Rivet
F	293150146	Henrob Rivet
G	293150174	Hemlock Rivet, 6.4 mm
H	293150194	Interlock Rivet 3/16''
3	518326795	RH Member
4	518326796	LH Member
5	518326198	Front Member
6	293150144	Stavex Rivet
7	293150120	Hemlock Rivet 6.5 mm
8	293150119	Hemlock Rivet, 6.5 mm
9	505072690	Leg Bushing
11	518325943	MAG Engine Support
12a	207662044	Hex. Flange Screw M6 X 20
12b	207661644	Hex. Flange Screw M6 X 16
13	233261414	Hex. Flange Elastic Nut M6 x 1.0
15	518324874	RH Reinforcement
16	518324875	LH Reinforcement
17	518325782	RH Deflector, Black Polypropylene
17a	207561244	Hex. Flange Screw M6 X 12, Scotch Grip
18	518325783	LH Deflector, Black Polypropylene
19	293150104	Pop Rivet 3/16"
20	518326647	Reinforcement Plate
21	518328789	RH Bracket This part replaces 518326050.
22	518328790	LH Bracket This part replaces 518326051.
23	518325973	RH Rear Base
24	518325974	LH Rear Base
25	518325377	RH ROLLER - Call your local BRP dealership
26	518325378	LH Roller
27	518326656	Seal
28	518326485	Front Radiator
31	293150144	Stavex Rivet
32	518327105	Rear Cap This part replaces 518325421.
33	518328938	RH Stirup This part replaces 518326216.
34	518326820	LH Stirup
34a	518326961	U-Attach
34b	293150266	Ornit Rivet 6,5 X 14.5 This part replaces 293150147.
34c	250000534	Tork Screw M6 X 16
34d	250000536	Tork Screw M6 X 18
34e	250200039	Flat Washer
34f	518326986	Attach
34g	232561414	Elastic Stop Nut M6
34h	250000535	Torx Screw M8 X 55
34j	233061414	Hex. Flange Nut M6
34k	518326960	Support
35	250000958	Panel Nut M5 X 0.8 This part replaces 250000079.
36	293730042	Full Moon Dart 5 mm
