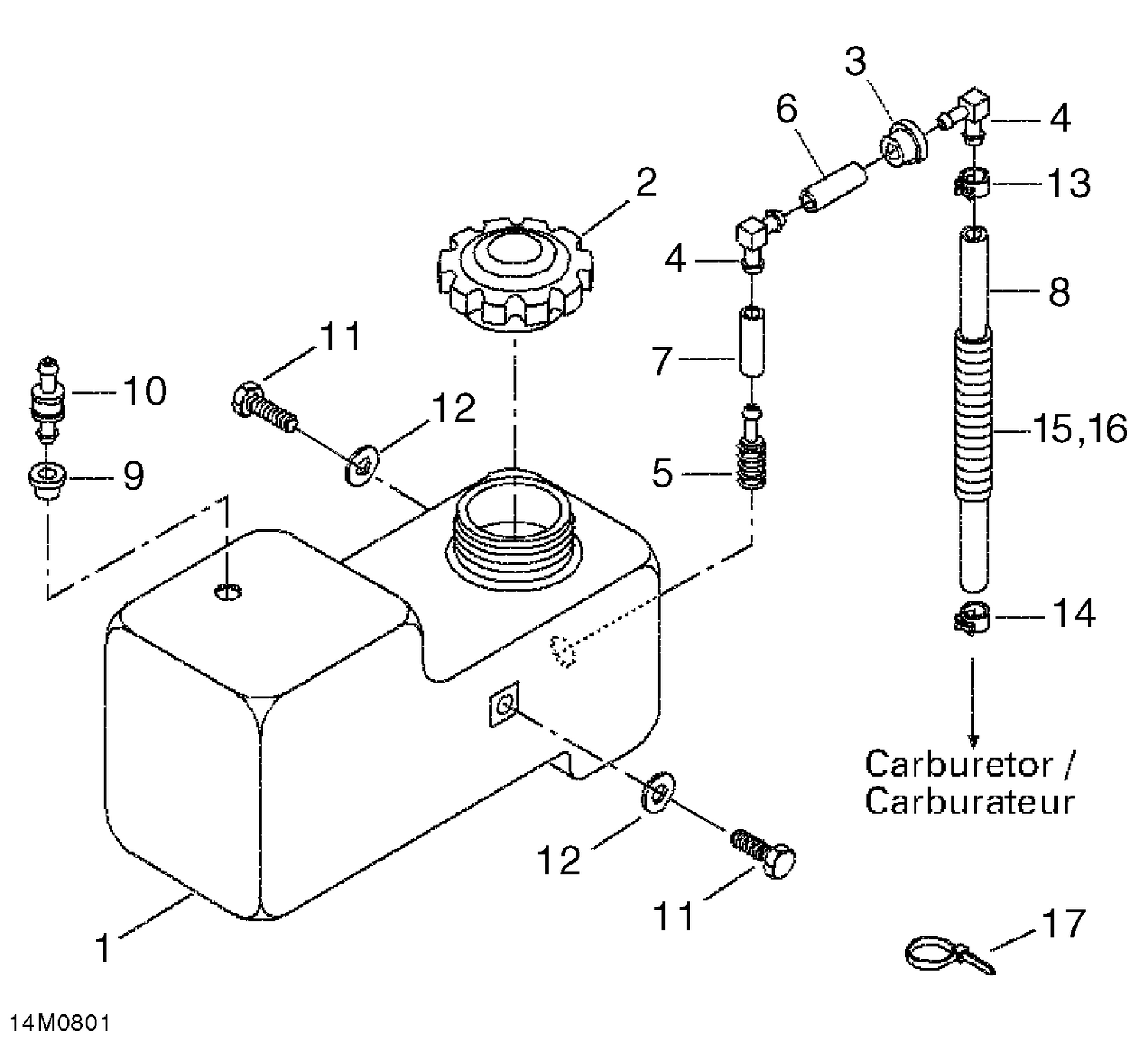

02- Fuel System
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 571009800 | FUEL TANK - Call your local BRP dealership |
| 2 | 513033025 | Fuel Tank Cap This part replaces 572039600. |
| 3 | 570045500 | Grommet |
| 4 | 414580600 | Elbow Male Connector |
| 5 | 414865700 | Fuel Filter |
| 6 | 219704410 | Polyurethane Hose 10000Mm Long |
| 7 | 219704410 | Polyurethane Hose 10000Mm Long |
| 8 | 513033394 | Line |
| 9 | 570027700 | GROMMET - Call your local BRP dealership |
| 10 | 275500398 | Check Valve |
| 11 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 12 | 224061121 | Flat Washer |
| 13 | 414420700 | Spring Clamp |
| 14 | 293650170 | Tridon Gear Clamp |
| 15 | 219704407 | Tubing 10 MM 1000MM Long |
| 16 | 219704407 | Tubing 10 MM 1000MM Long |
