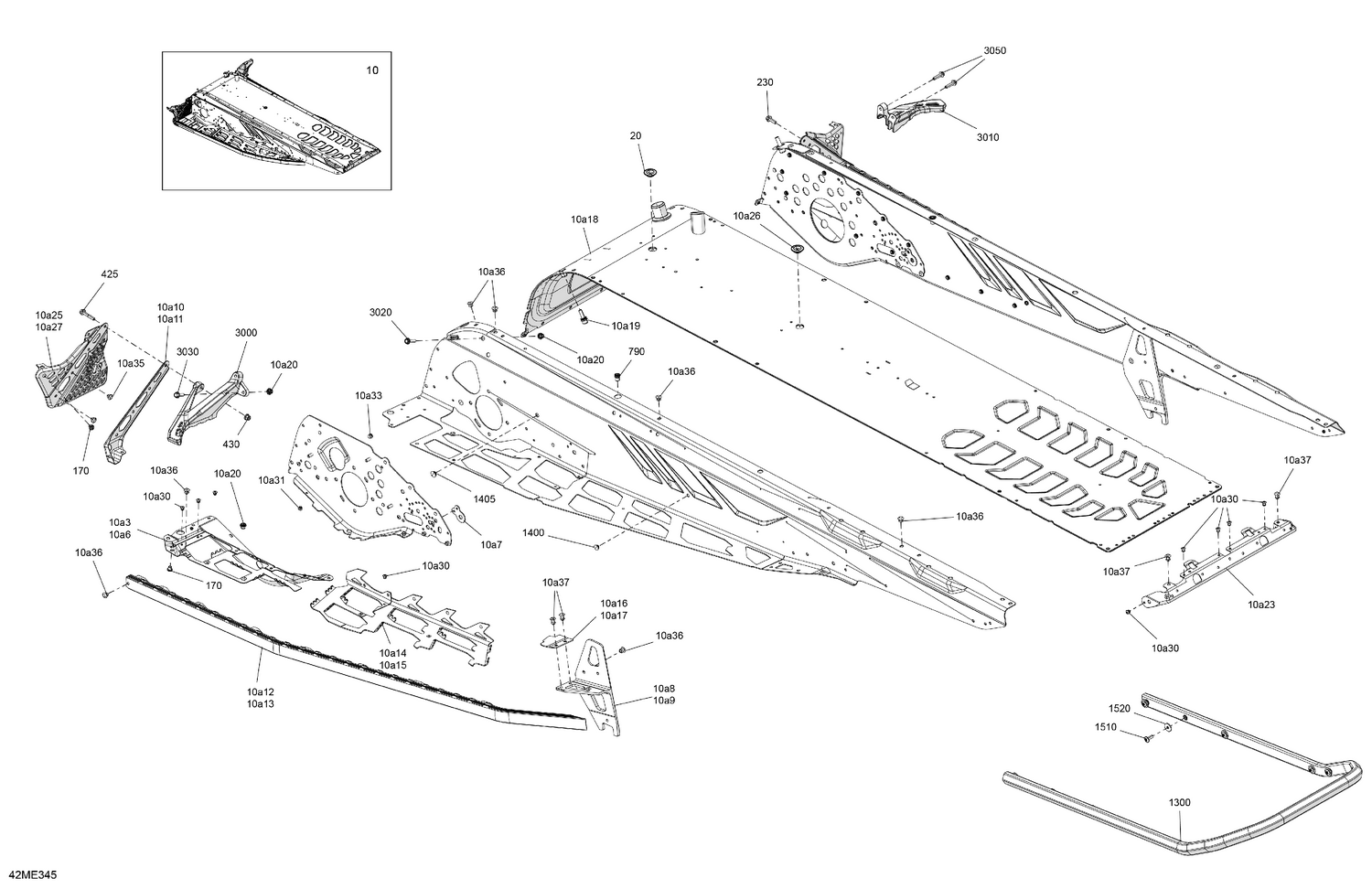

06- Frame - System - Rear Section
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 10a10 | 518334507 | Stirrup Reinforcement |
| 10a11 | 518332924 | Deep Black, LH Chassis Reinforcement |
| 10a12 | 518328451 | RH Roller |
| 10a13 | 518328452 | LH Roller |
| 10a14 | 518334842 | Central Rear Tunnel Reinforcement |
| 10a15 | 518334843 | LH Central Reinforcement Tunnel |
| 10a16 | 518329088 | LH Reinforcement Plate |
| 10a17 | 518329089 | RH Reinforcement Plate |
| 10a18 | 518335127 | Radiator Tunnel 146 |
| 10a19 | 250300652 | Protruding Stud M8 x 22 |
| 10a20 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 10a23 | 518328990 | Rear Cap |
| 10a25 | 518333006 | RH Footrest |
| 10a26 | 293730052 | Black, Plug |
| 10a27 | 518333858 | LH Footrest |
| 10a3 | 518332578 | RH Footrest Reinforcement |
| 10a30 | 293150203 | Rivet Avibulb 3/16 |
| 10a31 | 293150237 | Avibulb Rivet 4.8 X 12.1 |
| 10a33 | 293150245 | Henrob Rivet |
| 10a35 | 293150264 | Rivet Ornit 6,5 X 10.5 |
| 10a36 | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 10a37 | 293150267 | Rivet Ornit 6,5 X 16.5 |
| 10a6 | 518332577 | LH Footrest Reinforcement |
| 10a7 | 518335959 | Front Suspension Arm Reinforcement This part replaces 518329659. |
| 10a8 | 518334900 | LH Suspension Support |
| 10a9 | 518334901 | RH Suspension Support |
| 20 | 293730052 | Black, Plug |
| 170 | 293450267 | Insert M5 - 0.8 |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 425 | 207663546 | Hex. Flange Screw M6 x 35 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 790 | 293450278 | Insert |
| 1300 | 518329553 | Rear Bumper 146 |
| 1400 | 293730047 | Black, Dart 8 mm |
| 1405 | 293730060 | Black, Dart 10 mm |
| 1510 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 | 224061201 | Flat Washer |
| 3000 | 518334924 | LH Front Stirup |
| 3010 | 518329134 | Toe Hold |
| 3020 | 250000793 | Hex. Flange Screw M6 X 25 |
| 3030 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
