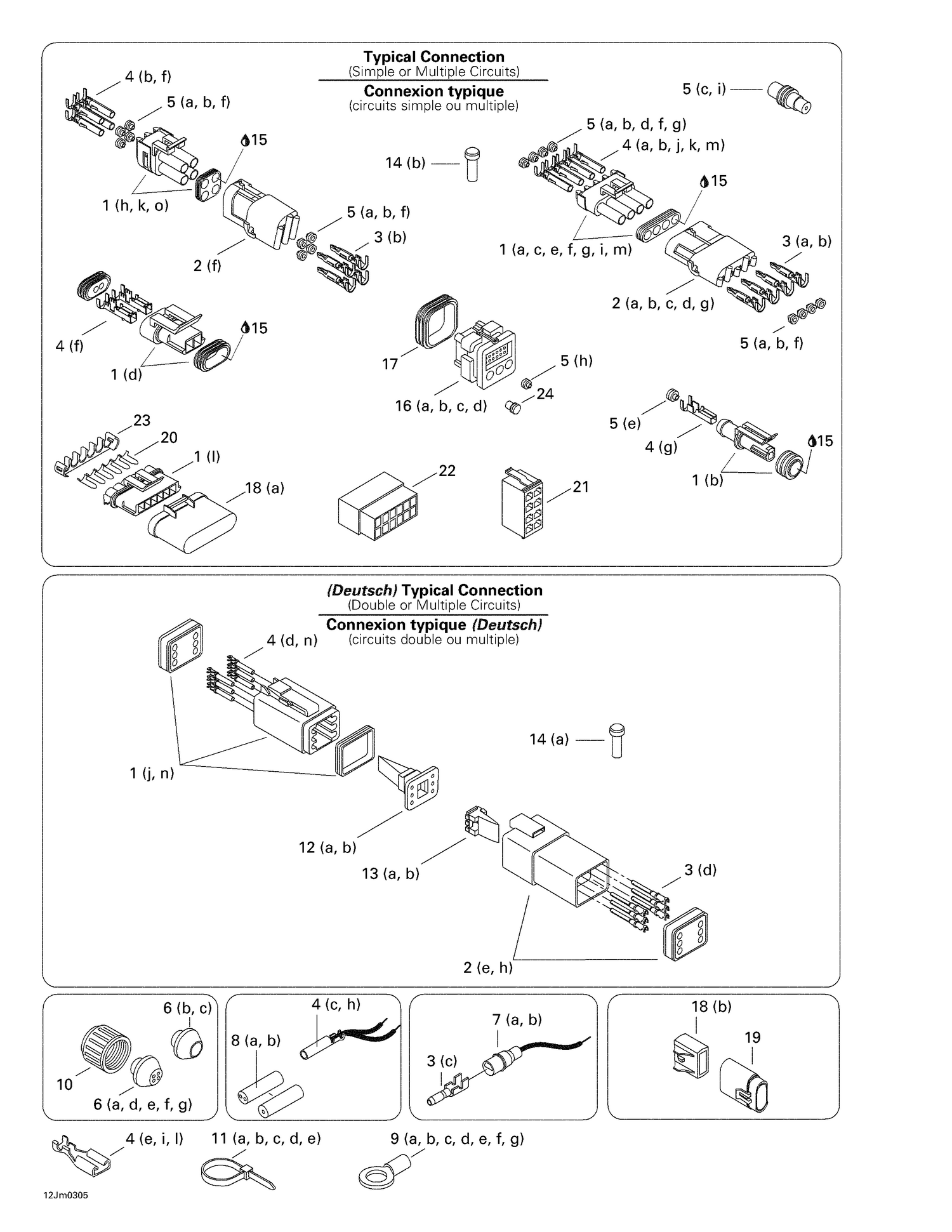

| Ref | Part Number | Description |
|---|
| 1a |
278000219 |
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership |
| 1b |
278001012 |
Male Housing, 1 Circuit |
| 1c |
278000220 |
Male Connector, 2 Circuits |
| 1d |
278001113 |
Male Connector, 2 Circuits |
| 1e |
278001005 |
Male Housing, 2 Circuits |
| 1f |
278000997 |
Male Housing, 3 Circuits |
| 1g |
278000273 |
Male Housing, 3 Circuits |
| 1h |
278001308 |
MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership |
| 1i |
278000395 |
Male Housing, 4 Circuits |
| 1j |
278000739 |
Male Connector, 4 Circuits |
| 1k |
278000891 |
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership |
| 1l |
278001327 |
Male Housing, 6 Circuits, Packard |
| 1m |
278000221 |
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| 1n |
710001540 |
CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736. |
| 1o |
278001318 |
Male Housing, 6 Circuits, Amp |
| 2a |
278000161 |
Female Housing, 1 Circuit |
| 2b |
278000217 |
Female Housing, 2 Circuits |
| 2c |
278000281 |
Female Terminal Housing, 3 Circuits |
| 2d |
278000394 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 2e |
278000635 |
Female Housing, 4 Circuits |
| 2f |
278000890 |
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership |
| 2g |
278000156 |
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| 2h |
710001539 |
Male Terminal Housing, 6 Circuits This part replaces 270000137. |
| 3a |
409004300 |
Male Terminal |
| 3b |
278000222 |
Male Terminal |
| 3c |
278000230 |
Male Terminal |
| 3d |
278000631 |
Male Terminal |
| 4a |
409007300 |
Female Terminal |
| 4b |
278000223 |
Female Terminal |
| 4c |
278001009 |
Female Terminal |
| 4d |
278000632 |
Female Terminal |
| 4e |
278000228 |
FEMALE TERMINAL - Call your local BRP dealership |
| 4f |
278001114 |
Female Terminal |
| 4g |
278001014 |
Female Terminal |
| 4h |
278000995 |
FEMALE TERMINAL - Call your local BRP dealership |
| 4i |
278000994 |
FEMALE TERMINAL - Call your local BRP dealership |
| 4j |
278001310 |
Female Terminal |
| 4k |
278000998 |
Female Terminal |
| 4l |
409011700 |
FEMALE TERMINAL - Call your local BRP dealership |
| 4m |
278001210 |
FEMALE TERMINAL - Call your local BRP dealership |
| 4n |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership |
| 5a |
278000218 |
Wire Seal |
| 5b |
278001065 |
Wire Seal |
| 5c |
278000216 |
Wire Seal |
| 5d |
710000048 |
Wire Seal |
| 5e |
278001013 |
Wire Seal |
| 5f |
278000996 |
WIRE SEAL - Call your local BRP dealership |
| 5g |
278000999 |
Wire Seal |
| 5h |
278001223 |
Seal |
| 5i |
293000070 |
SEALING CAP - Call your local BRP dealership |
| 6a |
293720030 |
Grommet, 1 Circuit, Blue |
| 6b |
278000098 |
GROMMET - Call your local BRP dealership |
| 6c |
278000682 |
Grommet |
| 6d |
293720025 |
GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership |
| 6e |
278000193 |
GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership |
| 6f |
570026800 |
Grommet, 4 Circuit, Red |
| 6g |
293720034 |
Grommet |
| 7a |
278000231 |
Insulation Sheath |
| 7b |
278001008 |
Insulated Sheath |
| 8a |
278001007 |
Insulated Sheath |
| 8b |
278000770 |
Insulated Sheath |
| 9a |
278000992 |
Open Barrel |
| 9b |
409003200 |
OPEN BARREL - Call your local BRP dealership |
| 9c |
278000300 |
Ring Terminal |
| 9d |
278001138 |
Open Barrel, 8 mm |
| 9e |
278001165 |
Open Barrel |
| 9f |
278001323 |
Open Barrel, Amp |
| 9g |
278001324 |
Open Barrel, Amp |
| 10 |
278000100 |
Electric Wire Cap |
| 11a |
293750001 |
Tie Wrap 94 mm |
| 11b |
293750002 |
Tie Wrap 142 mm |
| 11c |
293750009 |
Tie-Rap 173 mm |
| 11d |
414115200 |
Tie-Rap 180 mm |
| 11e |
293750008 |
Tie Wrap 368 mm |
| 12a |
278000738 |
Male Lock, 4 Circuits |
| 12b |
278000737 |
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 13a |
278000636 |
Female Wedge, 4 Circuits |
| 13b |
278000735 |
Female Lock, 6 Circuits |
| 14a |
293000052 |
Sealing Cap |
| 14b |
293000070 |
SEALING CAP - Call your local BRP dealership |
| 15 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 16b |
278001062 |
Male Terminal Housing, 26 Circuits |
| 16c |
278001063 |
MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership |
| 16d |
278001211 |
MALE CONNECTOR, 26 CIRCUITS - Call your local BRP dealership |
| 17 |
278001307 |
WIRE SEAL - Call your local BRP dealership |
| 18a |
278001330 |
Cap, 6 Circuits, Packard |
| 18b |
278001326 |
Fuse Holder Cap |
| 19 |
278001325 |
Fuse Holder |
| 20 |
278001329 |
Buss Bar, Packard |
| 21 |
278001321 |
MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership |
| 22 |
278001322 |
Male Housing, 2 Circuits, Molex |
| 23 |
278001328 |
Secondary Lock, Packard |
