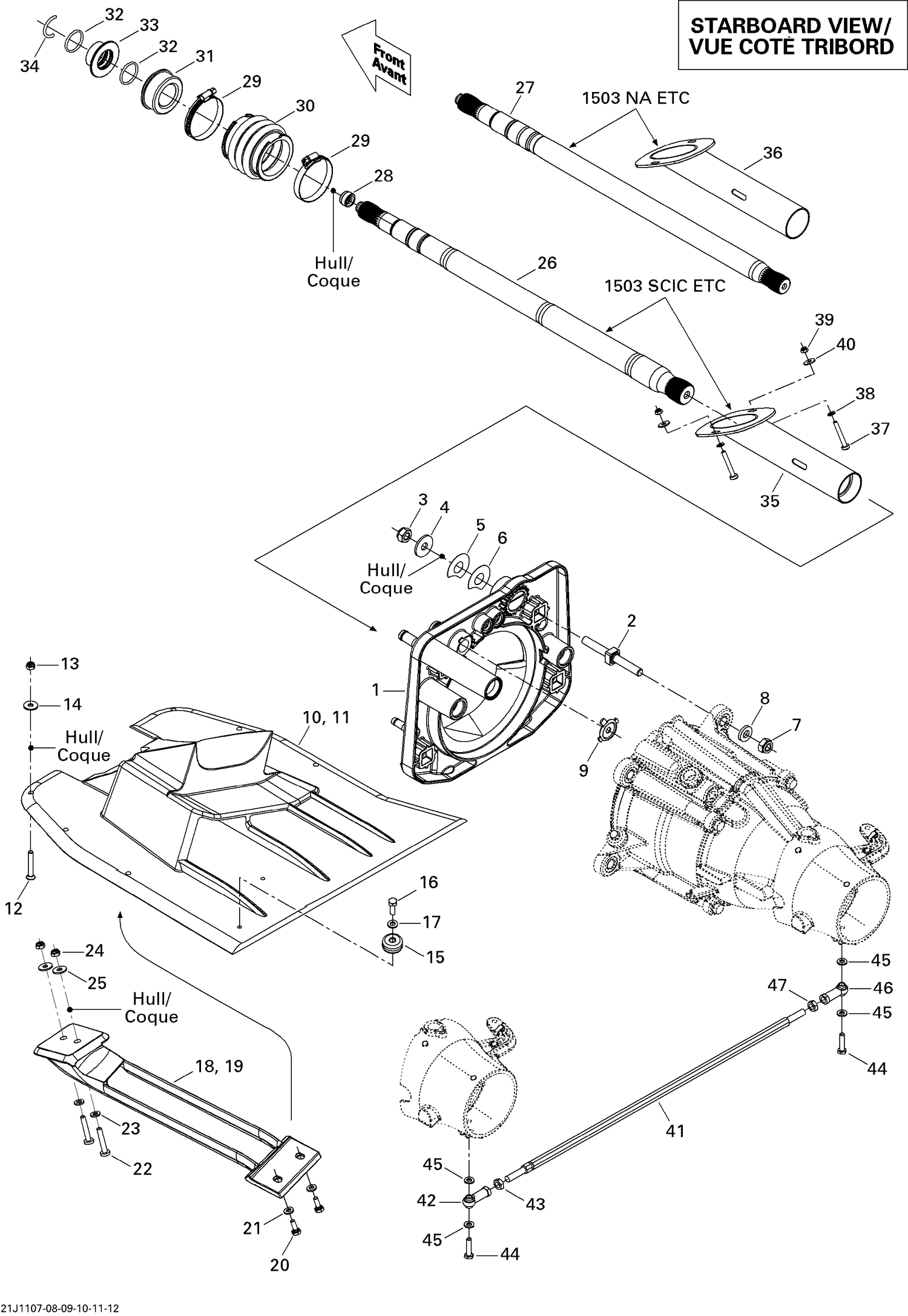

| Ref | Part Number | Description |
|---|
| 1 |
204120313 |
PUMP SUPPORT - Call your local BRP dealership |
| 2 |
250300022 |
Square Stud |
| 3 |
232501200 |
Elastic Stop Nut M10, Brass |
| 4 |
234002600 |
Flat Washer 10 mm, Stainless |
| 5 |
272000053 |
Shim 0.3 mm |
| 6 |
0460011 |
NEEDS DESCRIPTION This part replaces 204120067. |
| 7 |
232501200 |
Elastic Stop Nut M10, Brass |
| 8 |
211200051 |
Flat Washer |
| 9 |
291004649 |
Reducer This part replaces 291001887. |
| 10 |
271001705 |
RIDE PLATE - Call your local BRP dealership |
| 11 |
271001706 |
RIDE PLATE - Call your local BRP dealership |
| 12 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 13 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 14 |
234062600 |
Flat Washer M6, Stainless |
| 15 |
271001813 |
Anode Zinc This part replaces 271001487. |
| 16 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 17 |
234061600 |
Stainless Flat Washer M6 |
| 20 |
207161660 |
Hex. Screw M6 X 16 |
| 21 |
234061600 |
Stainless Flat Washer M6 |
| 22 |
208663560 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 23 |
234061600 |
Stainless Flat Washer M6 |
| 24 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 25 |
234062600 |
Flat Washer M6, Stainless |
| 26 |
204120284 |
Drive Shaft |
| 27 |
XXX |
Not Available As Spare Parts |
| 28 |
272000173 |
Drive Shaft Plug |
| 29 |
293650077 |
Norma Clamp |
| 30 |
272000183 |
Bellows |
| 31 |
295501200 |
Carbon Ring Kit This part replaces 272000177. |
| 32 |
293300044 |
O-Ring |
| 33 |
295501200 |
Carbon Ring Kit This part replaces 272000176. |
| 34 |
271001575 |
C-Clip |
| 35 |
271001834 |
SHAFT GUARD ASSY - Call your local BRP dealership This part replaces 271001715. |
| 36 |
XXX |
Not Available As Spare Parts |
| 37 |
208653560 |
Phillips Screw M5 X 35 |
| 38 |
234051600 |
Flat Washer M5, Stainless |
| 39 |
232551600 |
Hex. Elastic Nut M5 |
| 40 |
234052600 |
Flat Washer 5 mm, Stainless |
| 41 |
271001686 |
ROD-LINK NOZZLE - Call your local BRP dealership |
| 42 |
204120075 |
BALL JOINT - Call your local BRP dealership |
| 43 |
211100034 |
HEX. NUT 5/16-24 - Call your local BRP dealership |
| 44 |
207163060 |
Hex. Screw M6 X 30 |
| 45 |
234061600 |
Stainless Flat Washer M6 |
| 46 |
204120074 |
BALL JOINT - Call your local BRP dealership |
