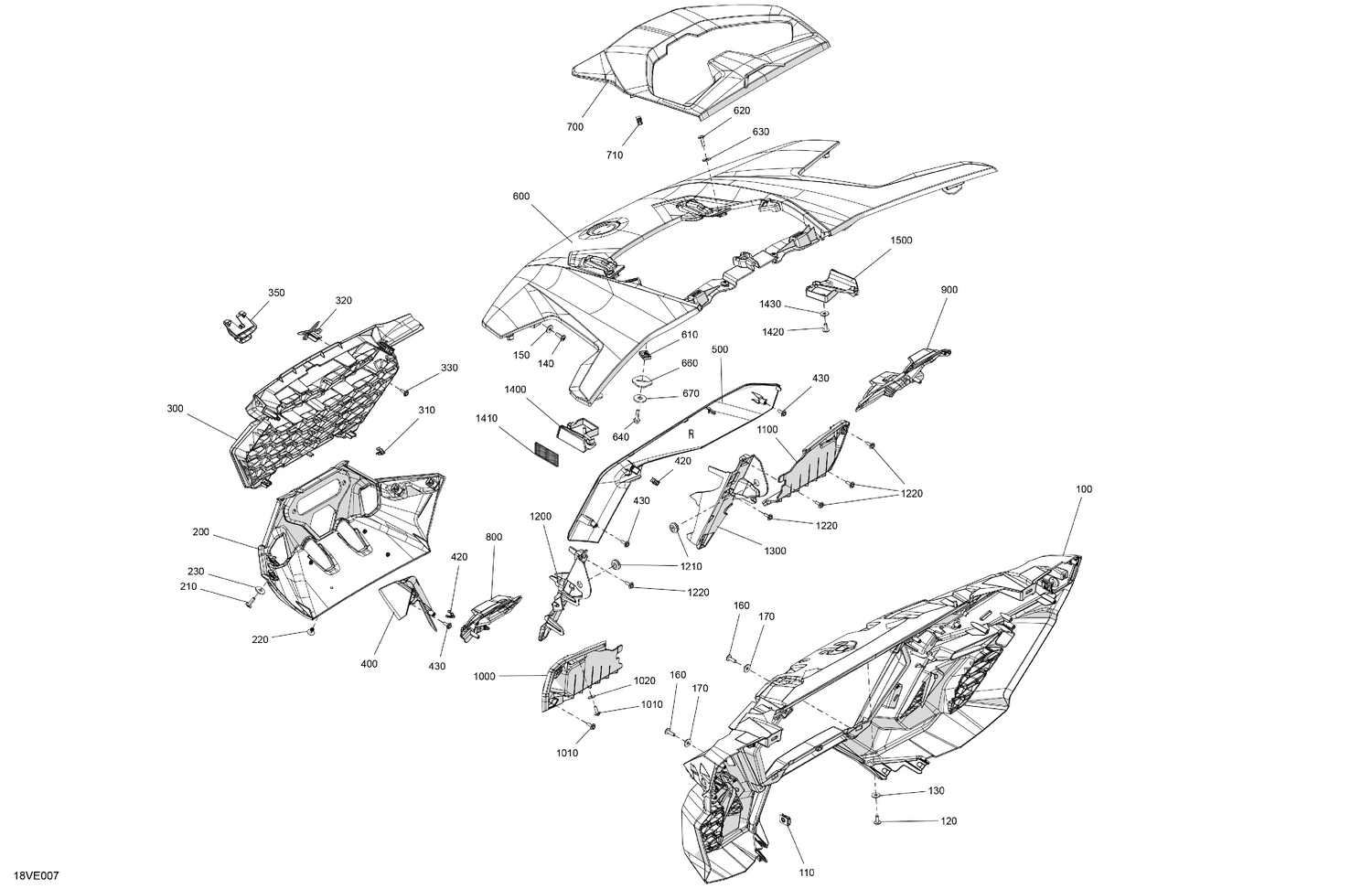

07- Body - Hood
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 708500006 | Front Fascia |
| 110 | 250100208 | Panel Nut M6 X 1.0 |
| 120 | 250000721 | Torx Truss Screw M6 X 16 |
| 130 | 234062670 | Stainless Steel Flat Washer |
| 140 | 250000722 | Torx Screw M6 X 20 |
| 150 | 234062670 | Stainless Steel Flat Washer |
| 160 | 250000722 | Torx Screw M6 X 20 |
| 170 | 234062670 | Stainless Steel Flat Washer |
| 200 | 708500012 | Front Deflector |
| 210 | 250000722 | Torx Screw M6 X 20 |
| 220 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 230 | 234062670 | Stainless Steel Flat Washer |
| 300 | 708500007 | Deep Black, Grille |
| 310 | 517306478 | Clip |
| 320 | 705017645 | Emblem Logo BRP |
| 330 | 250000725 | Screw M4 X 16 |
| 350 | 708500031 | Grille Trim |
| 400 | 708500016 | Deep Black, LH Front Fairing Trim |
| 420 | 517306478 | Clip |
| 430 | 250000959 | Screw PT Type K-50 X 16 |
| 500 | 708500017 | Deep Black, RH Front Fairing Trim |
| 600 | 708500095 | Legion Red, Hood |
| 610 | 250100208 | Panel Nut M6 X 1.0 |
| 620 | 250000722 | Torx Screw M6 X 20 |
| 630 | 234062670 | Stainless Steel Flat Washer |
| 640 | 207562544 | Hex. Flange Screw M6 X 25 |
| 660 | 705003841 | Support Plate |
| 670 | 250200029 | Washer M6 |
| 700 | 708500003 | Deep Black, Central Hood Trim |
| 710 | 517306478 | Clip |
| 800 | 708500018 | LH Front Headlight Trim |
| 900 | 708500019 | RH Front Headlight Trim |
| 1000 | 708500024 | LH Front Body Panel Cap |
| 1010 | 250000959 | Screw PT Type K-50 X 16 |
| 1020 | 250200025 | Washer M5 |
| 1100 | 708500025 | RH Front Body Panel Cap |
| 1200 | 708500021 | LH Radiator Deflector |
| 1210 | 293720130 | Overmolded Grommet |
| 1220 | 250000959 | Screw PT Type K-50 X 16 |
| 1300 | 708500022 | RH Radiator Deflector |
| 1400 | 708500029 | LH Front Reflector Support |
| 1410 | 520002680 | Amber, Reflector |
| 1420 | 250000721 | Torx Truss Screw M6 X 16 |
| 1430 | 234062670 | Stainless Steel Flat Washer |
