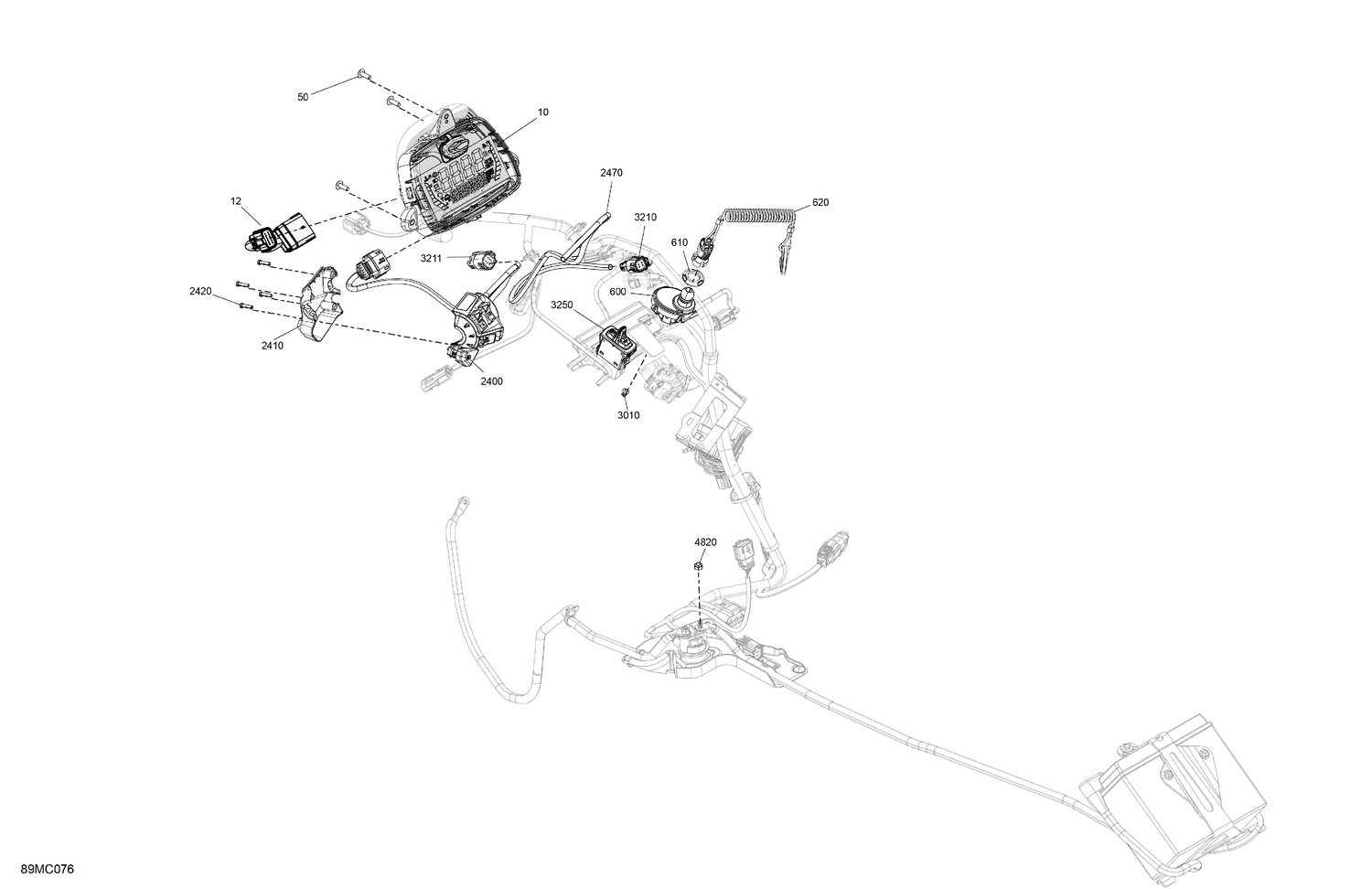

08- Electric - Upper Section
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178226 | Cadran Multifonction Grand Couleur |
| 12 | 515179304 | Junction Wiring Harness |
| 50 | 250001131 | Torx Truss PT K40 x 12 |
| 600 | 515179305 | Terminal DESS One Wire |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 2400 | 515178102 | LH Switch Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 3010 | 515177929 | Rivet |
| 3210 | 515178177 | BLoc Femelle 4 Circuits |
| 3211 | 515178202 | Coil Connector |
| 3250 | 515178501 | Rocket Switch |
