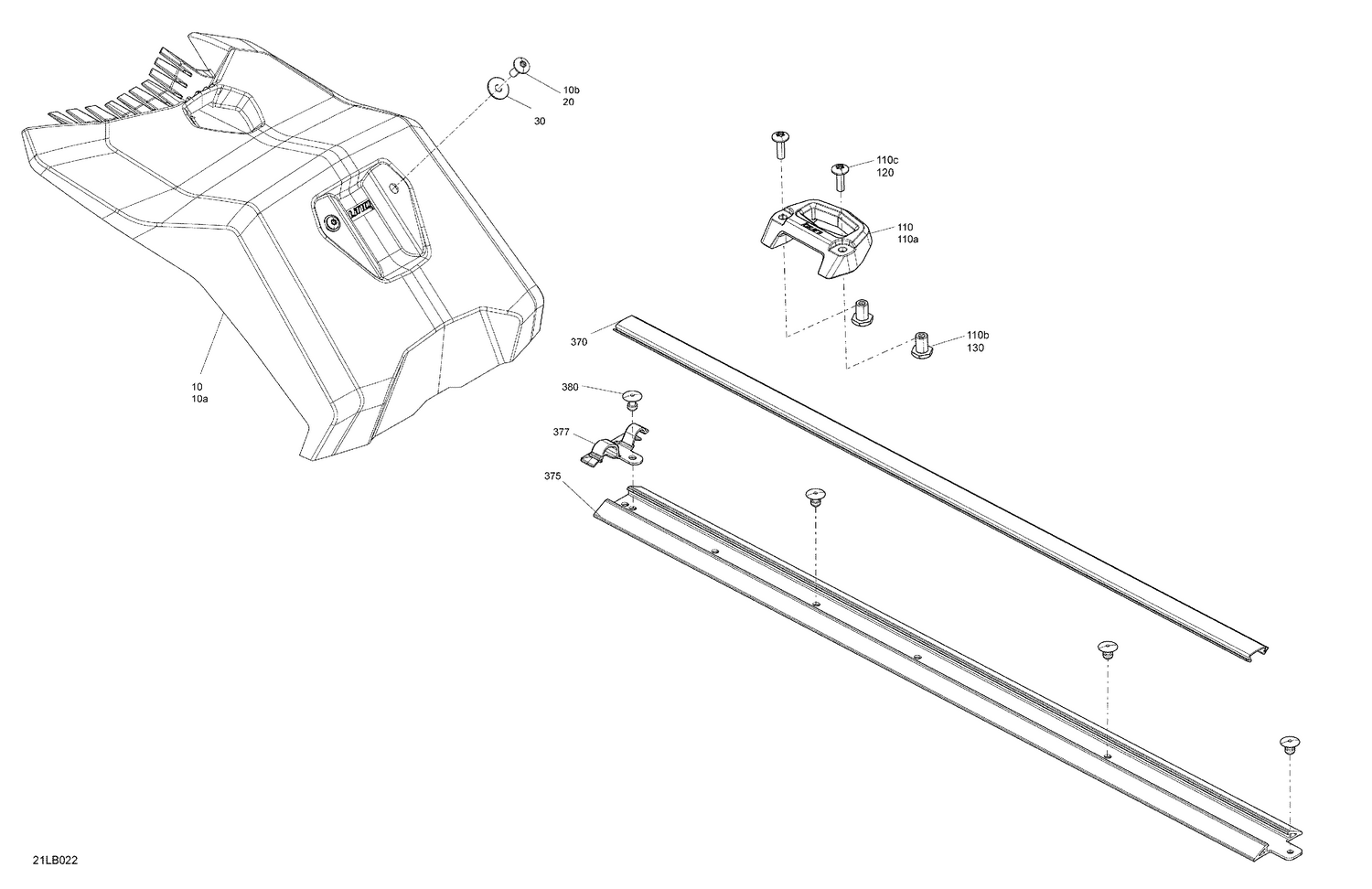

07- Body - Cargo
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 511001053 | Battery Cover |
| 10b | 250001005 | Torx Screw M6 X 16 |
| 20 | 250000721 | Torx Truss Screw M6 X 16 |
| 30 | 20117 | Washer |
| 110a | 860201806 | Luggage Rack Base With Hardware |
| 110b | 511000822 | Insert |
| 110c | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 120 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 130 | 511000822 | Insert |
| 370 | 520002921 | Radiator Trim This part replaces 520001719. |
| 375 | 520002930 | Wire Protector This part replaces 520001703. |
| 377 | 520001722 | Cap |
