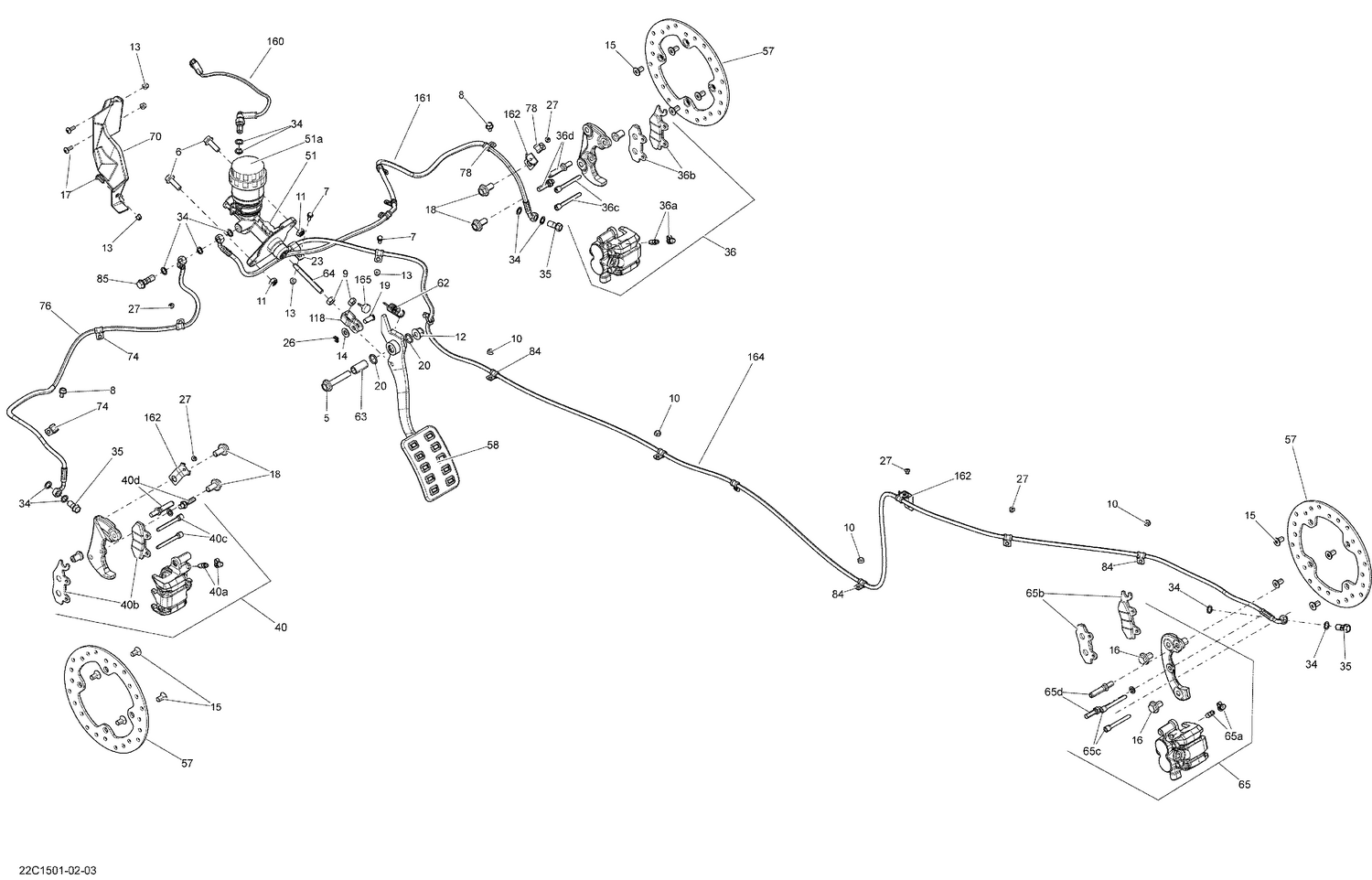

06- Brakes _22C1503
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 207605544 | Hex. Flange Screw M10 X 55 |
| 6 | 207682534 | Hex. Flange Screw M8 X 25 |
| 7 | 210251650 | Hex. Forming Screw M5 X 16 This part replaces 210251680. |
| 8 | 210261040 | Hex. Flange Screw M6 X 10 |
| 9 | 232081414 | Hex. Nut M8 |
| 10 | 232561434 | Elastic Stop Nut M6 |
| 11 | 232581414 | Hex. Elastic Stop Nut M8 |
| 12 | 233201414 | Hex. Flange Elastic Nut M10 |
| 13 | 233251494 | Elastic Flange Nut M5 |
| 14 | 234081430 | Flat Washer M8 |
| 15 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 16 | 250000060 | Flange Screw M10 X 16, Scotch Grip |
| 17 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 18 | 250001134 | Hex. Flange Screw M10 X 20 This part replaces 250000601. |
| 19 | 250400058 | Pin |
| 20 | 293300144 | O-Ring |
| 23 | 293650220 | Clamp |
| 26 | 371800700 | Cotter Pin |
| 27 | 390402200 | Pop Rivet 3/16" |
| 34 | 705601628 | Copper Washer This part replaces 705600310. |
| 35 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 36 | 705600678 | RH Caliper |
| 36a | 705600080 | Bleeding Screw |
| 36b | 715500336 | RH Brake Pad Kit |
| 36c | 715500337 | Sliding Pin Kit |
| 36d | 715500383 | Spring Boot Bolt Kit |
| 40 | 705600679 | LH Caliper |
| 40a | 705600080 | Bleeding Screw |
| 40b | 715500335 | LH Brake Pad Kit |
| 40c | 715500337 | Sliding Pin Kit |
| 40d | 715500383 | Spring Boot Bolt Kit |
| 51 | 705601505 | Master Cylinder Ass'y This part replaces 705600681. |
| 51a | 715500332 | Diaphragm Cap Kit |
| 57 | 705600684 | Brake Disc |
| 58 | 705600724 | Brake Pedal |
| 62 | 705600792 | Brake Pedal Spring |
| 63 | 705600815 | Inner Spacer |
| 64 | 705600833 | Master Cylinder Rod |
| 65 | 705600872 | Rear Caliper |
| 65a | 705600080 | Bleeding Screw |
| 65b | 715500336 | RH Brake Pad Kit |
| 65c | 715500337 | Sliding Pin Kit |
| 65d | 715500383 | Spring Boot Bolt Kit |
| 70 | 705600917 | LH Front Deflector |
| 74 | 293650256 | Clamp This part replaces 715900250. |
| 76 | 705600943 | LH Front Hose |
| 78 | 293650256 | Clamp This part replaces 715900250. |
| 84 | 293650256 | Clamp This part replaces 715900250. |
| 85 | 705600958 | Banjo Bolt |
| 118 | 705601142 | Yoke |
| 160 | 705601250 | Brake Switch |
| 161 | 705601265 | RH Front Hose |
| 162 | 705601337 | Bracket |
| 164 | 705601391 | Rear Flexible Hose Ass'y |
