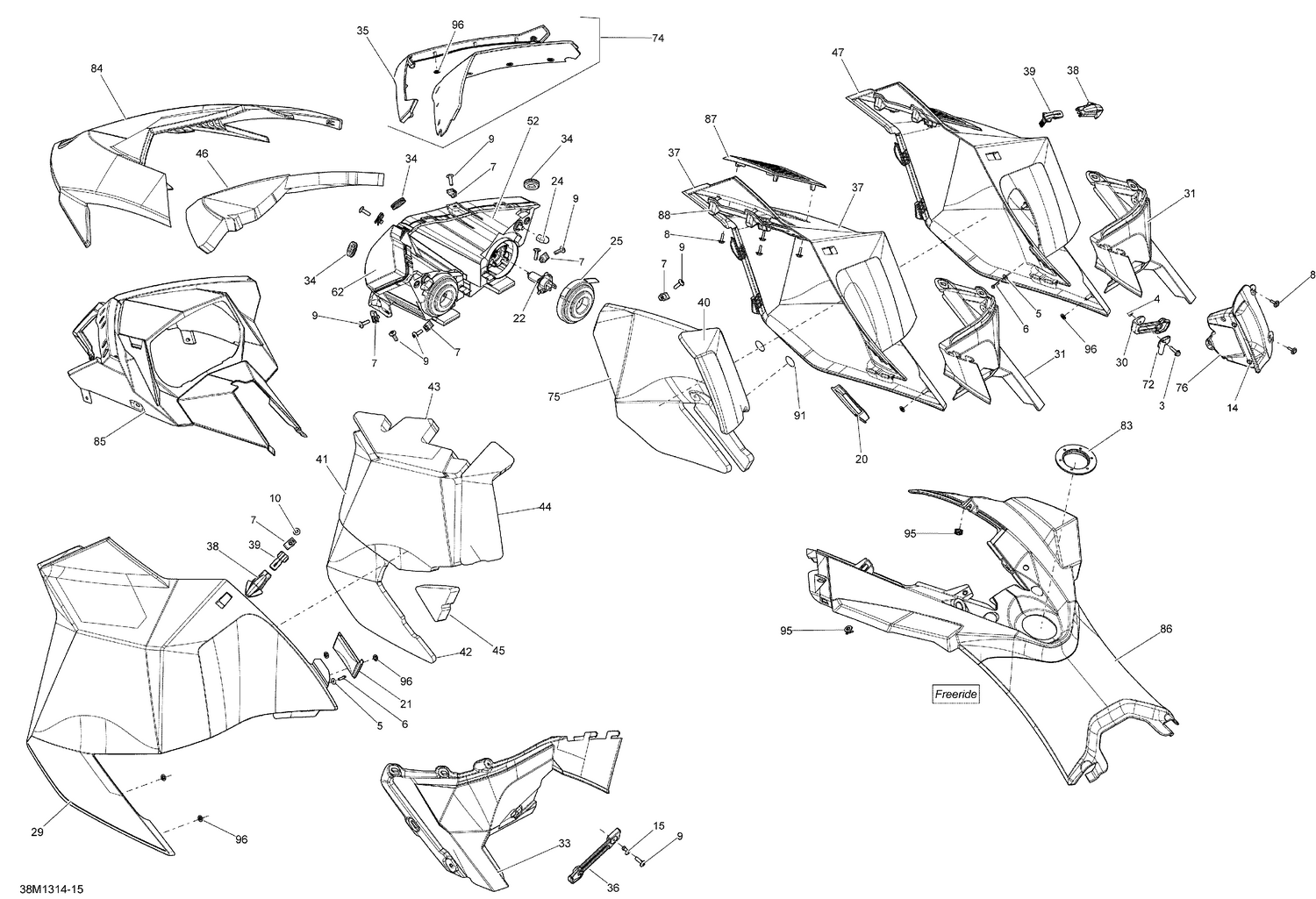

09- Hood, Windshield And Console
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 250000792 | Torx Screw M5 X 20 This part replaces 250000465. |
| 4 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 5 | 234042600 | Flat Washer 4 mm, Stainless |
| 6 | 241141660 | Hex. Flange Screw K40 X 16 |
| 7 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 8 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 9 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 10 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 14 | 275500241 | Black, Cap |
| 15 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 20 | 513033471 | RH Panel Clip |
| 21 | 513033472 | LH Panel Clip |
| 22 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 24 | 515176498 | Cap |
| 25 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 29 | 517305219 | PANEL_BODY LH B-346 - Call your local BRP dealership |
| 30 | 517303612 | RH Panel Latch |
| 31 | 517303671 | Deep Black RH Moulding Panel |
| 33 | 517303673 | Deep Black, LH Moulding Panel |
| 34 | 517303756 | Grommet |
| 35 | 860200089 | Windshield Support Kit This part replaces 517303757. |
| 36 | 517303808 | LH Panel Latch |
| 37 | 517305217 | PANEL_BODY RH B-346 - Call your local BRP dealership |
| 38 | 860200239 | Black Latch Kit |
| 39 | 517303981 | Panel Latch |
| 40 | 517304884 | RH Panel Rear Foam |
| 41 | 517304887 | LH Panel Center Foam |
| 42 | 517304888 | LH Panel Lower Foam |
| 43 | 517304889 | LH Panel Upper Foam |
| 44 | 517304890 | LH Panel Rear Foam |
| 45 | 517304891 | Foam |
| 46 | 517304913 | Hood Foam |
| 47 | 517305216 | GREEN RH PANEL - Call your local BRP dealership |
| 52 | 517304194 | RH Headlamp Ass'y |
| 62 | 517304195 | LH Headlamp Ass'y |
| 72 | 517304221 | Latch Support |
| 74 | 517304226 | Low Windshield Ass'y (140) |
| 75 | 517304883 | RH Center Foam |
| 76 | 517304322 | Black, RH Console |
| 83 | 517304518 | Console Nut |
| 84 | 517305210 | Green Hood |
| 85 | 517304581 | GAUGE SUPPORT - Call your local BRP dealership |
| 86 | 517305211 | CONSOLE - Call your local BRP dealership |
| 87 | 517304763 | EXTERNAL GRILL - Call your local BRP dealership |
| 88 | 517304764 | INTERNAL GRILL - Call your local BRP dealership |
| 91 | 518325560 | Adhesive Patch |
| 95 | 732610057 | JACK NUT M6 - Call your local BRP dealership |
