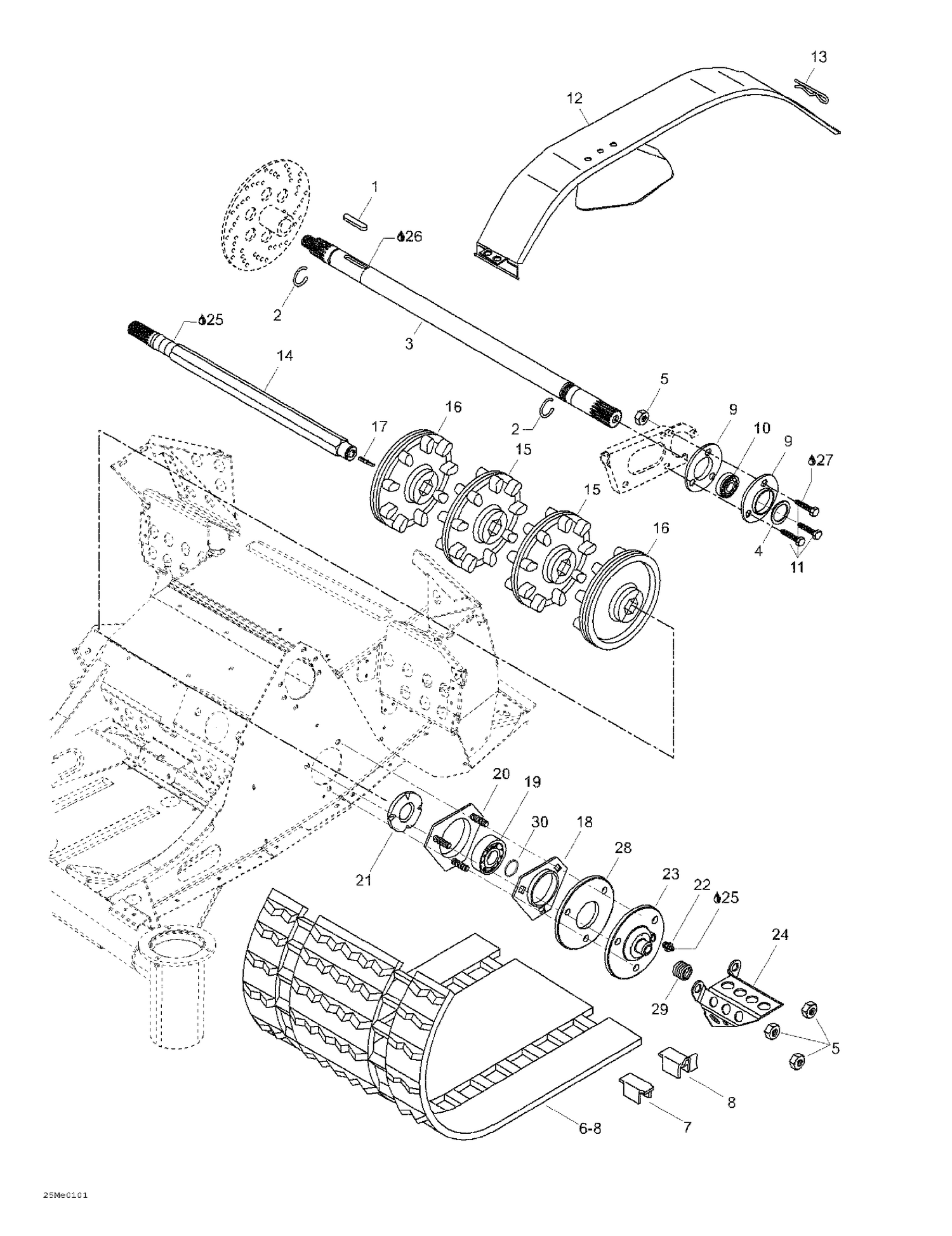

| Ref | Part Number | Description |
|---|
| 1 |
M418740 |
Key |
| 2 |
371910000 |
Circlip |
| 3 |
M5146089 |
SHAFT-COUNTER - Call your local BRP dealership |
| 4 |
M548001 |
Shim |
| 5 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 7 |
M5318329 |
CLEAT - Call your local BRP dealership |
| 8 |
M5318330 |
CLEAT-GUIDE - Call your local BRP dealership |
| 9 |
5346237 |
Flange - Call your local BRP dealership This part replaces M5346237. |
| 10 |
405408900 |
Bearing-Ball |
| 11 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336. |
| 12 |
M5145964 |
Belt Guard |
| 13 |
5442726 |
Pin This part replaces M5442726. |
| 14 |
M5246310 |
Drive Axle |
| 15 |
M539750 |
Sprocket |
| 16 |
M5342920 |
SPROCKET - Call your local BRP dealership |
| 17 |
542013 |
Speed Drive Insert This part replaces M542013. |
| 18 |
501025000 |
FLANGE - Call your local BRP dealership |
| 19 |
293350060 |
Ball Bearing This part replaces 405408600. |
| 20 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 21 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 22 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011. |
| 23 |
504151836 |
Flange, Speedo Drive Insert |
| 24 |
517290100 |
CABLE PROTECTOR - Call your local BRP dealership |
| 25 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 26 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 27 |
293800005 |
Loctite 271, 10 ml |
