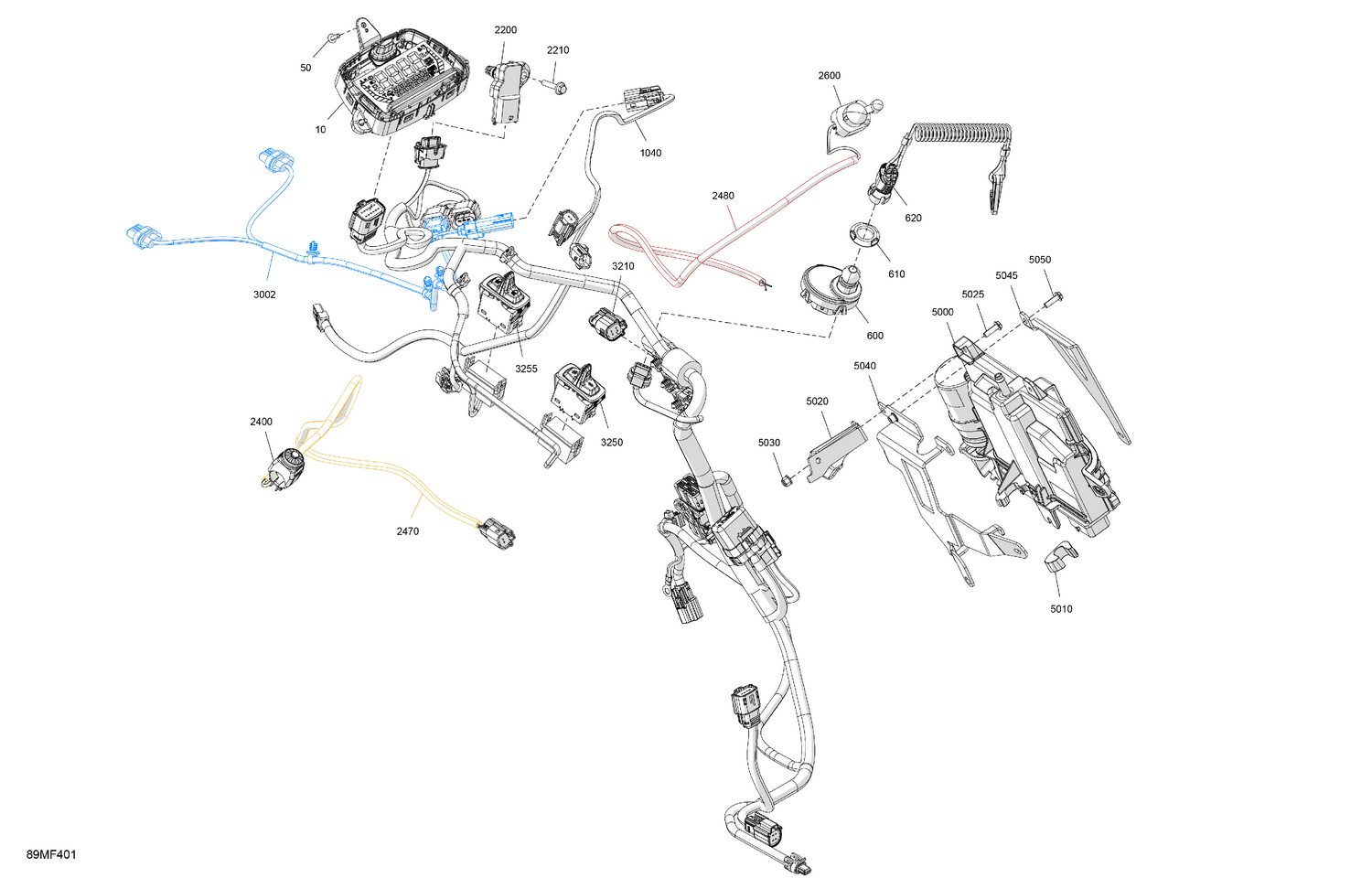

08- Electric - Upper Section
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 250000577 | Torx Truss Screw K40 X 12 |
| 600 | 515178840 | Terminal Dess One-Wire |
| 610 | 278004274 | Specialized Nut |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 1040 | 515178153 | Harness Extension |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 207552544 | Hex. Flange Screw M5 X 25 |
| 2400 | 515178657 | Control Button |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515178300 | Emergency Stop Switch |
| 3002 | 515178646 | Headlight Wiring Harness |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3255 | 515178463 | Switch Rocker Headlignt |
| 5000 | 515179352 | ECM Module |
| 5010 | 515178430 | Rubber Stopper |
| 5020 | 515178801 | Module Support |
| 5025 | 207551634 | Hex. Flange Screw, Scotch Grip |
| 5030 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 5040 | 515178951 | Module Support |
| 5045 | 515179351 | Module Support |
