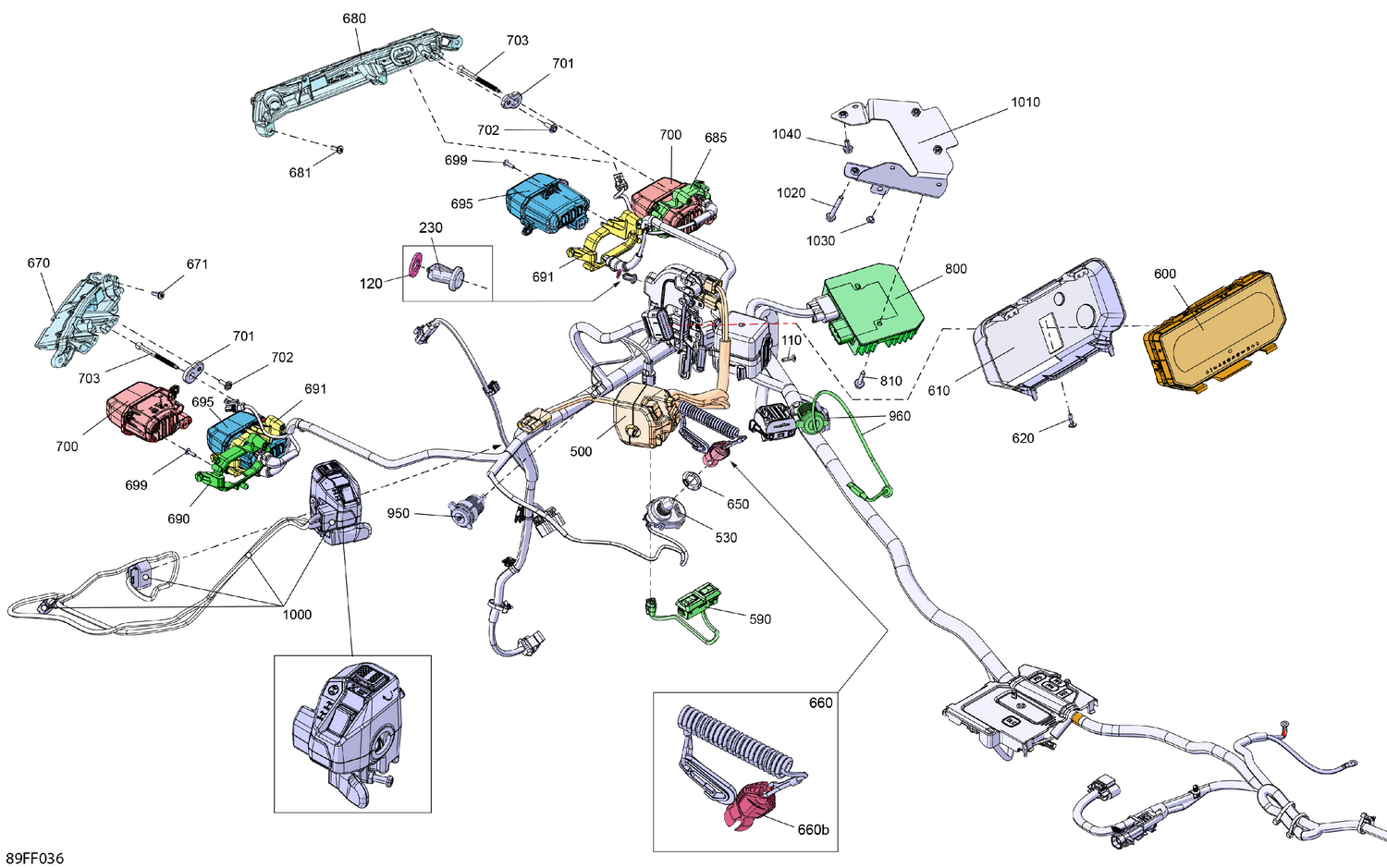

08- Electric - Front Section
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 250000759 | Torx Truss Pt K40 X 16 |
| 120 | 234081100 | Flat Washer 8 mm, Nylon |
| 230 | 293150230 | Tuflok Plastic Rivet |
| 500 | 710007301 | LH Front Switch Housing |
| 530 | 710008832 | Terminal DESS CAN |
| 590 | 710009867 | Multifunction Switch |
| 600 | 710008297 | Multifunction Gauge Mid |
| 610 | 710009602 | Int Gauge Support |
| 620 | 250000720 | Torx Screw K50 X 16 |
| 650 | 278004274 | Specialized Nut |
| 670 | 710009355 | LH Front Light Marker |
| 671 | 250000720 | Torx Screw K50 X 16 |
| 680 | 710009356 | RH Front Light Marker |
| 681 | 250000720 | Torx Screw K50 X 16 |
| 685 | 710011657 | RH Front Low Beam Headlight Support |
| 690 | 710011656 | LH Front Low Beam Headlight Support |
| 691 | 710011658 | LH/RH Front High Beam Headlight Support |
| 695 | 710006910 | HIgh Beam Light |
| 699 | 250000759 | Torx Truss Pt K40 X 16 |
| 700 | 710008088 | Low Beam Light |
| 701 | 293900157 | Ball Socket |
| 702 | 250000959 | Screw PT Type K-50 X 16 |
| 703 | 710005837 | Ajustment Screw |
| 800 | 710010540 | Voltage Regulator |
| 810 | 207562544 | Hex. Flange Screw M6 X 25 |
| 950 | 710001248 | DC Outlet |
| 1000 | 710010573 | Accelerator Hand Lever |
| 1010 | 710009942 | Voltage Regulator Support |
| 1020 | 207664044 | Hex. Flange Screw M6 X 40 |
| 1030 | 293830229 | Rubber Stopper |
