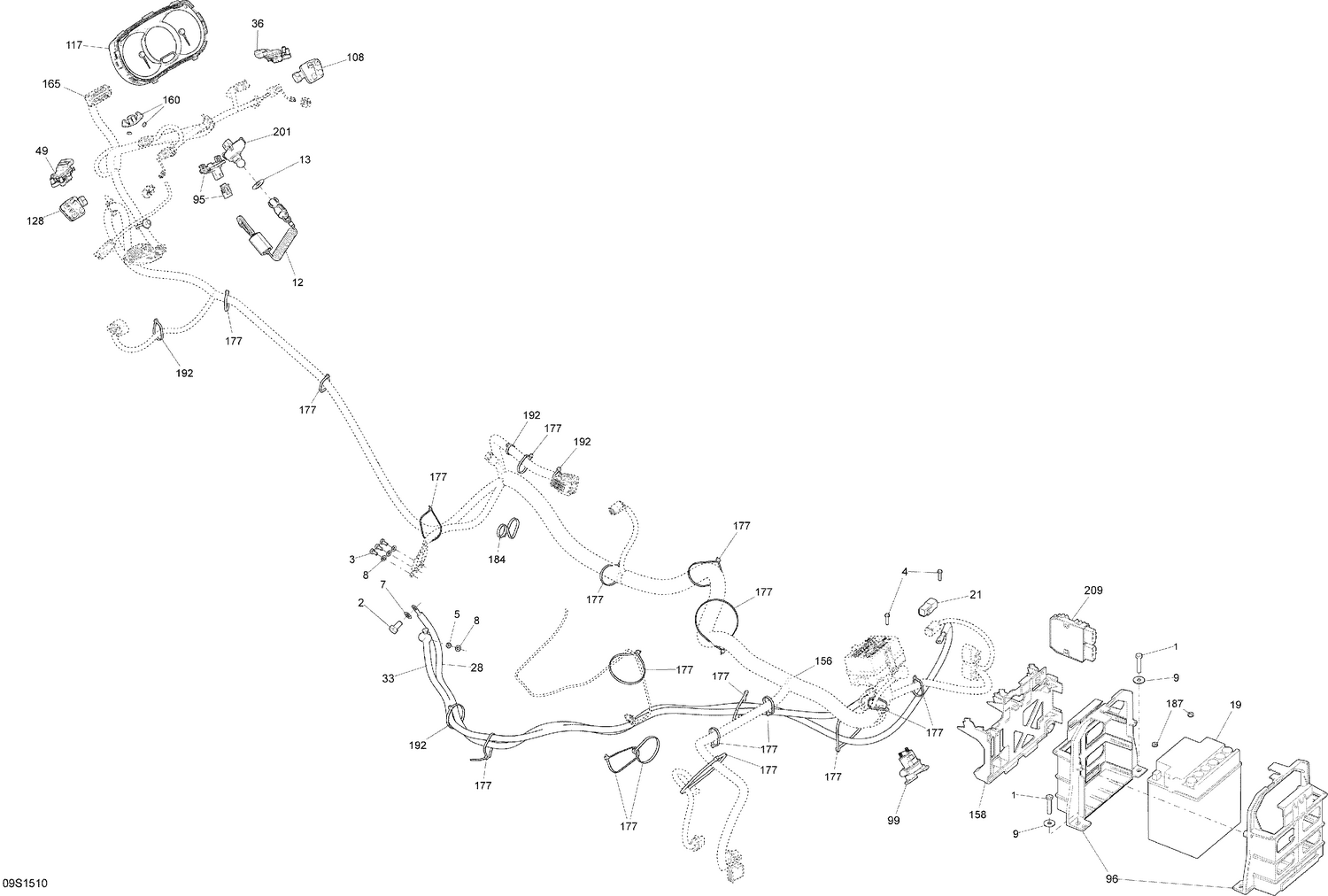

10- Electrical System _09S1510
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207184060 | Hex. Screw M8 X 40 |
| 2 | 207302060 | Hex. Screw M10 X 20, Scotch Grip |
| 3 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 5 | 232561200 | Brass Elastic Stop Nut M6 |
| 7 | 234000600 | Flat Washer 10 mm, Stainless |
| 8 | 234061600 | Stainless Flat Washer M6 |
| 9 | 234082600 | Flat Washer 8 mm, Stainless |
| 12 | 278003400 | Safety Lanyard Ass'y, RFID This part replaces 278003092. |
| 12 | 278003401 | Safety Lanyard Ass'y, Learning / RFID This part replaces 278003093. |
| 13 | 278002963 | Safety Nut (DESS Switch) |
| 19 | 278001882 | Battery YUASA YB30CL-B |
| 21 | 278002704 | Diagnostic Connector |
| 28 | 278003269 | Battery Ground Cable |
| 33 | 278003398 | Cable-Starter This part replaces 278003267. |
| 36 | 278002283 | Throttle Position Sensor |
| 49 | 278002284 | LH Throttle Sensor |
| 95 | 278003009 | O.T.A.S. Sensor Ass'y |
| 96 | 278003306 | Battery Support This part replaces 278002339. |
| 99 | 278003012 | Starter Relay |
| 108 | 278002602 | Switch RH Mode/Set |
| 117 | 278003380 | LCD Gauge This part replaces 278003218. |
| 128 | 278002767 | Switch LH VTS/Sport/Eco |
| 156 | 278003253 | Main Harness (Fixed) |
| 158 | 278003048 | Support |
| 160 | 278003537 | O.T.A.S Actuator This part replaces 278003053. |
| 165 | 278003265 | Steering Harness Ass'y |
| 177 | 293750008 | Tie Wrap 368 mm |
| 184 | 293750053 | Tie Rap 300mm |
| 187 | 250000282 | Battery Bolt Kit |
| 192 | 414115200 | Tie-Rap 180 mm |
| 201 | 515178840 | Terminal Dess One-Wire This part replaces 515177458. |
