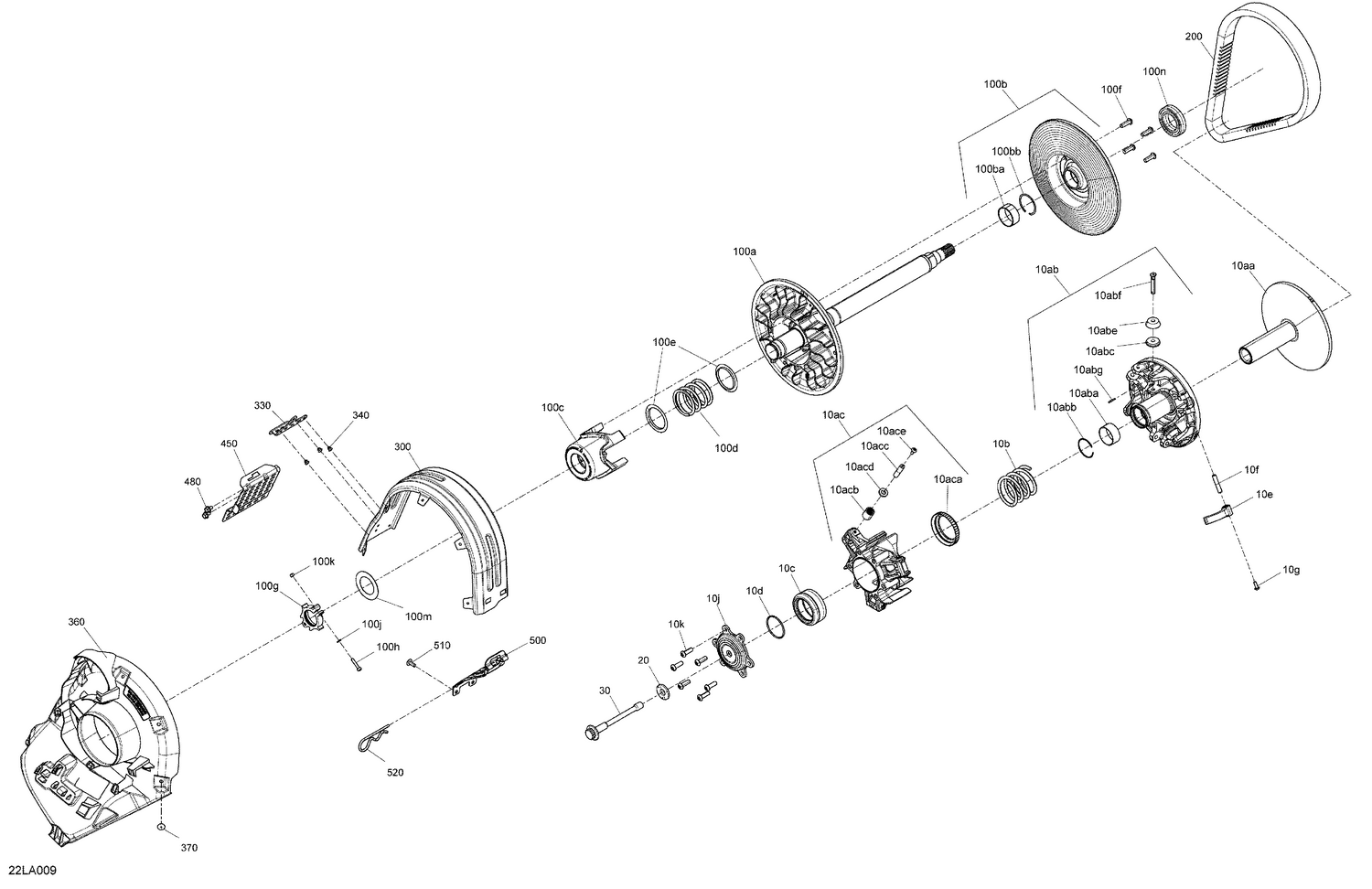

04- Drive - Pulley
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10aa | 417224210 | Fixed Flange Ass'y |
| 10aba | 293250389 | Bushing |
| 10abb | 293370137 | Circlip |
| 10abc | 417224153 | Back Torque Roller |
| 10abe | 417224916 | Pulley Roller Ext This part replaces 417224458. |
| 10abf | 417224510 | Pin This part replaces 417224191. |
| 10abg | 250400101 | Spring Pin 2.6MM X 20.5MM This part replaces 250400074. |
| 10aca | 417224614 | Spring Guide |
| 10acb | 417224947 | Roller Pulley Ass'y This part replaces 417224285. |
| 10acc | 417224204 | Axle - 10mm |
| 10acd | 417224868 | Thrust Washer This part replaces 417224009. |
| 10ace | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10b | 417224329 | Clutch Spring |
| 10c | 417224003 | Seat Spring |
| 10d | 293370116 | Circlip |
| 10e | 417224290 | Ramp 880 Ass'y |
| 10f | 417224694 | Pin Ramp |
| 10g | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10j | 417224680 | Coupling Flange |
| 10k | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300522 | Pulley Drive Bolt M14 X 144 |
| 100a | 417127645 | Fixed Flange Ass'y |
| 100ba | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100bb | 293370049 | Spacer (1.91/2.21mm) |
| 100c | 417127756 | Cam Driven Pulley Ass'y |
| 100d | 417127118 | Spring (Blue, 700-985N / 157-221lbs) |
| 100e | 417127116 | Swivel Abutment |
| 100f | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 100g | 415129604 | Pulley Adjuster Ass'y |
| 100h | 250000981 | Socket Screw M5 X 25 |
| 100j | 234051410 | Flat Washer M5 |
| 100k | 232551414 | Elastic Stop Nut M5 |
| 100m | 417127155 | Washer |
| 100n | 504152574 | Ball Bearing |
| 200 | 417300571 | Drive Belt This part replaces 417300531. |
| 300 | 417300620 | Belt Guard This part replaces 417300479. |
| 330 | 417300525 | Front Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360 | 417300557 | CVT Cooling Duct |
| 370 | 293150103 | Pop Rivet 3/16 |
| 450 | 417300583 | Front Guard Support |
| 480 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 500 | 417300581 | Rear Guard Support |
| 510 | 207562056 | Hex. Flange Screw S.Grip M6 X 20 |
