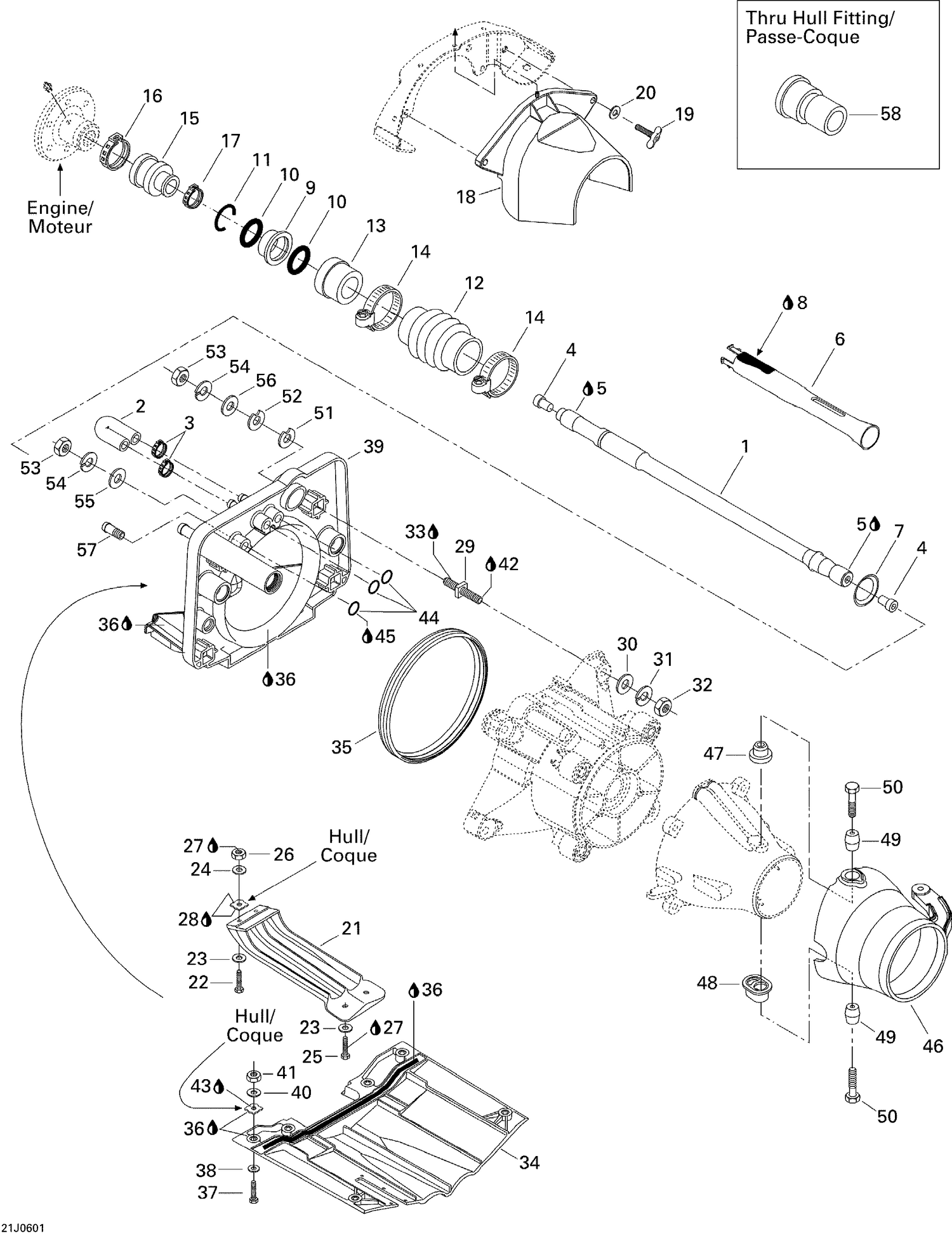

| Ref | Part Number | Description |
|---|
| 1 |
272000151 |
DRIVE SHAFT - Call your local BRP dealership |
| 2 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 3 |
293650042 |
Oetiker Clamp |
| 4 |
272000019 |
DRIVE SHAFT PLUG - Call your local BRP dealership |
| 5 |
293550010 |
Synthetic Grease, 400 G |
| 6 |
204120135 |
SHAFT PROTECTEUR - Call your local BRP dealership |
| 7 |
204120132 |
Retaining Ring |
| 8 |
219701421 |
Instant Gasket This part replaces 219700363. |
| 9 |
272000064 |
Support Ring |
| 10 |
293300032 |
O-Ring |
| 11 |
272000135 |
C-CLIP - Call your local BRP dealership |
| 12 |
272000184 |
BELLOWS - Call your local BRP dealership |
| 13 |
272000770 |
Carbon Ring |
| 14 |
293650075 |
Norma Clamp |
| 15 |
272000001 |
RUBBER BOOT - Call your local BRP dealership |
| 16 |
293650021 |
OETIKER CLAMP - Call your local BRP dealership |
| 17 |
293650067 |
OETIKER CLAMP - Call your local BRP dealership |
| 18 |
272000094 |
FLYWHEEL GUARD - Call your local BRP dealership |
| 19 |
207982510 |
Wing Screw M8 X 25 |
| 20 |
234082600 |
Flat Washer 8 mm, Stainless |
| 21 |
271000790 |
PUMP GRATE - Call your local BRP dealership |
| 22 |
207164560 |
Hex. Screw M6 X 45 |
| 23 |
234061600 |
Stainless Flat Washer M6 |
| 24 |
234062600 |
Flat Washer M6, Stainless |
| 25 |
207161660 |
Hex. Screw M6 X 16 |
| 26 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 27 |
293800005 |
Loctite 271, 10 ml |
| 28 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 29 |
250300022 |
Square Stud This part replaces 250300010. |
| 30 |
234002600 |
Flat Washer 10 mm, Stainless |
| 31 |
234101601 |
Helicoidal Lock Washer M10 |
| 32 |
232001600 |
HEX. NUT M10 - Call your local BRP dealership |
| 34 |
271000955 |
RIDING PLATE, BLACK - Call your local BRP dealership |
| 35 |
293200051 |
Neoprene Seal |
| 36 |
219701421 |
Instant Gasket This part replaces 219700363. |
| 37 |
207184060 |
Hex. Screw M8 X 40 |
| 38 |
234081600 |
Stainless, Flat Washer 8 mm |
| 39 |
204120264 |
Pump Support |
| 40 |
234082600 |
Flat Washer 8 mm, Stainless |
| 41 |
232581600 |
Hex. Elastic Nut M8 |
| 42 |
293800060 |
Loctite 243, 10 ml |
| 43 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 44 |
293250084 |
Watertight Seal |
| 46 |
204160144 |
Steering Nozzle |
| 47 |
293900001 |
Venturi Bushing |
| 48 |
293900010 |
Plastic Bushing |
| 49 |
204160153 |
Venturi Spacer |
| 50 |
211000047 |
SCREW-SPECIAL M8 - Call your local BRP dealership |
| 51 |
272000053 |
Shim 0.3 mm |
| 52 |
0460011 |
NEEDS DESCRIPTION This part replaces 204120067. |
| 53 |
232001600 |
HEX. NUT M10 - Call your local BRP dealership |
| 54 |
234101601 |
Helicoidal Lock Washer M10 |
| 55 |
234001600 |
Flat Washer 10 mm, Stainless |
| 56 |
234002600 |
Flat Washer 10 mm, Stainless |
| 57 |
204120265 |
COOLANT FITTING - Call your local BRP dealership |
