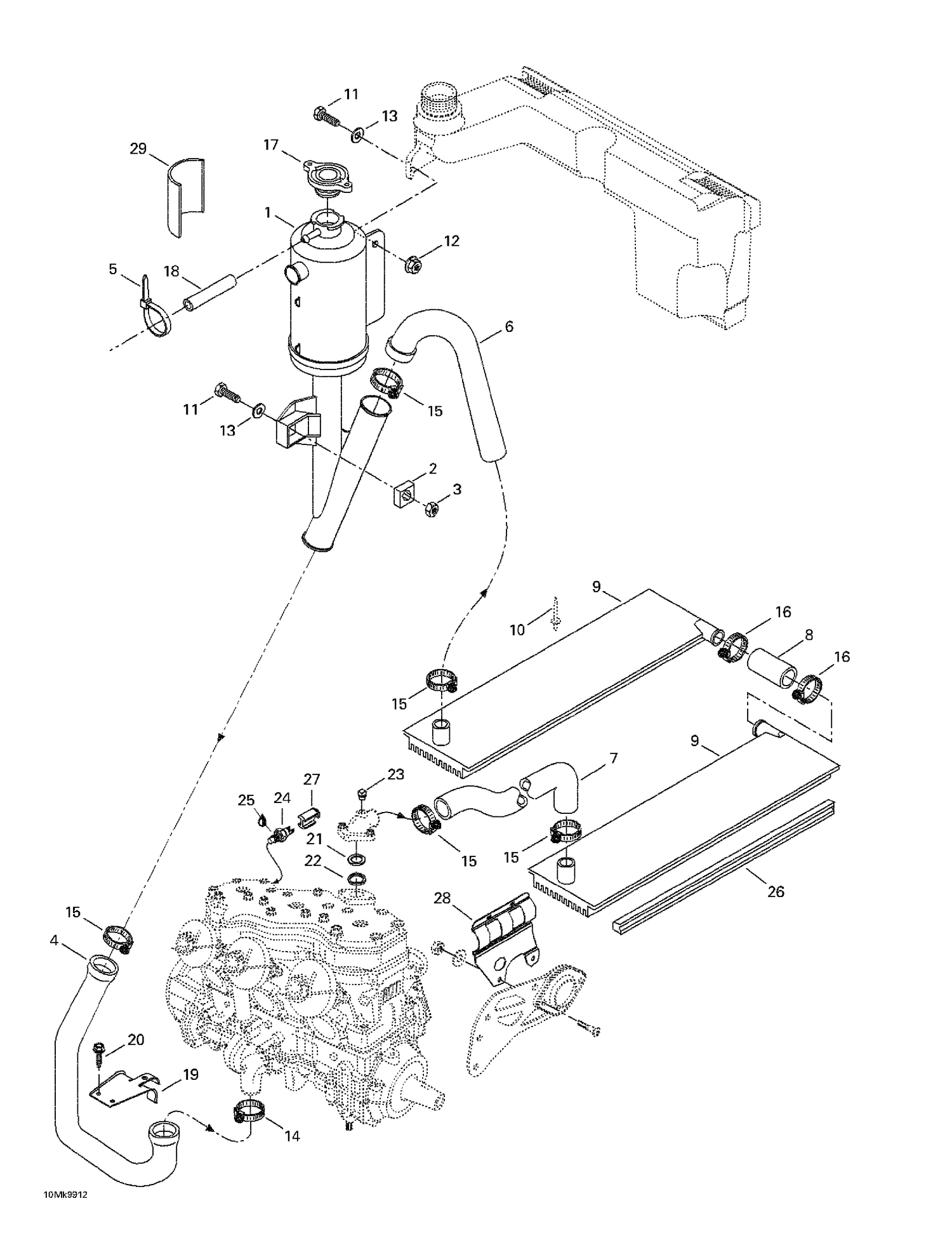

| Ref | Part Number | Description |
|---|
| 3 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 4 |
509000026 |
Engine Inlet Hose |
| 5 |
414115200 |
Tie-Rap 180 mm |
| 6 |
415047000 |
Radiator Outlet Hose |
| 7 |
415047100 |
RADIATOR INLET HOSE - Call your local BRP dealership |
| 8 |
414795800 |
Radiator Hose |
| 10 |
Not |
Available As Spare Part - Rivet |
| 11 |
207162544 |
Hex. Screw M6 X 25 This part replaces 222062565. |
| 12 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 13 |
224061121 |
Flat Washer |
| 14 |
Not |
Available As Spare Part - Tridon Gear Clamp |
| 15 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 16 |
408803400 |
Clamp Tridon |
| 17 |
509000187 |
Pressure Cap This part replaces 414684700. |
| 18 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 19 |
509000037 |
Hose Protector |
| 20 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership This part replaces 732601067. |
| 21 |
420927745 |
RETAINING DISK - Call your local BRP dealership |
| 22 |
420931270 |
SEALING RING - Call your local BRP dealership |
| 23 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 24 |
414728700 |
Temperature Sensor |
| 25 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 27 |
515175297 |
Connector Plug |
| 28 |
509000042 |
HOSE PROTECTOR - Call your local BRP dealership |
