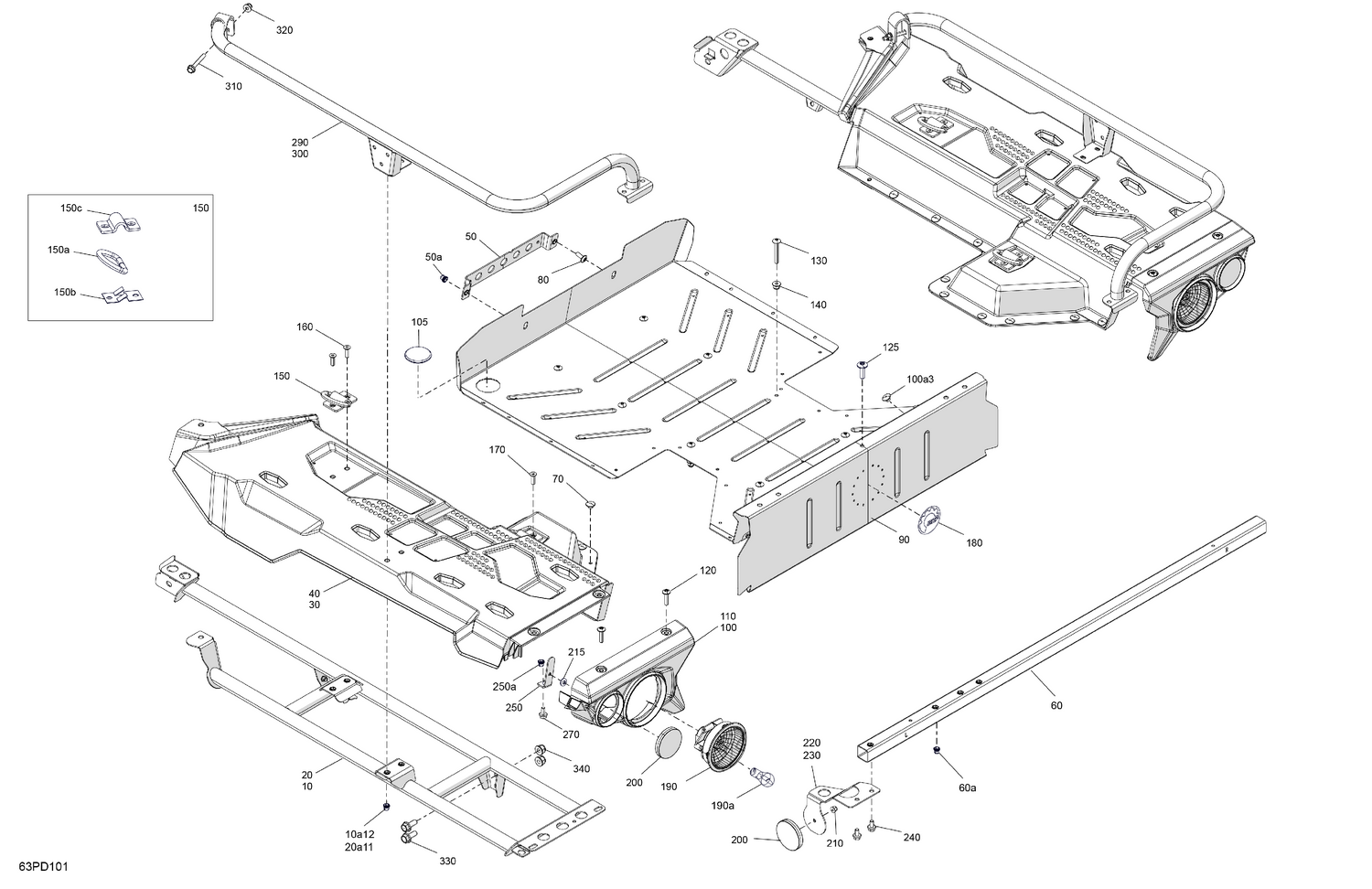

07- Body - Cargo
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10a12 | 605636003 | Clinch Nut M6 Hexsert |
| 20a11 | 605636003 | Clinch Nut M6 Hexsert |
| 30 | 708302687 | RH Cargo Fender |
| 40 | 708302688 | CARGO FENDER LH - Call your local BRP dealership |
| 50a | 605636003 | Clinch Nut M6 Hexsert |
| 60a | 605636003 | Clinch Nut M6 Hexsert |
| 70 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 80 | 250000717 | Torx Head Screw M6 X 16 |
| 90 | 705207512 | Middle Area |
| 100 | 708302734 | RH Light Cover |
| 100a3 | 390909200 | Avex Rivet |
| 105 | 503192771 | Black, Wheel Cap |
| 110 | 708302735 | LH Light Cover |
| 120 | 250000807 | Torx Truss Screw M6 X 25 |
| 125 | 250000722 | Torx Screw M6 X 20 |
| 130 | 250000748 | Torx Screw M6 X 45 |
| 140 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 150a | 708302990 | D-Ring |
| 150b | 708302991 | Tie-Down Ring Spring |
| 150c | 708302992 | Tie-Down Ring Bracket |
| 160 | 205362556 | Screw-Socket Hd.ctsk.m6 X 25 |
| 170 | 205362096 | Socket Screw HD.CTSK.DIN.7991 |
| 180 | 219902672 | BRP Logo 68 mm |
| 190a | 520000758 | Bulb |
| 200 | 705016982 | Red, Reflector |
| 210 | 233251434 | Flange Elastic Nut M5 |
| 220 | 708302774 | LH Reflector Support |
| 230 | 708302773 | RH Reflector Support |
| 240 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 250a | 605636003 | Clinch Nut M6 Hexsert |
| 270 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 290 | 708302788 | LH Side Rail |
| 300 | 708302789 | RH Side Rail |
| 310 | 207664554 | Hex. Flange Screw |
| 320 | 233261466 | Hex. Flange Elastic Nut M6 |
| 330 | 207682046 | Hex. Flange Screw M8 X 20 |
| 340 | 233281416 | Hex. Elastic Flange Nut M8 |
