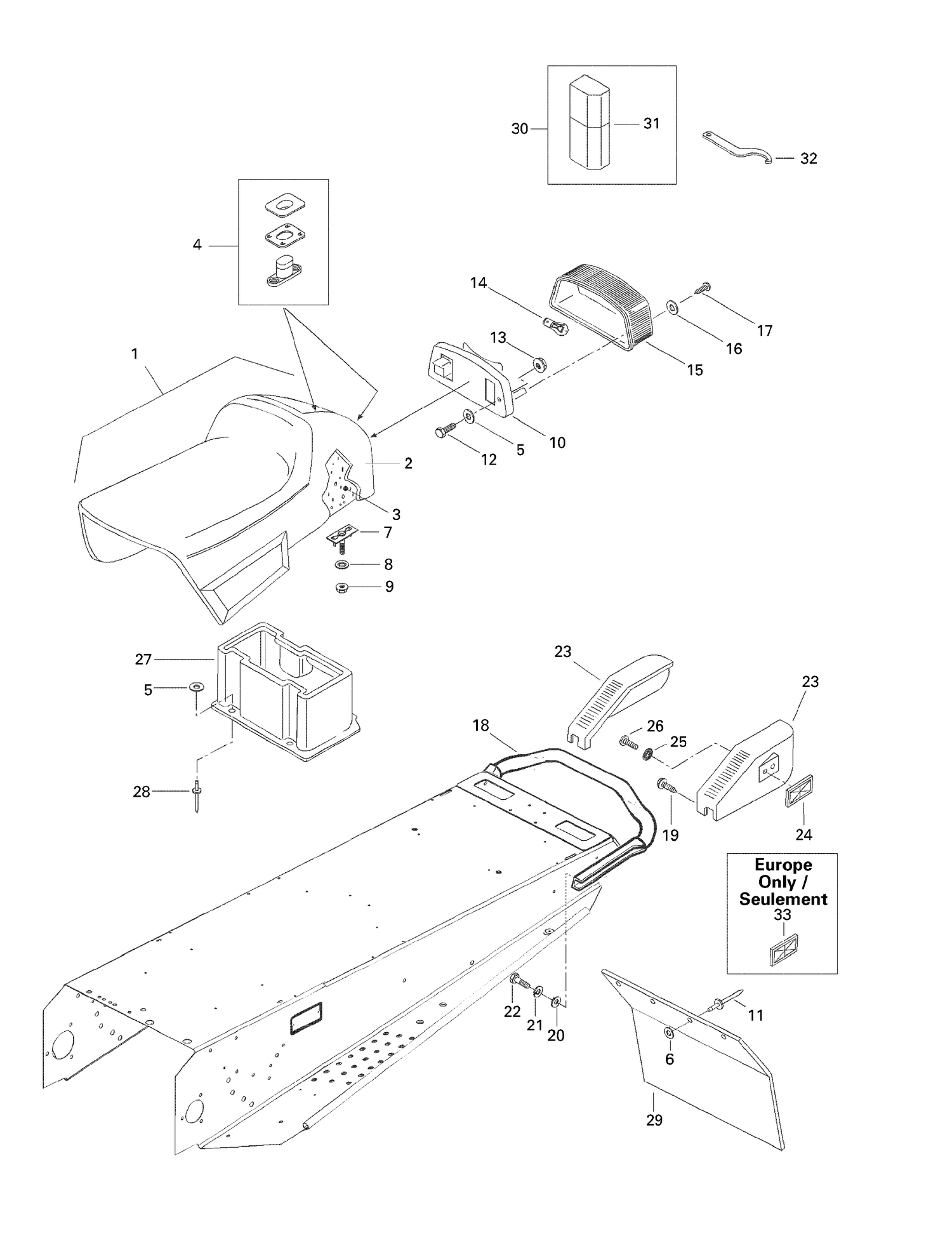

| Ref | Part Number | Description |
|---|
| Not |
Available |
As Spare Part - Wrench Fork (16/18 mm) (Not Shown) |
| 1 |
Not |
Available As Spare Part - Seat Ass'y (1 pass.) |
| 2 |
415091903 |
Seat Cover (1 pass.) |
| 3 |
414891300 |
Foam Seat (1 pass.) |
| 4 |
414728000 |
SEAT BUCKLE - Call your local BRP dealership |
| 5 |
517297900 |
WASHER - Call your local BRP dealership |
| 6 |
517225900 |
Flat Washer |
| 7 |
Not |
Available As Spare Part - Weld Screw |
| 8 |
732610072 |
Push Nut |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 10 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership This part replaces 414513600. |
| 11 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 12 |
207053044 |
Hex. Screw M5 X 30 This part replaces 222053065. |
| 13 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 14 |
520000758 |
Bulb This part replaces 410504000. |
| 15 |
414513700 |
Lens |
| 16 |
414516400 |
Washer - Call your local BRP dealership |
| 17 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 732601253. |
| 18 |
518314000 |
REAR BUMPER - Call your local BRP dealership |
| 19 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 20 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 21 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 22 |
207182044 |
Hex. Screw M8 X 20 This part replaces 222082065. |
| 24 |
414510100 |
REFLECTOR, RED - Call your local BRP dealership |
| 25 |
224151101 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 26 |
208651041 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership This part replaces 222851065. |
| 27 |
572106302 |
Rear Trunk |
| 28 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 29 |
572101500 |
Snow Gard (Yellow) |
| 30 |
529027900 |
Tool Kit |
| 31 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 32 |
529030700 |
Wrench-Adjuster |
| 529000003 |
Clé |
Ouverte 15/17 mm - Appelez votre concessionnaire BRP local This part replaces 529019300. 529000003 |
| 529000003 |
FORK |
WRENCH 15/17 MM - Call your local BRP dealership This part replaces 529019300. 529000003 |
| 529000060 |
Pince |
Démarrage This part replaces 529019400. 529000060 |
| 529000060 |
Starter |
Grip This part replaces 529019400. 529000060 |
| 529014700 |
Clé |
Multiple - Appelez votre concessionnaire BRP local 529014700 |
| 529014800 |
Socket |
Wrench 21/26 mm 529014800 |
| 529014900 |
Socket |
Wrench 10/13 mm 529014900 |
| 529017300 |
Clé |
Ouverte - Appelez votre concessionnaire BRP local 529017300 |
| 529017300 |
FORK |
WRENCH - Call your local BRP dealership 529017300 |
| 529019200 |
DRIVER |
SCREW - Call your local BRP dealership 529019200 |
| 529035501 |
Spacing |
Tool This part replaces 529019500. 529035501 |
| 580642100 |
LH |
Moulding Ass'y 580642100 |
