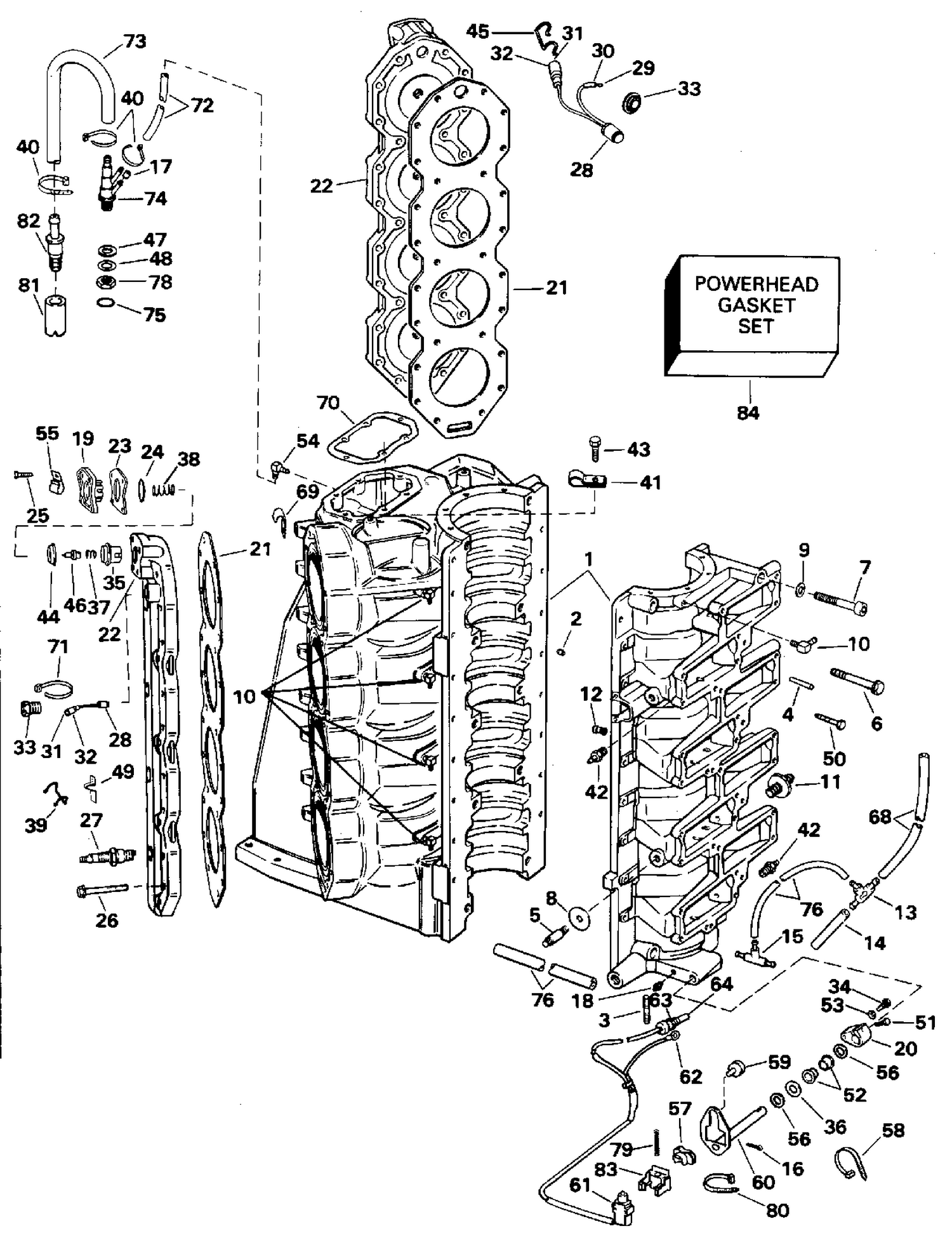

| Ref | Part Number | Description |
|---|
| 1 |
0437018 |
CYLINDER & C'CASE ASSY. |
| 3 |
0326743 |
STUD |
| 13 |
0394892 |
CHECK VALVE ASSY. |
| 14 |
0341216 |
HOSE, Valve lower |
| 15 |
0325569 |
T, amorçage |
| 16 |
0330145 |
COTTER PIN |
| 19 |
0343141 |
COVER, Thermostat This part replaces 0339207. |
| 20 |
0326644 |
LEVER, Shift rod |
| 21 |
0340116 |
GASKET, Cylinder head |
| 22 |
0340797 |
CYLINDER HEAD |
| 23 |
0329830 |
GASKET, Cover |
| 25 |
0330562 |
SCREW, Gearcase |
| 26 |
0339066 |
SCREW, Cylinder head |
| 27 |
0432424 |
SPARK PLUG , QL16V |
| 27 |
0437680 |
SPARK PLUG, Champion QL82YC |
| 27 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 28 |
0585038 |
TEMPERATURE SWITCH, Starboard |
| 28 |
0585039 |
TEMPERATURE SWITCH, Port |
| 34 |
0327590 |
PIN, Shift lever |
| 36 |
0306012 |
BOW WASHER |
| 38 |
0342421 |
SPRING |
| 39 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 40 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 44 |
0435957 |
DIAPHRAGM |
| 45 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 46 |
0436195 |
ENSEMBLE THERMOSTAT |
| 47 |
0122220 |
SEAL |
| 48 |
0317936 |
WASHER |
| 50 |
0554306 |
SCREW, Cyl. to crankcase |
| 51 |
0328695 |
CLAMP, Engine cable |
| 52 |
0312708 |
BUSHING |
| 55 |
0330157 |
CLAMP |
| 56 |
0202026 |
LOCK WASHER, Stud |
| 57 |
0513812 |
BRACKET, Slider |
| 58 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 59 |
0329997 |
PIN |
| 60 |
0394595 |
SHIFT LEVER & SHAFT |
| 61 |
0586294 |
SWITCH & CABLE This part replaces 0584754. |
| 68 |
HOSE, |
Bearing housing, 25 in. (635mm) |
| 69 |
0330157 |
CLAMP |
| 72 |
0913435 |
HOSE, Elbow to drain tee |
| 73 |
0913438 |
HOSE, 30 (DEGREE) Tee to check valve |
| 74 |
0914902 |
ASPIRATOR |
| 75 |
0915209 |
O-RING, Aspirator |
| 76 |
HOSE, |
Drain system |
| 79 |
0333017 |
SPRING |
| 81 |
0913439 |
HOSE, Aspirator |
| 82 |
0986534 |
CHECK VALVE, Aspirator |
| 83 |
0513134 |
SUPPORT, à clipser |
