Parts Catalog

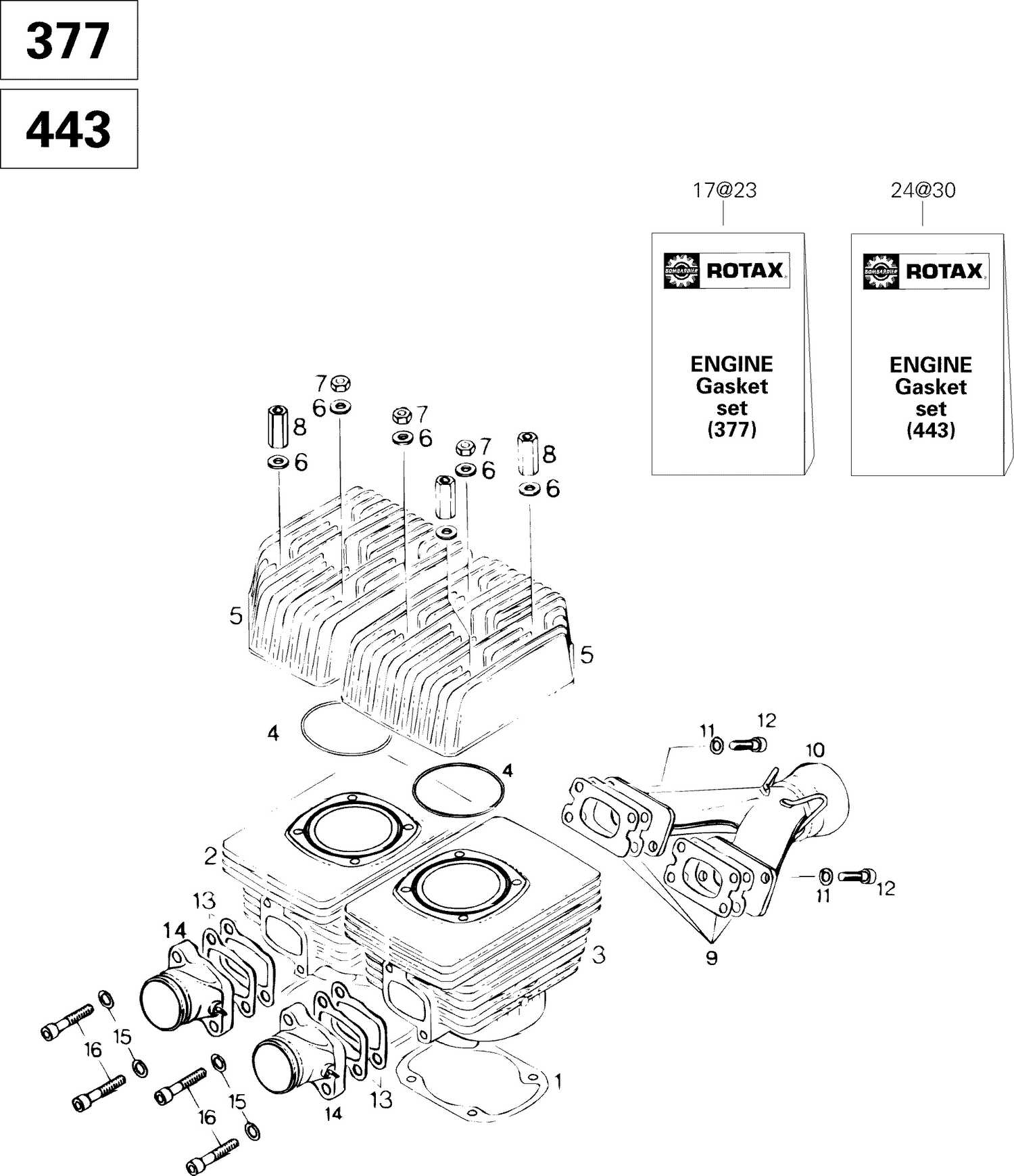

01- Cylinder And Exhaust Manifold 443

Parts (28)

Ref	Part Number	Description
1	420430351	GASKET 0.4 - Call your local BRP dealership This part replaces 420850105.
2	420923346	Cylinder with Sleeve,P.T.O
3	420923356	Cylinder with Sleeve, MAG
4	420931380	O-Ring
5	420923370	Cylinder Head
6	420250315	Flat Washer 8.4 mm This part replaces 420250311.
7	232081414	Hex. Nut M8 This part replaces 228081045.
8	420842208	DISTANCE NUT M8 X 51 - Call your local BRP dealership
9	420850113	Gasket
10	420978437	Exhaust Manifold Ass'y
11	234181401	Lock Washer 8 mm This part replaces 224781140.
12	205083044	Socket Head Screw M8 X 30 This part replaces 222983065.
13	420831867	INTAKE GASKET 1.0 MM - Call your local BRP dealership This part replaces 420831866.
14	420867408	INTAKE SOCKET ASS?Y - Call your local BRP dealership
15	420945832	Washer-Lock Din.128 This part replaces 420945752.
16	420841591	Screw M8 X 35
17	XXX	Not Available As Spare Parts
18	XXX	Not Available As Spare Parts
19	XXX	Not Available As Spare Parts
20	XXX	Not Available As Spare Parts
21	XXX	Not Available As Spare Parts
22	XXX	Not Available As Spare Parts
23	XXX	Not Available As Spare Parts
25	293300022	O-Ring, 64 mm X 2 mm This part replaces 420250165.
26	420831952	Oil Seal This part replaces 420831950.
27	420430351	GASKET 0.4 - Call your local BRP dealership This part replaces 420850105.
28	420931380	O-Ring
29	420850114	GASKET - Call your local BRP dealership
