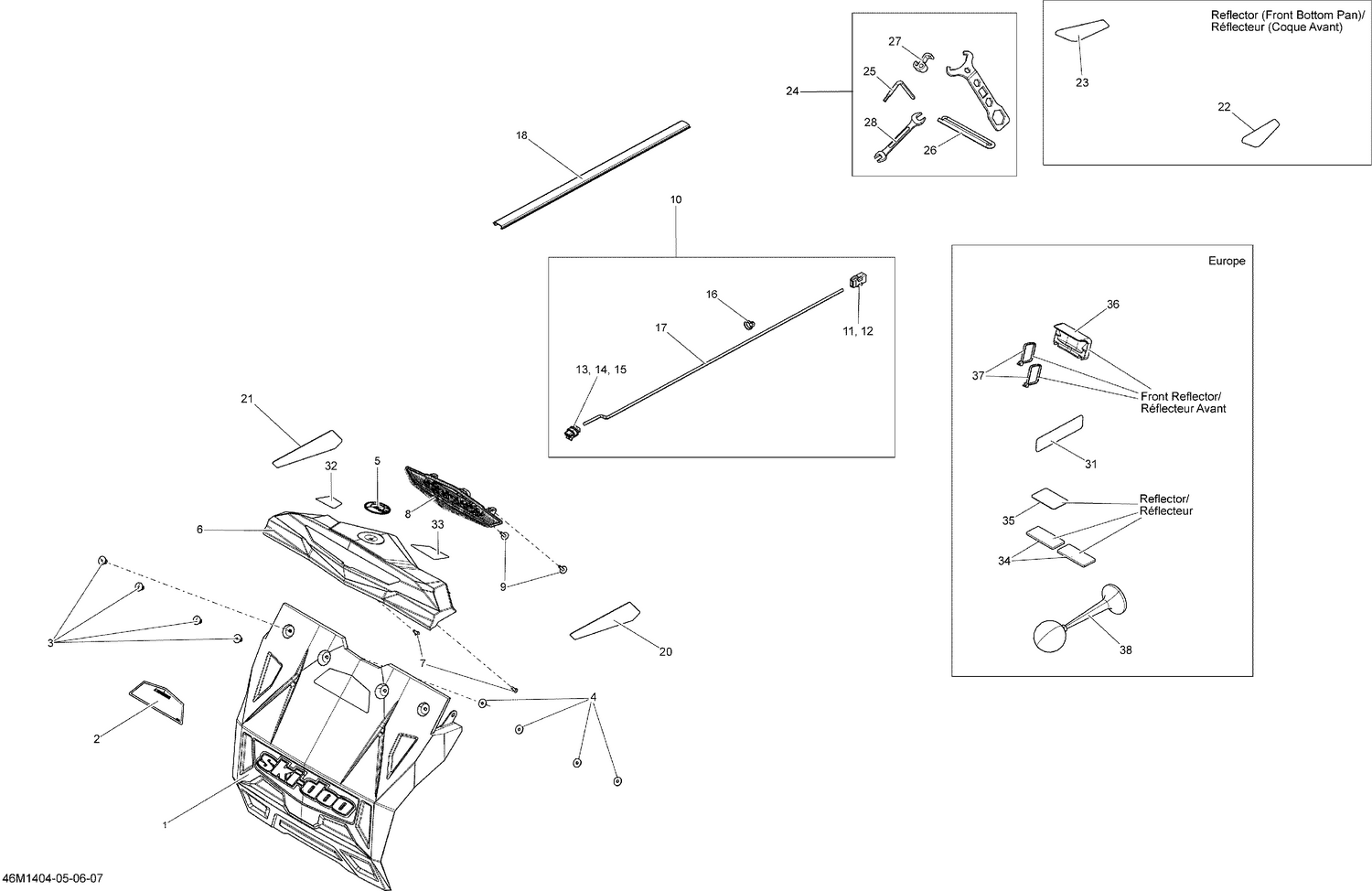

| Ref | Part Number | Description |
|---|
| 1 |
520001342 |
Snow Guard, Black W Alloy Grey Insert |
| 2 |
516005175 |
Warning Decal, Track |
| 3 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 4 |
517124300 |
Washer |
| 5 |
219903947 |
BRP Logo 48 mm |
| 6 |
511000810 |
Deep Black, Light Fairing |
| 7 |
241141340 |
Hex. Screw K40 X 13 |
| 8 |
520001143 |
Rear Light |
| 9 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 11 |
515175494 |
Male Housing, 3 Circuits |
| 12 |
515175232 |
Male Terminal |
| 13 |
278002387 |
Female Terminal Housing 3 Circuits |
| 14 |
710001153 |
Seal Wire |
| 15 |
710000925 |
Terminal |
| 16 |
293750002 |
Tie Wrap 142 mm |
| 17 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 18 |
520000829 |
Radiator Trim |
| 22 |
520001237 |
Yellow, RH Front Reflector |
| 23 |
520001236 |
Yellow, LH Front Reflector |
| 25 |
520001142 |
Spacing Tool |
| 26 |
219704403 |
Was 412500100 Rope-Starter |
| 27 |
529000060 |
Starter Grip |
| 28 |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 32 |
516005057 |
WARNING DECAL, SAFETY - Call your local BRP dealership |
| 33 |
516005058 |
Warning Decal, Safety |
