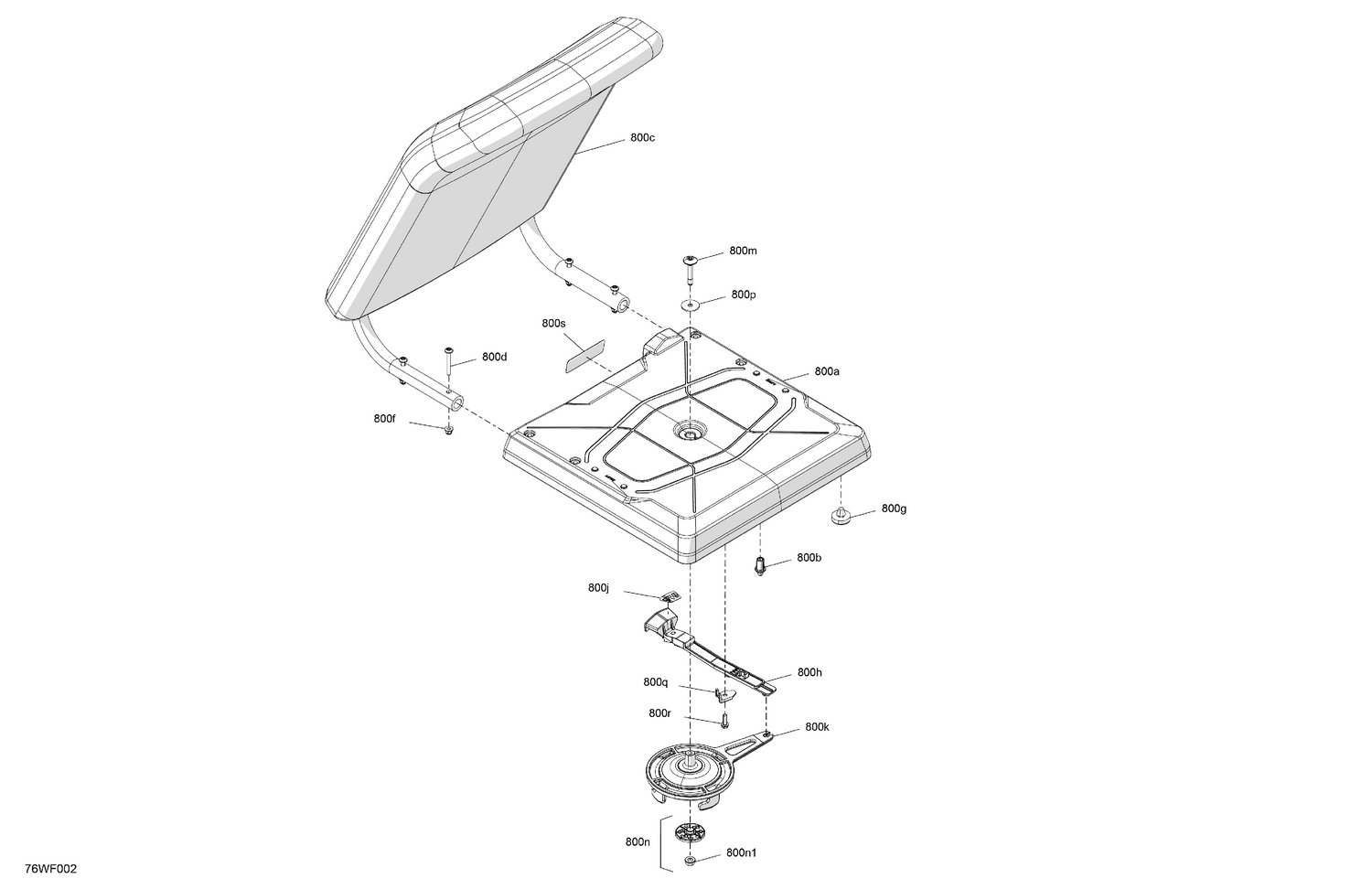

07- FURNITURE - Inclined Backrest
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 800a | 295101130 | Seat Back Support Service Kit |
| 800b | 269003492 | Locator Rod |
| 800c | 269003693 | Backrest Ass'y This part replaces 269004104. |
| 800d | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 800f | 233261200 | Nut Flange Elastic M6 |
| 800g | 269003502 | Rubber Stopper |
| 800h | 295101126 | Lever Latch Service Kit |
| 800j | 219905993 | Lever Decal |
| 800k | 269003311 | Seat Anchorage |
| 800m | 250001154 | Torx Head M8 X 50 S.GRIP |
| 800n1 | 233181600 | Hex. Flange Nut M8 |
| 800p | 250200130 | Flat Washer 8 mm |
| 800q | 269004160 | Guide |
| 800r | 243162060 | Hex. Flange Screw M6.81 x 20 |
