| Ref | Part Number | Description |
|---|
| 1 |
0584843 |
ENSEMBLE VOLANT-MOTEUR |
| 2 |
0336135 |
SCREW, Flywheel |
| 3 |
0584849 |
STATOR |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
0336732 |
GROMMET |
| 12 |
0584762 |
ENGINE CABLE ASSY. |
| 46 |
0586075 |
RECTIFIER & REGULATOR |
| 54 |
0350357 |
GASKET, BASE PLATE This part replaces 0342291. |
| 55 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 57 |
0513818 |
COUVERCLE, bloc d'alimentation vers volant moteur |
| 58 |
0336492 |
SOUPAPE, couvercle de volant-moteur |
| 60 |
0586292 |
BLOC D’ALIMENTATION |
| 68 |
0335204 |
INDICATEUR DE CALAGE |
| 71 |
0342202 |
BRACKET, Motor cable |
| 72 |
0316074 |
BOUCHON, couvercle de volant-moteur |
| 74 |
0433581 |
COVER Assy, Flywheel |
| 76 |
0308995 |
SCREW, Front mount |
| 77 |
5005805 |
ENSEMBLE CÂBLAGE, bobine allumage, 15½ " (394 mm) This part replaces 0584919. |
| 77 |
5005806 |
ENSEMBLE CÂBLAGE, bobine allumage, 14½ " (370 mm) This part replaces 0584920. |
| 79 |
0514289 |
BLINDAGE |
| 81 |
0583740 |
COIL Assy |
| 83 |
0314099 |
RONDELLE, vis, pignon de distribution |
| 84 |
0909533 |
SCREW, Pressure relief valve cover |
| 86 |
0514288 |
COUVERCLE, bloc d’alimentation |
| 87 |
0331102 |
SCREW, Coil to block |
| 88 |
0335428 |
CACHE, capteur |
| 94 |
0513788 |
PIGNON DE DISTRIBUTION |
| 95 |
0512743 |
DISPOSITIF DE RETENUE |
| 96 |
0583356 |
CABLE ASSY., AC lighting |
| 955 |
515178223 |
Clip Connector |

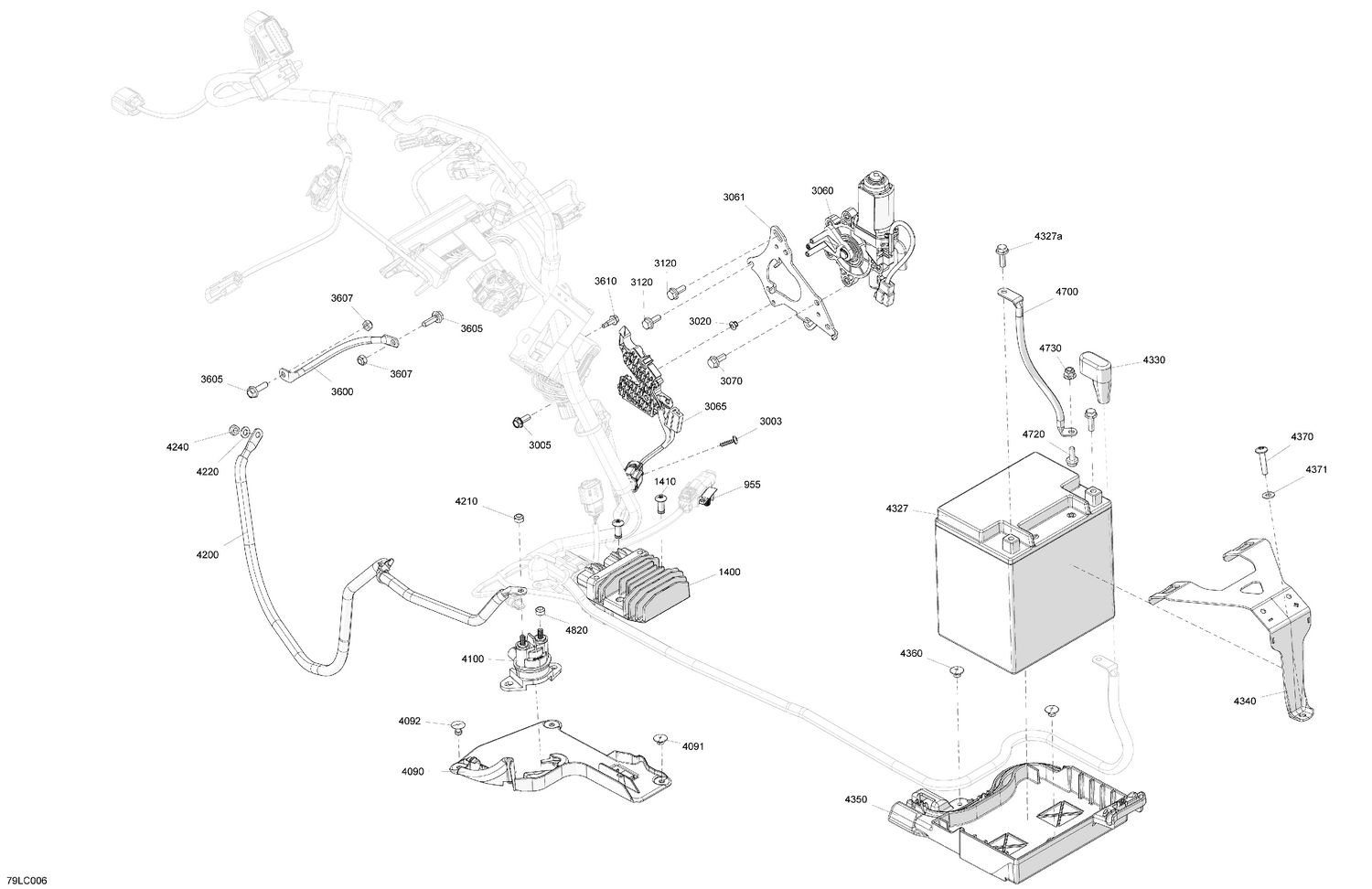

| 1400 |
710010539 |
Voltage Regulator This part replaces 710005569. |
| 1410 |
293150182 |
Monobolt Rivet 6.4 |
| 3003 |
250000742 |
Torx Screw M5 X 14 |
| 3005 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 3020 |
390402200 |
Pop Rivet 3/16 |
| 3060 |
515180200 |
Engine Assembly |
| 3061 |
515179332 |
Stop Plate |
| 3070 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 3120 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 3600 |
515178338 |
Ground Wire |
| 3605 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 3607 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 |
250000911 |
Hex. Flange Screw M5 X 16 |
| 4090 |
515178244 |
Support |
| 4091 |
293150103 |
Pop Rivet 3/16 |
| 4092 |
293150104 |
Pop Rivet 3/16 |
| 4100 |
278003012 |
Starter Relay |
| 4200 |
515178336 |
Battery Wire |
| 4210 |
232561434 |
Elastic Stop Nut M6 |
| 4220 |
234061410 |
Flat Washer 6 mm |
| 4240 |
232561434 |
Elastic Stop Nut M6 |
| 4327a |
250000282 |
Battery Bolt Kit |
| 4330 |
710001817 |
Protector Cap |
| 4340 |
515178695 |
Battery Strip |
| 4350 |
515178690 |
Battery Support Under |
| 4360 |
293150103 |
Pop Rivet 3/16 |
| 4370 |
250000843 |
Torx Truss Screw M6 X 30 |
| 4371 |
224061121 |
Flat Washer |
| 4700 |
515178564 |
Cable |
| 4720 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 4730 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
