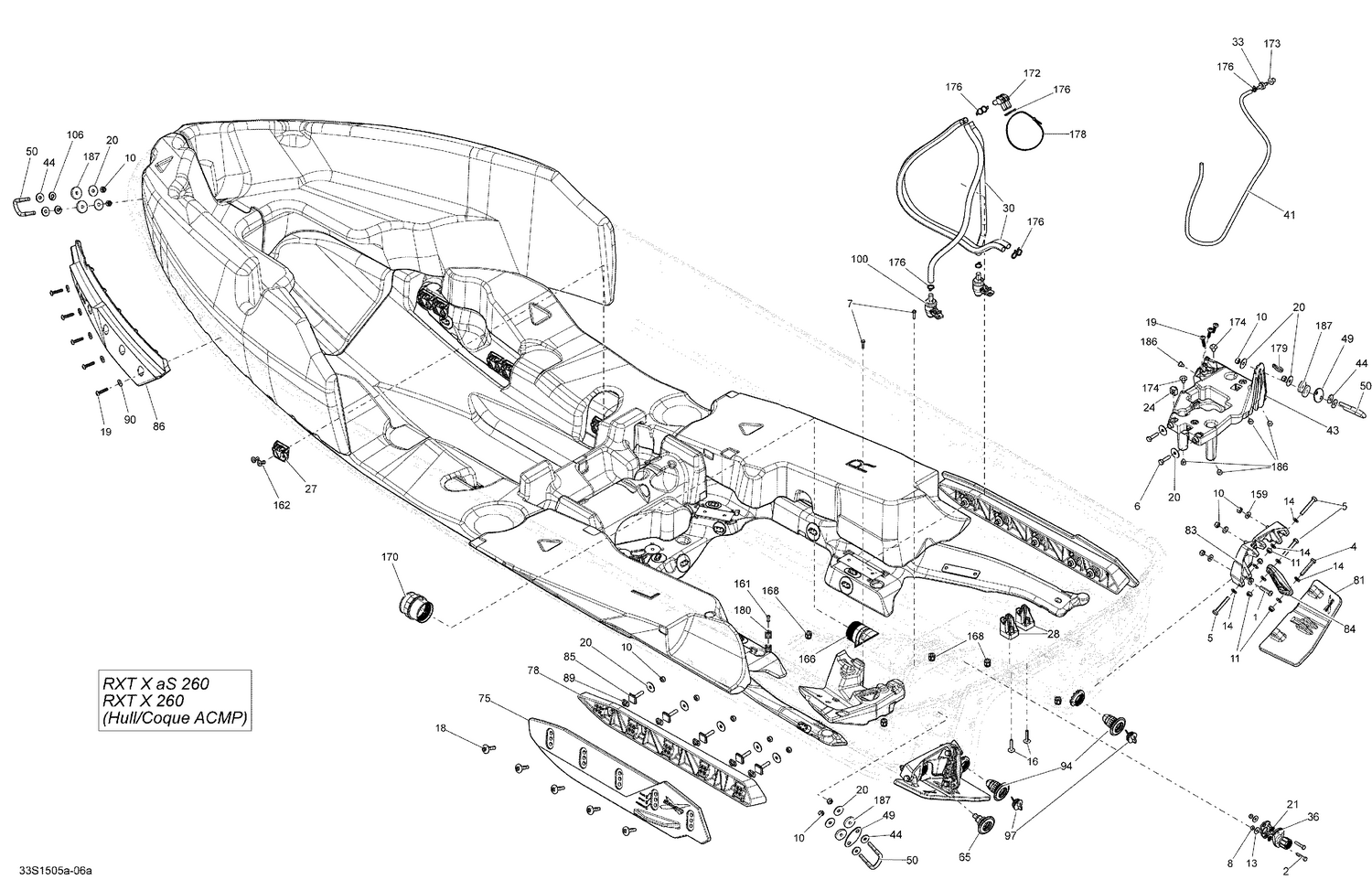

09- Hull ACMP_33S1506a
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | XXX | Not Available As Spare Parts |
| 2 | 207063060 | Hex. Screw M6 X 30 |
| 4 | XXX | Not Available As Spare Parts |
| 5 | XXX | Not Available As Spare Parts |
| 6 | 207183060 | Hex. Screw M8 X 30 |
| 7 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 8 | 232561200 | Brass Elastic Stop Nut M6 |
| 10 | 232581200 | Hex. Elastic Nut M8 Brass |
| 11 | 232581600 | Hex. Elastic Nut M8 |
| 13 | 234062600 | Flat Washer M6, Stainless |
| 14 | XXX | Not Available As Spare Parts |
| 16 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 18 | 250000994 | Torx-Head Screw M8 X 35 This part replaces 250000572. |
| 19 | 250001007 | Screw Torx M6.81 X 30 This part replaces 250000709. |
| 20 | 250200175 | Flat Washer 8 mm, Stainless This part replaces 250200011. |
| 21 | 250200114 | Sealing Washer |
| 24 | 269501943 | Elastic Nut Housing M8 |
| 27 | 270000933 | Strap Retaining |
| 28 | 270000988 | Strap Anchor This part replaces 270000953. |
| 30 | 219704356 | Was 275500008 Hose 12 mm |
| 33 | 275500499 | CHECK VALVE - Call your local BRP dealership |
| 36 | 277001881 | Cable Adaptor Ass'y |
| 41 | 275500446 | HOSE 6 MM - Call your local BRP dealership |
| 43 | 278003273 | BATTERY BASE ASS'Y - Call your local BRP dealership |
| 44 | 279000336 | Flat Washer This part replaces 279000164. |
| 49 | 291001386 | Black, Finition Plate |
| 50 | 292000933 | U-Clamp |
| 65a | 292001825 | Plastic Nut |
| 75 | 292001871 | RH Sponson This part replaces 292001426. |
| 75 | 292001872 | Sponson LH This part replaces 292001427. |
| 78 | 292001873 | RH Spacer Sponson This part replaces 292001428. |
| 78 | 292001874 | Spacer Sponson LH This part replaces 292001429. |
| 81 | XXX | Not Available As Spare Parts |
| 83 | XXX | Not Available As Spare Parts |
| 84 | XXX | Not Available As Spare Parts |
| 85 | 292001471 | Square Head Stud |
| 86 | XXX | Not Available As Spare Parts |
| 89 | 292001503 | Push Nut |
| 90 | XXX | Not Available As Spare Parts |
| 94 | 292001580 | Drain Ass'y |
| 94a | 292001825 | Plastic Nut |
| 97 | 292002022 | Plug Ass'y This part replaces 292001583. |
| 100 | 292001636 | Bailer Pick-up Ass'y |
| 106 | 292001663 | Flat Washer 8 mm, Nylon |
| 159 | XXX | Not Available As Spare Parts |
| 161 | 293150043 | Pop Rivet 3/16" |
| 162 | 293150123 | Pop Rivet 3/16" |
| 166 | 293450309 | Outer Hull Insert |
| 170 | 293450355 | HULL INSERT - Call your local BRP dealership |
| 172 | 293710152 | Fitting Elbow 90° |
| 173 | 293720029 | Grommet |
| 174 | 293730040 | Mount Dart |
| 176 | 293750001 | Tie Wrap 94 mm |
| 178 | 293750008 | Tie Wrap 368 mm |
| 179 | 414115200 | Tie-Rap 180 mm |
| 180 | 293750026 | Tie Rap Mount |
| 186 | 293830005 | Rubber Bumper |
