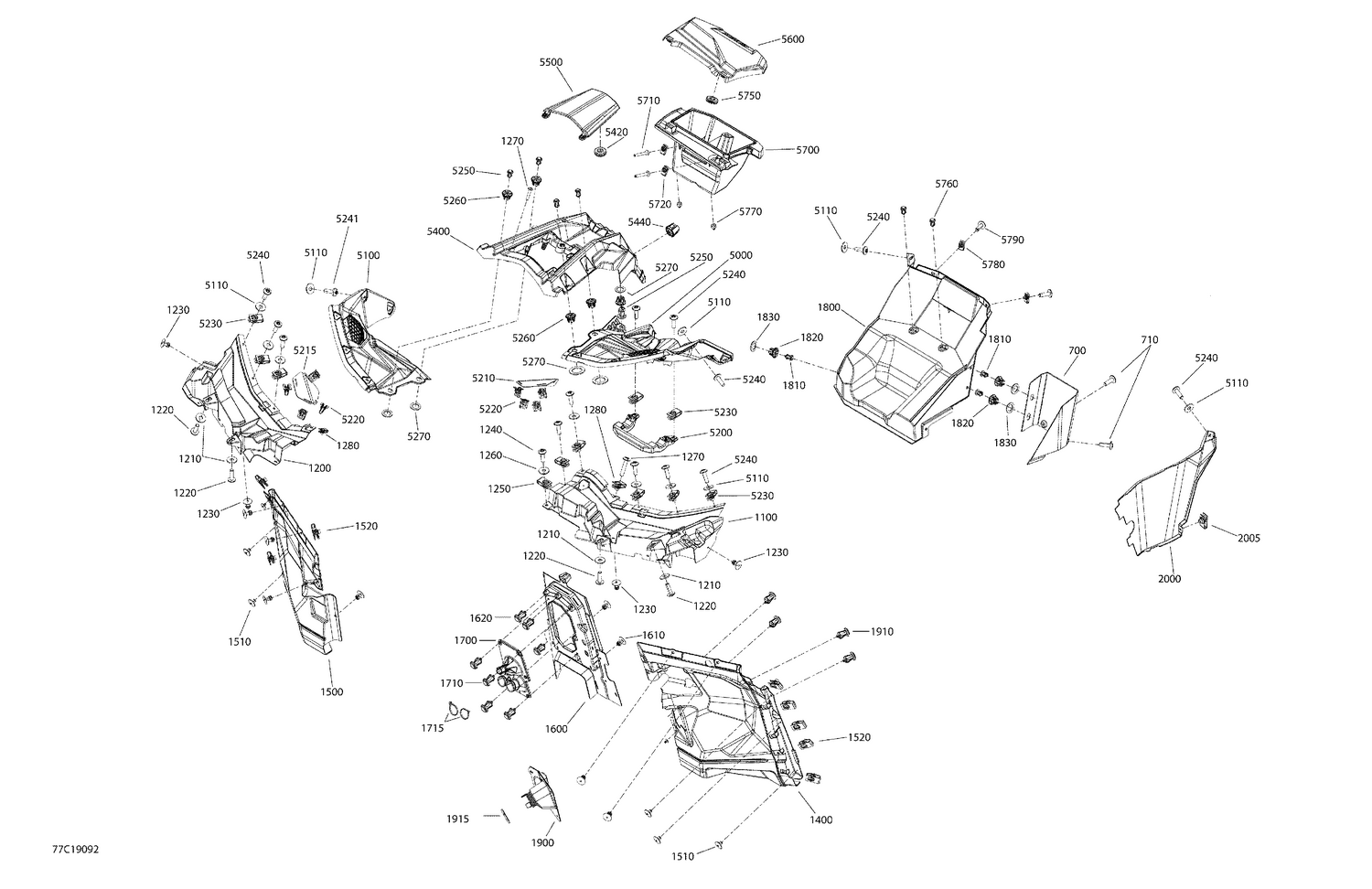

09- Cab Interior Maverick MAX - International - Front Upper Section
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 700 | 707900473 | Cover Central Console |
| 710 | 250000722 | Torx Screw M6 X 20 |
| 1100 | 707900337 | LH Front Upper Deflector |
| 1200 | 707900338 | RH Front Upper Deflector |
| 1210 | 234062670 | Stainless Steel Flat Washer |
| 1220 | 250000722 | Torx Screw M6 X 20 |
| 1230 | 293150104 | Pop Rivet 3/16" |
| 1240 | 250000722 | Torx Screw M6 X 20 |
| 1250 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1260 | 234062670 | Stainless Steel Flat Washer |
| 1270 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 1280 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1400 | 707901349 | Front Seperation Panel This part replaces 707900341. |
| 1500 | 707900931 | RH Front Bulkhead This part replaces 707900342. |
| 1510 | 293150104 | Pop Rivet 3/16" |
| 1520 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1600 | 707900407 | Front Bulkhead Panel |
| 1610 | 293150104 | Pop Rivet 3/16" |
| 1620 | 293150230 | Tuflok Plastic Rivet |
| 1700 | 707900701 | Grommet |
| 1710 | 293150230 | Tuflok Plastic Rivet |
| 1715 | 414115200 | Tie-Rap 180 mm |
| 1800 | 707900410 | RH Lower Dash Panel |
| 1810 | 293150230 | Tuflok Plastic Rivet |
| 1820 | 707900133 | Insert |
| 1830 | 503189273 | Washer |
| 1900 | 707900754 | Steering Column Cover This part replaces 707900427. |
| 1910 | 293150230 | Tuflok Plastic Rivet |
| 1915 | 293750008 | Tie Wrap 368 mm |
| 2000 | 707900477 | Side Panel Cover |
| 2005 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5000 | 715005326 | LH Dashboard Kit |
| 5100 | 707900698 | RH Dashboard |
| 5110 | 234062670 | Stainless Steel Flat Washer |
| 5200 | 707900479 | Dash Support |
| 5210 | 707900465 | LH Speaker Cover |
| 5215 | 707900590 | RH Speaker Cover |
| 5220 | 517302785 | Edge Clip |
| 5230 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5240 | 250000722 | Torx Screw M6 X 20 |
| 5241 | 250000712 | Torx Screw M6 X 20 |
| 5250 | 293150230 | Tuflok Plastic Rivet |
| 5260 | 707900133 | Insert |
| 5270 | 503189273 | Washer |
| 5400 | 707900700 | Dashboard Central |
| 5420 | 517303756 | Grommet |
| 5440 | 707900598 | Key Protector |
| 5500 | 707900400 | Dash Cover |
| 5600 | 715004067 | Glove Box Cover Kit |
| 5700 | 707900350 | Glove Box |
| 5710 | 250000868 | Torx Truss M6 X 50 |
| 5720 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5750 | 517303756 | Grommet |
| 5760 | 293150230 | Tuflok Plastic Rivet |
| 5770 | 293830005 | Rubber Bumper |
| 5780 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
