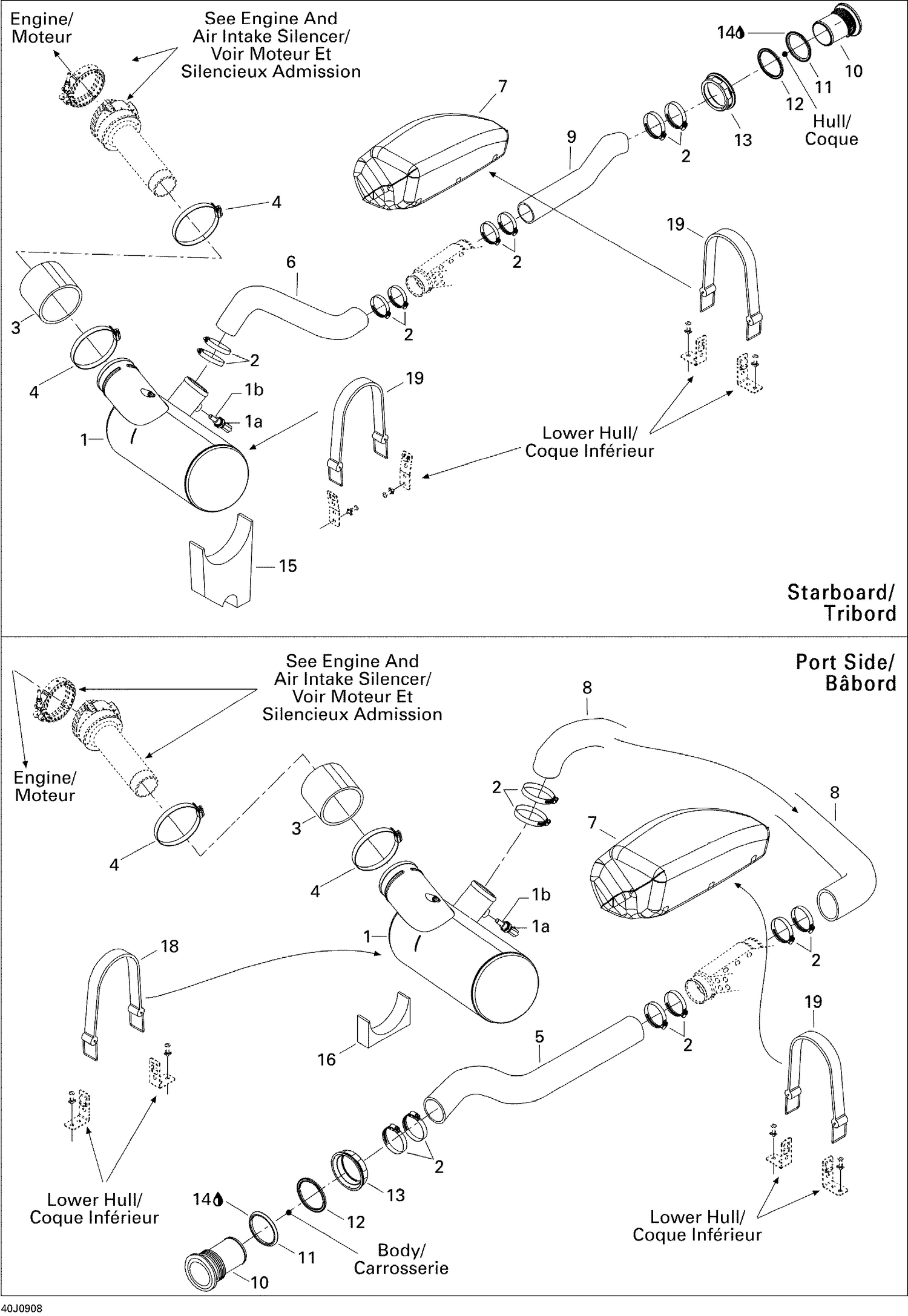

| Ref | Part Number | Description |
|---|
| 1 |
274001350 |
MUFFLER_EXHAUST - Call your local BRP dealership |
| 1a |
278002895 |
Temperature Sensor This part replaces 278001016. |
| 2 |
293650179 |
Tridon Clamp This part replaces 293650107. |
| 3 |
274001348 |
Hose |
| 4 |
293650202 |
Gear Clamp |
| 7 |
274001045 |
RH Resonator |
| 10 |
204340393 |
Exhaust Outlet |
| 11 |
293250041 |
GASKET - Call your local BRP dealership |
| 12 |
274000225 |
STABILIZING WASHER - Call your local BRP dealership |
| 13 |
274000224 |
Nut 72 mm |
| 14 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 15 |
204340507 |
MUFFLER SUPPORT - Call your local BRP dealership |
| 16 |
204340502 |
SUPPORT_EXHAUST - Call your local BRP dealership |
| 18 |
293850097 |
Retainer Strap |
